Main Control Valve Body: Assembly

NOTE: Do not stone or polish any valves. If the valves do not move freely during assembly, install a new valve body.

Install the valve body valves, springs and retaining clips in the main control valve body and lower valve body. See the VALVE BODY and LOWER VALVE BODY illustrations at the beginning of this procedure for valve and spring locations.

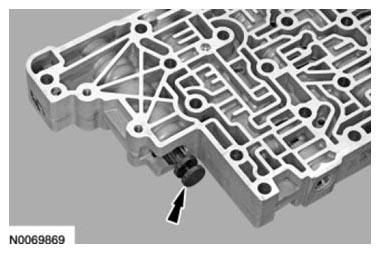

Install the manual valve in the valve body.

Fig 1: Locating Manual Valve
Courtesy of FORD MOTOR CO.

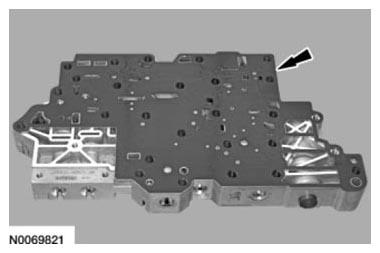

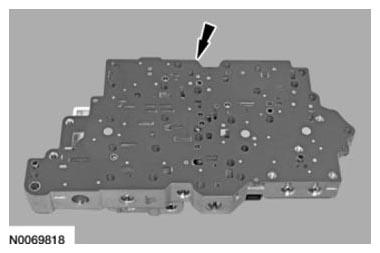

Position a new lower valve body separator plate and gasket on the main control valve body.

Fig 2: Locating Lower Valve Body Separator Plate And Gasket
Courtesy of FORD MOTOR CO.

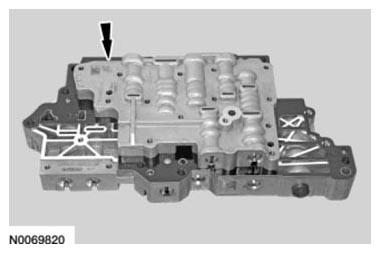

Position the lower valve body on the main control valve body.

Fig 3: Locating Lower Valve Body Assembly
Courtesy of FORD MOTOR CO.

NOTE: Install the check balls in the correct location as noted during disassembly.

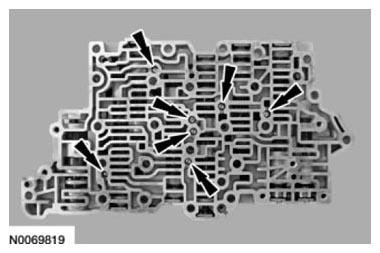

Fig 4: Locating Check Balls

Courtesy of FORD MOTOR CO.

Install the 7 check balls.
Install a new valve body separator plate and gasket.

Fig 5: View Of Valve Body Separator Plate And Gasket
Courtesy of FORD MOTOR CO.

NOTE: Install the different length bolts in the correct location as noted during disassembly.

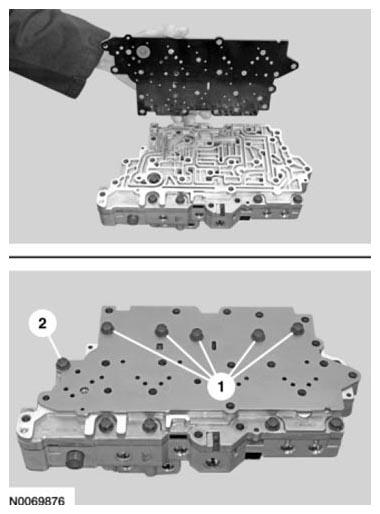

Install the transfer plate assembly and hand-tighten the 5 bolts.
1. 63 mm (2.48 in) bolts
2. 35 mm (1.377 in) bolts

  Fig 6: Installing Transfer Plate Assembly
  Courtesy of FORD MOTOR CO.

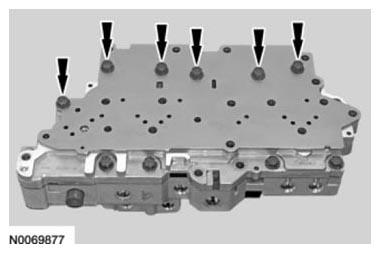

Tighten the 5 valve body bolts.
- Tighten to 12 Nm (106 lb-in).

  Fig 7: Locating Valve Body Bolts
  Courtesy of FORD MOTOR CO.

NOTE: Install the different length bolts in the correct location as noted during disassembly.

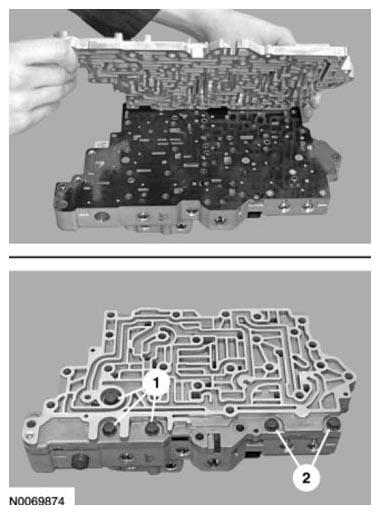

Install the transfer plate cover assembly and hand-tighten the 6 bolts.
1. 63 mm (2.48 in) bolts
2. 35 mm (1.377 in) bolts

  Fig 8: Installing Transfer Plate Cover Assembly
  Courtesy of FORD MOTOR CO.

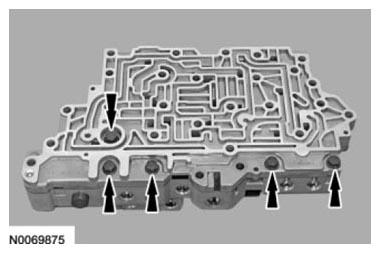

Tighten the 6 valve body bolts.
- Tighten to 12 Nm (106 lb-in).

  Fig 9: Locating Valve Body Bolts
  Courtesy of FORD MOTOR CO.
