Main Control Valve Body: Disassembly

NOTE: Note the location of the different length bolts for assembly.

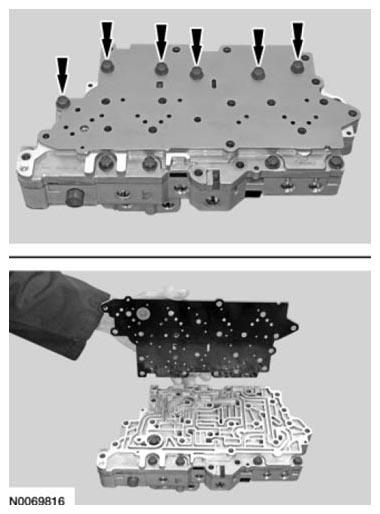

Fig 1: Locating Transfer Plate Cover Assembly Bolts

Courtesy of FORD MOTOR CO.

Remove the 6 bolts and the transfer plate cover assembly.

NOTE: Note the location of the different length bolts for assembly.

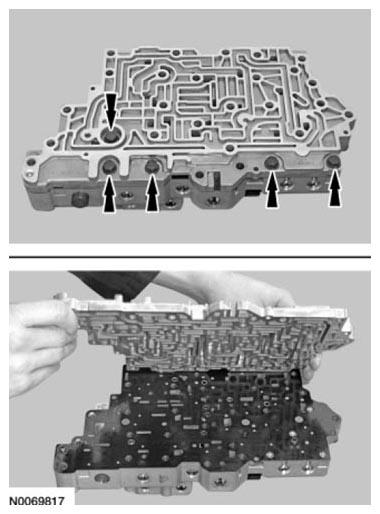

Fig 2: Locating Valve Body Bolts

Courtesy of FORD MOTOR CO.

Remove the 5 valve body bolts and the transfer plate assembly.
Remove and discard the valve body separator plate.

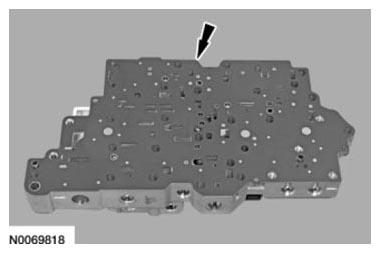

Fig 3: View Of Valve Body Separator Plate And Gasket
Courtesy of FORD MOTOR CO.

NOTE: Note the location of the check balls for assembly.

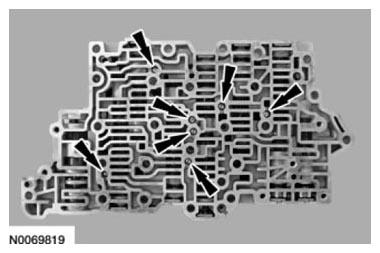

Fig 4: Locating Check Balls

Courtesy of FORD MOTOR CO.

Remove the 7 check balls from the valve body.
Remove the lower valve body assembly.

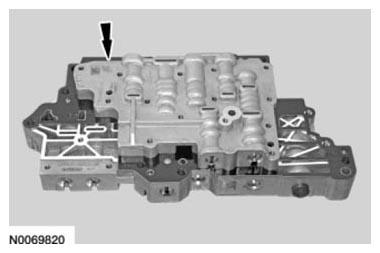

Fig 5: Locating Lower Valve Body Assembly
Courtesy of FORD MOTOR CO.
Remove and discard the lower valve body separator plate and gasket.

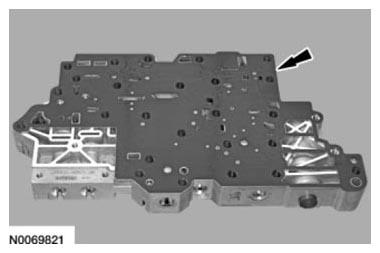

Fig 6: Locating Lower Valve Body Separator Plate And Gasket
Courtesy of FORD MOTOR CO.
Remove the manual valve from the valve body.

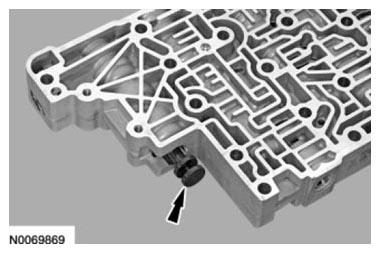

Fig 7: Locating Manual Valve
Courtesy of FORD MOTOR CO.

NOTE: Remove the valves by tapping the valve body on the palm of the hand to slide the valves out of the bores. It may be necessary to remove the valves and springs using a pick. If it is necessary to use a pick, use extreme caution to prevent damaging the valves or valve bores. If necessary, disassemble parts of the main control valve body in small groups. Take special care when handling the main control components, since they are the most precise and delicate parts of the transaxle. Neatly arrange the parts as they are removed to avoid mixing similar pieces.

NOTE: Do not stone or polish any valves. If the valves do not move freely, install a new assembly.

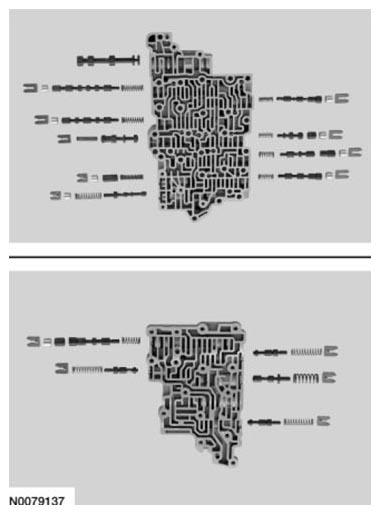

Fig 8: Identifying Valve And Spring

Courtesy of FORD MOTOR CO.

Remove the individual valves and springs from the main control valve body and lower valve body by removing the retaining clips. See the VALVE BODY and LOWER VALVE BODY illustrations at the beginning of this procedure for valve and spring locations. Clean valves, springs, main control valve body and lower valve body.
