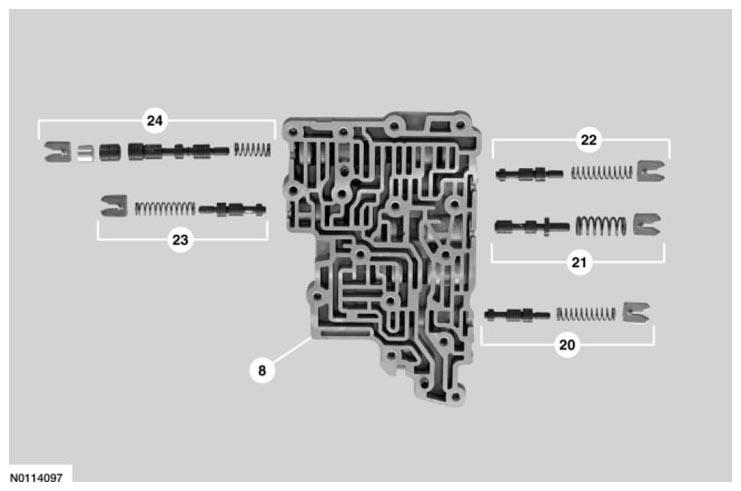

Lower Valve Body
ITEM DESCRIPTION CHART
| Item | Description |
|---|---|
| 1 | Bolts - M6 x 63 |
| 2 | Bolts - M6 x 35 |
| 3 | Cover - transfer plate |
| 4 | Case-to-valve body transfer plate |
| 5 | Separator plate - valve body-to-transfer plate |
| 6 | Main control valve body |
| 7 | Separator plate - main control valve body-to-lower valve body |
| 8 | Lower valve body assembly |
| 9 | Check balls |
| 10 | Low/reverse and overdrive clutch regulator valve assembly |
| 11 | Torque Converter Clutch (TCC) regulator apply valve assembly |
| 12 | Intermediate clutch regulator valve assembly |
| 13 | Direct clutch regulator valve assembly |
| 14 | Pressure regulator valve assembly |
| 15 | Isolator valve assembly |
| 16 | TCC control valve assembly |
| 17 | Multiplex manual valve assembly |
| 18 | Multiplex shift valve assembly |
| 19 | Manual valve |
| 20 | Direct clutch boost valve assembly |
| 21 | Solenoid regulator valve assembly |
| 22 | Low/reverse and overdrive clutch boost valve assembly |
| 23 | Forward clutch boost valve assembly |
| 24 | Forward clutch regulator valve assembly |
