Transfer Shaft and Gear: Assembly

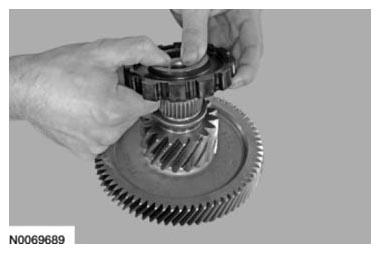

  1. Install the park pawl wheel on the transfer shaft.
    Fig 1: Installing Park Pawl Wheel Transfer Shaft
    G07467851Courtesy of FORD MOTOR CO.
  2. Using the Differential Bearing Installer and Guide 307-587 (307-587/2 and 307-587/3) and a press, install new transfer shaft bearings on the transfer shaft assembly.
    Fig 2: Installing Transfer Shaft Bearings On Transfer Shaft Assembly
    G07467852Courtesy of FORD MOTOR CO.
