Transfer Shaft and Gear: Disassembly

  1. Inspect the transfer shaft bearings for damage or excessive wear. Install new if necessary.

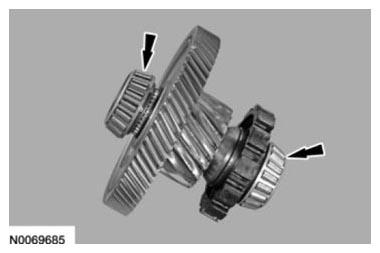

    Fig 1: Inspecting Transfer Shaft Bearings
    G07467847Courtesy of FORD MOTOR CO.
  2. Install the Bearing Puller 205-D064 on the bearing.

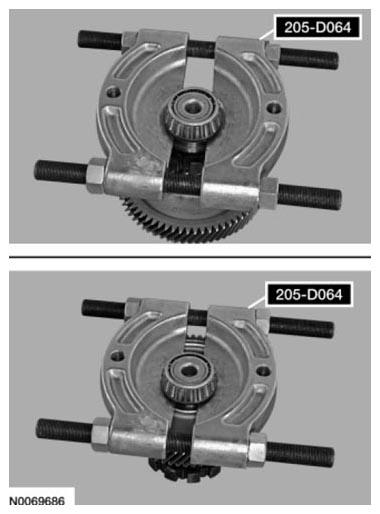

    Fig 2: Installing Puller 205-D064 On Bearing
    G07467848Courtesy of FORD MOTOR CO.
  3. Using a suitable press, remove bearings from the transfer shaft assembly.

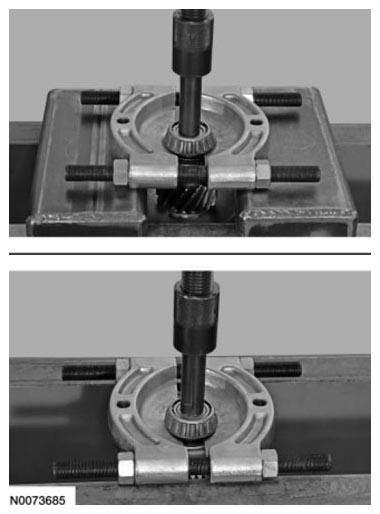

    Fig 3: Removing Bearings From Transfer Shaft Assembly
    G07467849Courtesy of FORD MOTOR CO.
  4. Inspect the transfer shaft assembly for damage.
    1. Inspect the park pawl wheel for damage and install new, if necessary.
    2. Inspect the transfer shaft and transfer shaft input gear for damage and install new, if necessary.

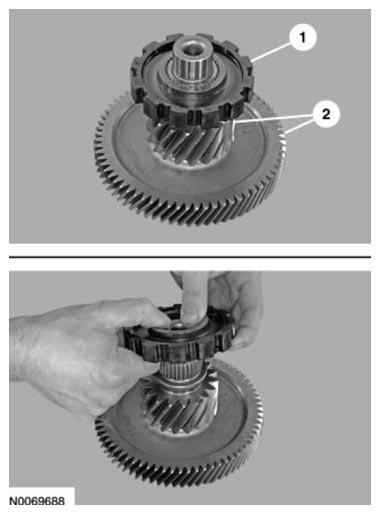

      Fig 4: Inspecting Transfer Shaft Assembly
      G07467850Courtesy of FORD MOTOR CO.
