Special Tool(s)

SPECIAL TOOL DESCRIPTION

G07467470Courtesy of FORD MOTOR CO.
 Manual Lever Retaining Pin Installer
307-592

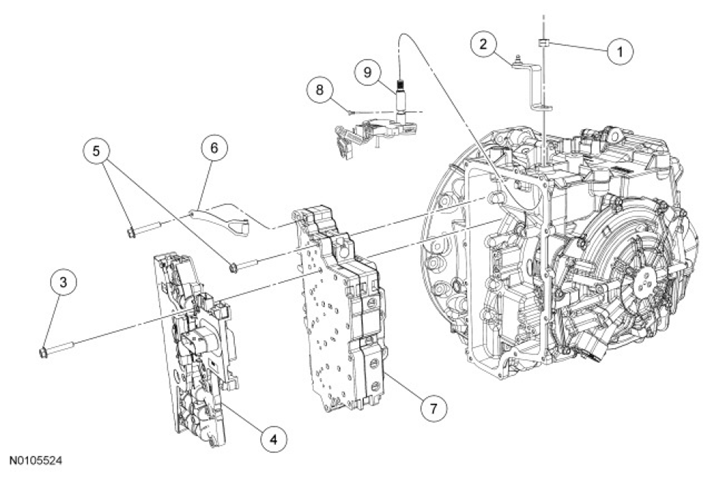

Fig 1: Identifying Digital Transmission Range Sensor Components
G07467471Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 W711892 Manual lever nut
2 7A256 Manual lever
3 7J291 Bolt - solenoid body
4 7Z369 Solenoid body
5 7J291 Bolts - valve body
6 7E332 Manual valve detent spring
7 7A100 Valve body
8 7B210 Transmission Range (TR) sensor pin
9 7H557 TR  sensor
