Main Control Cover - 3.5L: Material

MATERIAL SPECIFICATIONS CHART

Item Specification
Motorcraft® MERCON®LV Automatic Transmission Fluid
XT-10-QLVC		 MERCON®LV

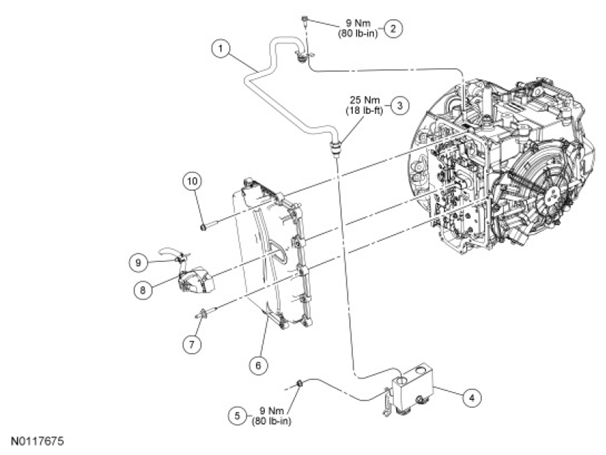

Fig 1: Main Control Cover Replacement Components With Torque Specifications - 3.5L
G07467576Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 7H420 Tube - transmission fluid cooler
2 W711538 Bolt - transmission fluid cooler tube
3 - Nut - transmission fluid cooler tube (part of 7H420)
4 7H322 Valve - transmission fluid cooler thermal bypass
5 W520101 Nut - transmission fluid cooler thermal bypass valve
6 7G004 Cover - main control
7 W708442 Studbolt - main control cover (3 required)
8 7A488 Connector - transaxle harness
9 14A169 Retainer - transaxle harness
10 7J289 Bolt - main control cover (11 required)
