Solenoid Body Assembly: Installation

    NOTE: Do not handle the solenoid body in the leadframe area or by the screens of the solenoid body filter or damage to the solenoid body may occur.
    NOTE: Use care not to break the alignment tabs when installing the solenoid body filter. Damage to the transaxle will occur if the solenoid body is not correctly aligned.
    NOTE: Make sure that the filter passage areas are clean of foreign material before installing the filter. Damage to the transaxle will occur if the filter passages are not clean.

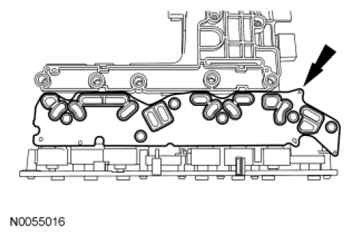

    Fig 1: Locating Solenoid Body Filter Assembly
    G07467569Courtesy of FORD MOTOR CO.
  1. Install a new solenoid body filter assembly by pushing it straight down on to the alignment tabs.
    2. NOTE: Make sure not to pinch the Turbine Shaft Speed (TSS), Output Shaft Speed (OSS) or Transmission Range (TR) sensor wiring harnesses when installing the solenoid body. Damage to the wiring harness will occur.
    NOTE: Install the different length bolts in the locations noted during disassembly.
  2. Install the solenoid body and the 11 bolts.
    1. 42 mm (1.653 in) bolt
    2. 63 mm (2.48 in) bolts
    3. 80 mm (3.149 in) bolts
    4. 95 mm (3.74 in) bolts

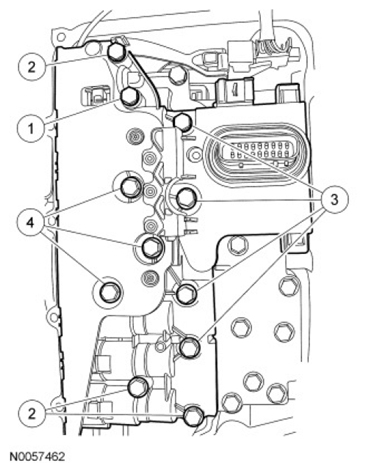

      Fig 2: Identifying Solenoid Body Bolts Tightening Sequence
      G07467570Courtesy of FORD MOTOR CO.
  3. Tighten the solenoid body bolts in the sequence shown in illustration.
    • Tighten to 12 Nm (106 lb-in).

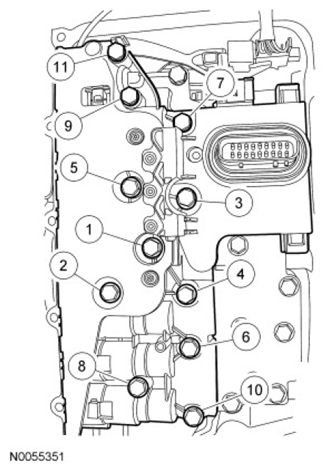

      Fig 3: Identifying Solenoid Body Bolts Tightening Sequence
      G07467571Courtesy of FORD MOTOR CO.
  4. Route the OSS  sensor wiring harness and connect the electrical connector.

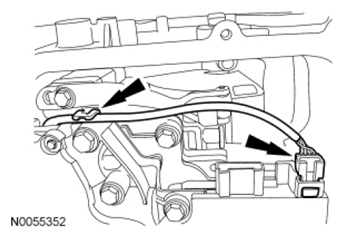

    Fig 4: Locating OSS Sensor Wiring Harness And Electrical Connector
    G07467572Courtesy of FORD MOTOR CO.
  5. Connect the TR  sensor electrical connector.
    1. Connect the electrical connector.
    2. Slide the locking tab over.
      Fig 5: Identifying TR Sensor Electrical Connector And Locking Tab Cover
      G07467573Courtesy of FORD MOTOR CO.
  6. Connect the TSS  sensor electrical connector.
    Fig 6: Locating TSS Sensor Electrical Connector
    G07467574Courtesy of FORD MOTOR CO.
  7. Wipe the surface of the existing solenoid body strategy tag on top of the transaxle case clean and install the new solenoid body strategy tag (supplied with the solenoid body service kit) over it.

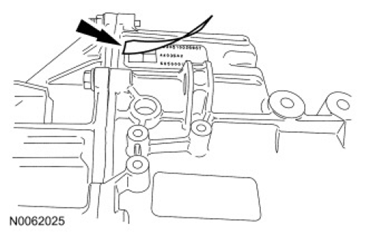

    Fig 7: Locating Solenoid Body Strategy Tag
    G07467575Courtesy of FORD MOTOR CO.
  8. Install the main control cover.
  9. Download a new solenoid body strategy to the PCM. For additional information, refer to SOLENOID BODY STRATEGY in this service information.
