Turbine Shaft Speed (TSS) Sensor: Notes

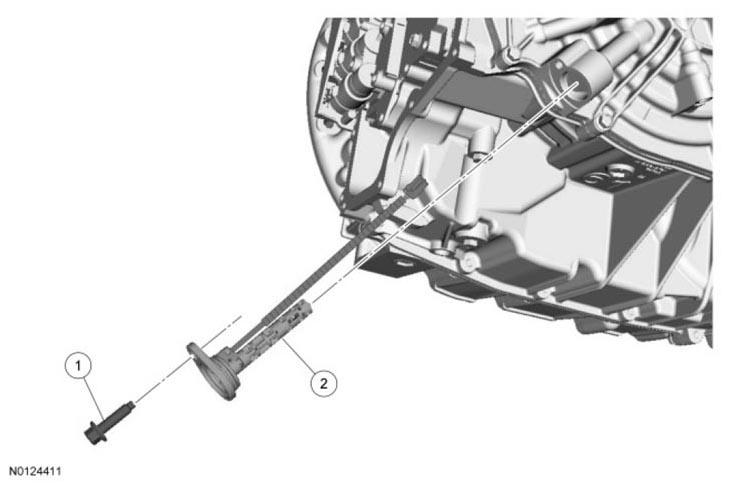

Fig 1: Identifying Turbine Shaft Speed Sensor Components
G07467429Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 7J356 Turbine Shaft Speed (TSS) sensor bolt
2 7M101 TSS  sensor
