Final Drive Gearset Exploded View

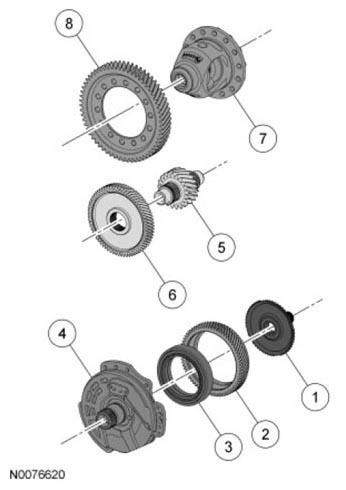

Fig 1: Exploded View Of Final Drive Gearset Components
G07467246Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 7B067 Front planetary carrier hub
2 7F342 Transfer shaft drive gear
3 7A452 Transfer shaft drive gear bearing
4 7F363 Stator support assembly
5 7H346 Transfer shaft
6 7H349 Transfer gear
7 4207 Differential assembly
8 7F343 Differential ring gear
