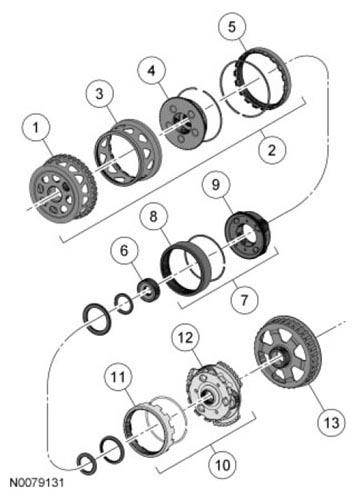

Planetary Gearset Exploded View
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 7D064 | Gear and shell assembly - front sun |
| 2 | 7D491 | Front planetary carrier/rear planetary ring gear assembly |
| 3 | 7M022 | Planetary carrier shell - front |
| 4 | 7N470 | Carrier - front planetary |
| 5 | 7L487 | Ring gear - rear planetary |
| 6 | 7D063 | Gear - center planetary sun |
| 7 | 7D491 | Center planetary carrier/front ring gear assembly |
| 8 | 7A153 | Ring gear - front planetary |
| 9 | 7D055 | Planetary carrier assembly - center |
| 10 | 7D491 | Rear planetary carrier/center ring gear assembly |
