Windshield Washer Switch: Service and Repair

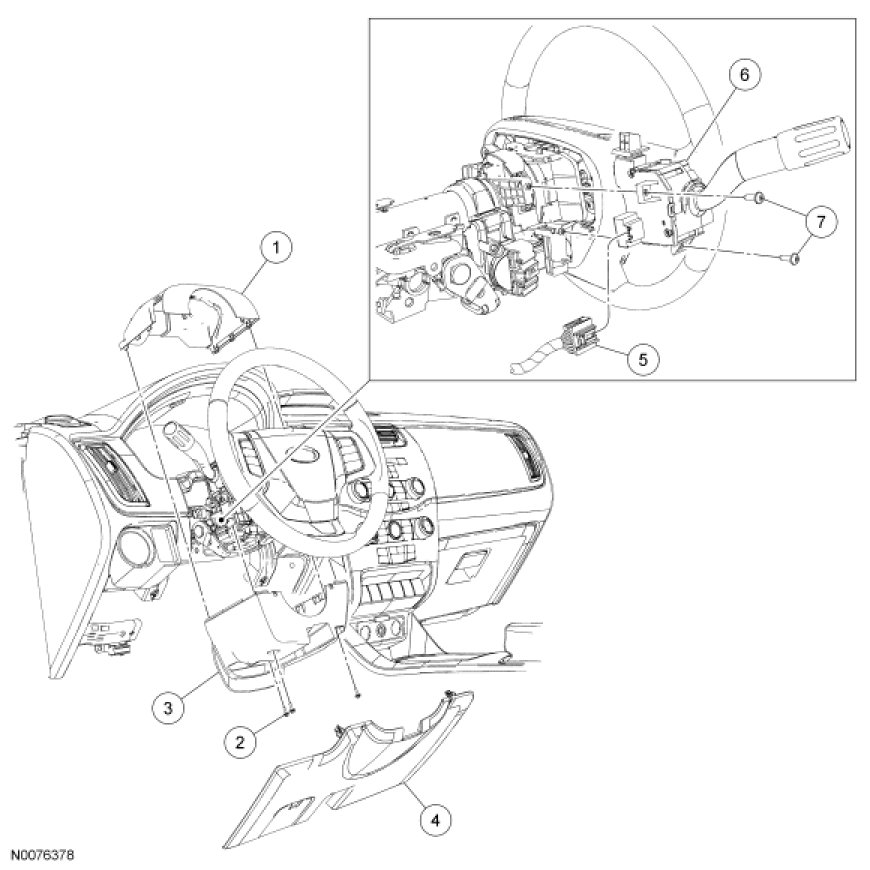

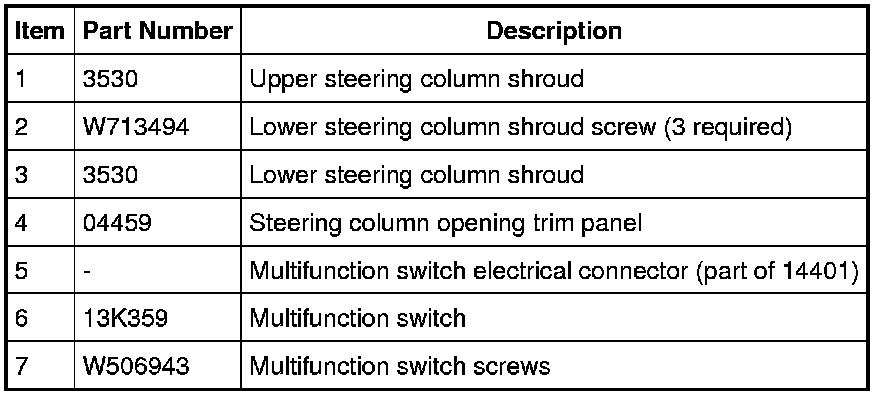

Steering Column Multifunction Switch









Removal and Installation

All vehicles

1. Remove the steering column opening trim panel.
- Pull outward at the top of the trim panel to release the upper retainers.

- Carefully pull upward and outward on the bottom of the trim panel to release the lower retainers located at the bottom corners of the trim panel.





Vehicles with tilt steering column

2. Release the steering column tilt lever.

All vehicles

3. Remove the 3 screws and the upper and lower steering column shrouds.
- Press inward on the sides of the upper shroud and pull up to separate it from the lower shroud.

4. Disconnect the multifunction switch electrical connector.

5. Remove the 2 multifunction switch screws and the multifunction switch.

6. To install, reverse the removal procedure.
