Steering Column: Notes

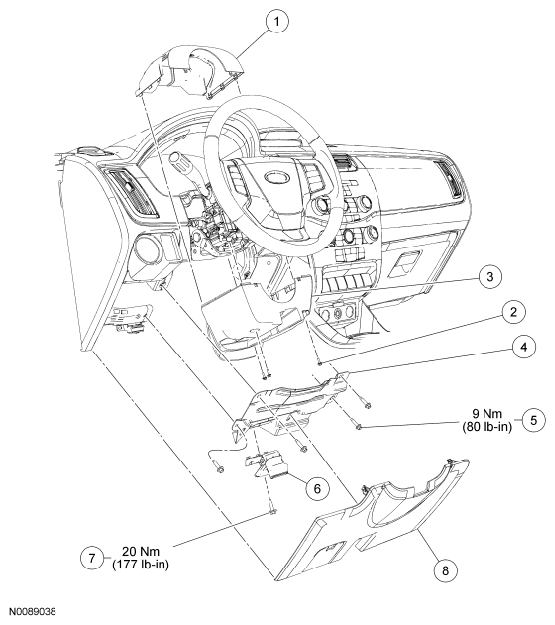

Fig 1: Exploded View Of Steering Column Shroud With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3530	Upper steering column shroud
2	W713494	Lower steering column shroud screw (3 required)
3	3530	Lower steering column shroud
4	54017A28	Steering column opening reinforcement
5	W701928	Steering column opening reinforcement bolt (4 required)
6	16916	Hood release handle and cable
7	W505424	Hood release handle bolt
8	5404459	Steering column opening trim panel

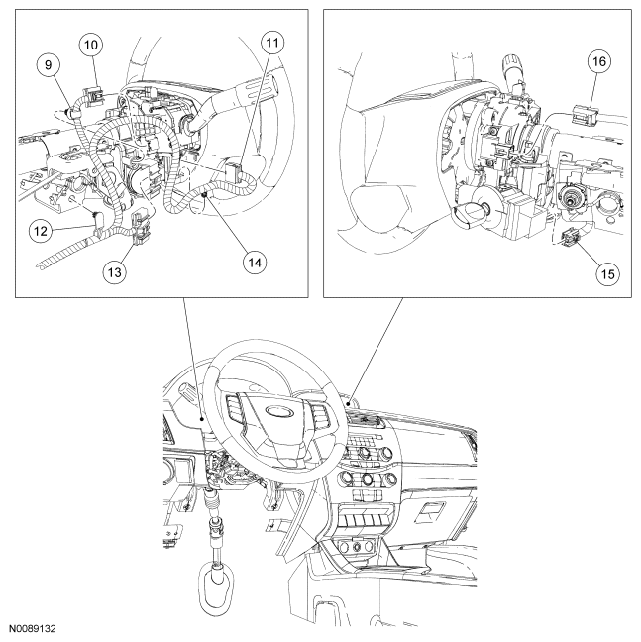

Fig 2: Steering Column Connectors And Retainers

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
9	-	Wiring harness retainer (part of 14401)
10	-	Multifunction switch electrical connector (part of 14401)
11	-	Clockspring electrical connector (part of 14401)
12	-	Wiring harness retainer (part of 14401)
13	-	Ignition switch electrical connector (part of 14401)
14	-	Wiring harness retainer (part of 14401)
15	-	Passive Anti-Theft System (PATS) transceiver electrical connector (part of 14401)
16	-	Steering wheel rotation sensor electrical connector (part of 14401)

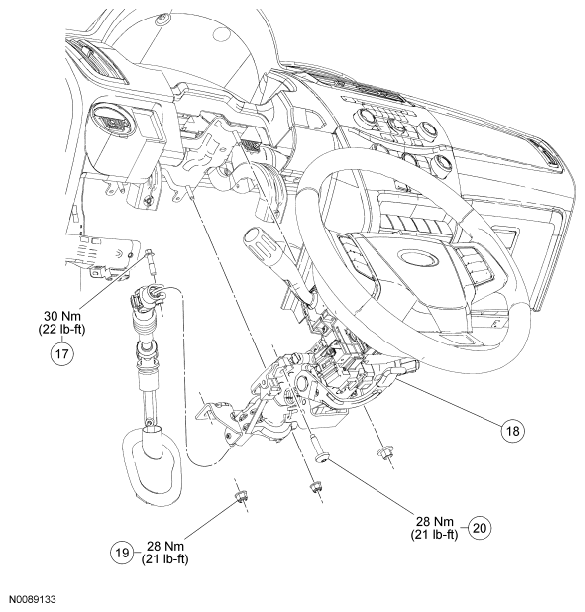

Fig 3: Exploded View Of Steering Column With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
17	W712882	Upper steering column shaft-to-steering column bolt
18	3C529	Steering column
19	N806423	Steering column nut (3 required)
20	W712250	Steering column bolt
