Passive Anti-Theft Transceiver Module Connector - C252

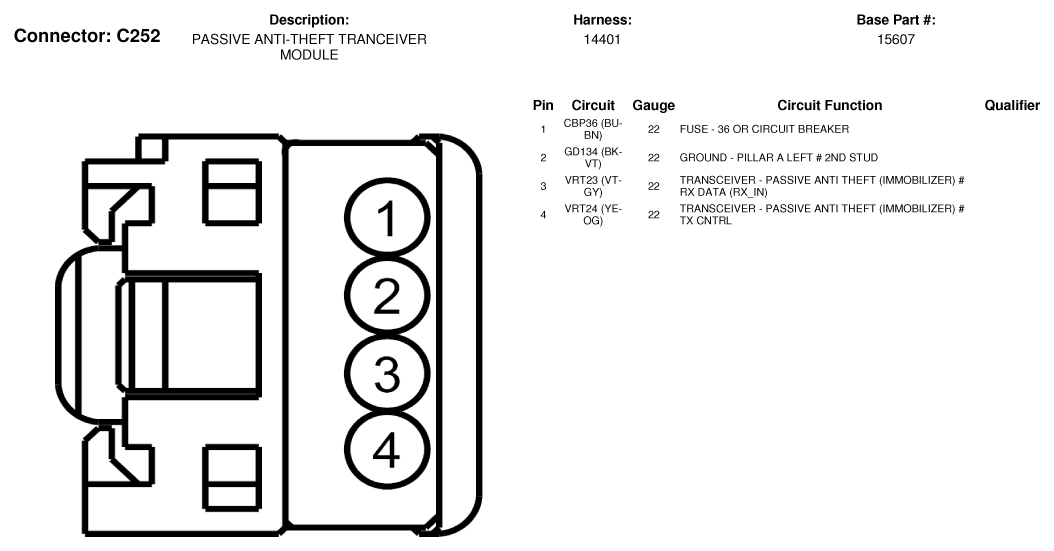

Fig 1: Passive Anti-Theft Transceiver Module Connector End View (C252)
G07335302Courtesy of FORD MOTOR CO.
