Piston Diameter

NOTE: Refer to the appropriate ENGINE MECHANICAL - 2.0L article for the specification.
  1. Measure the piston diameter 90 degrees from the piston pin and 42 mm (1.65 in) down from the top of the piston at the point indicated.

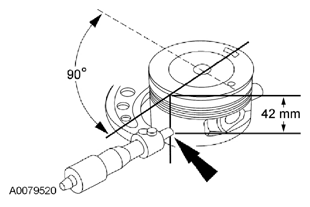

Fig 1: Measuring Piston Diameter
G07802729Courtesy of FORD MOTOR CO.
