Piston Pin Diameter

NOTE: Refer to the appropriate ENGINE MECHANICAL - 2.0L article for the specification.

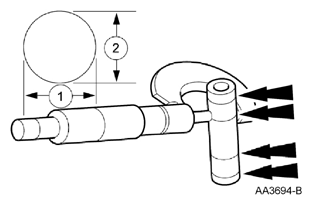

  1. Measure the piston pin diameter in 2 directions at the points shown in the illustration. Verify the diameter is within specification.
    Fig 1: Measuring Piston Pin Diameter
    G07802738Courtesy of FORD MOTOR CO.
