Selector Lever: Notes

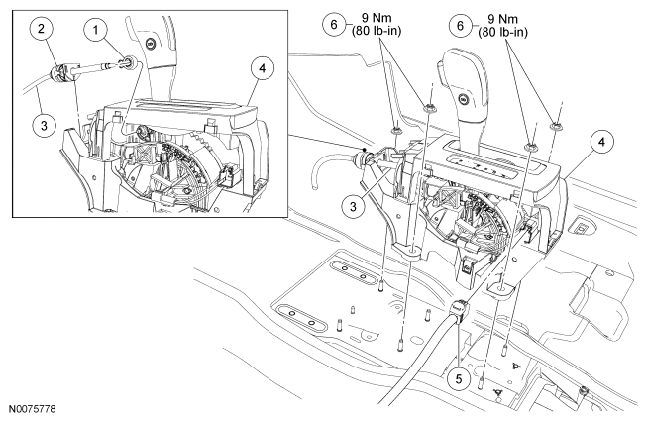

Fig 1: Exploded View Of Selector Lever With Torque Specifications
G06440221Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Selector lever cable eyelet (part of 7E395)
2 - Selector lever cable retainer (part of 7E395)
3 7E395 Selector lever cable
4 7K004 Selector lever assembly
5 14489 Selector lever electrical connector
6 W702751 Selector lever nuts
