Valve Spring Installed Length

NOTE: Refer to the appropriate ENGINE MECHANICAL - 2.0L article for the specification.
  1. Measure the installed length of each valve spring.

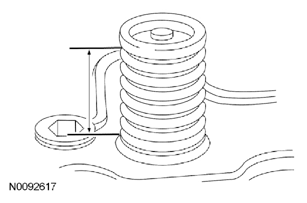

Fig 1: Length Of Valve Spring
G07802758Courtesy of FORD MOTOR CO.
