Connector Locations

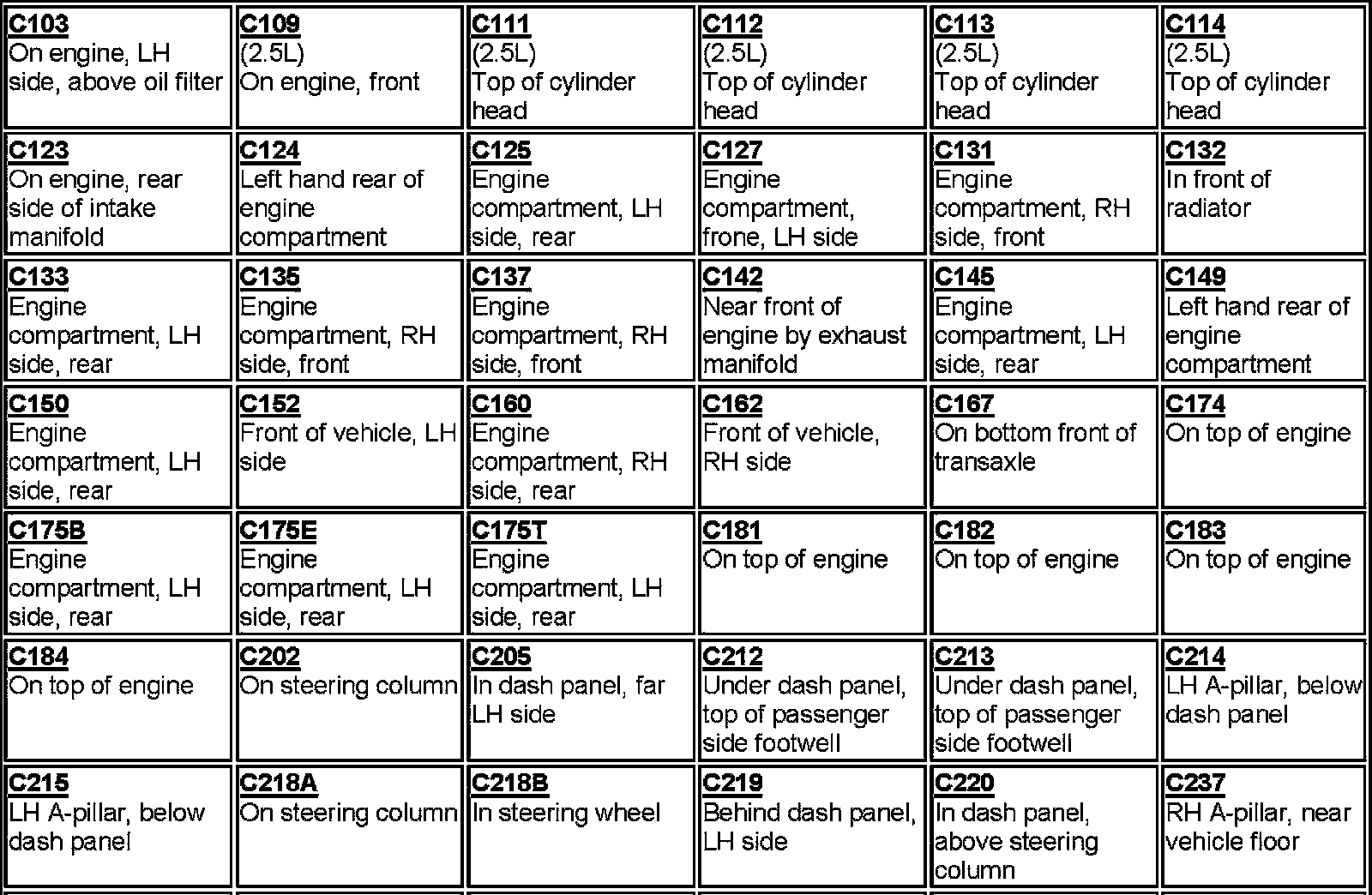

C103-C237:

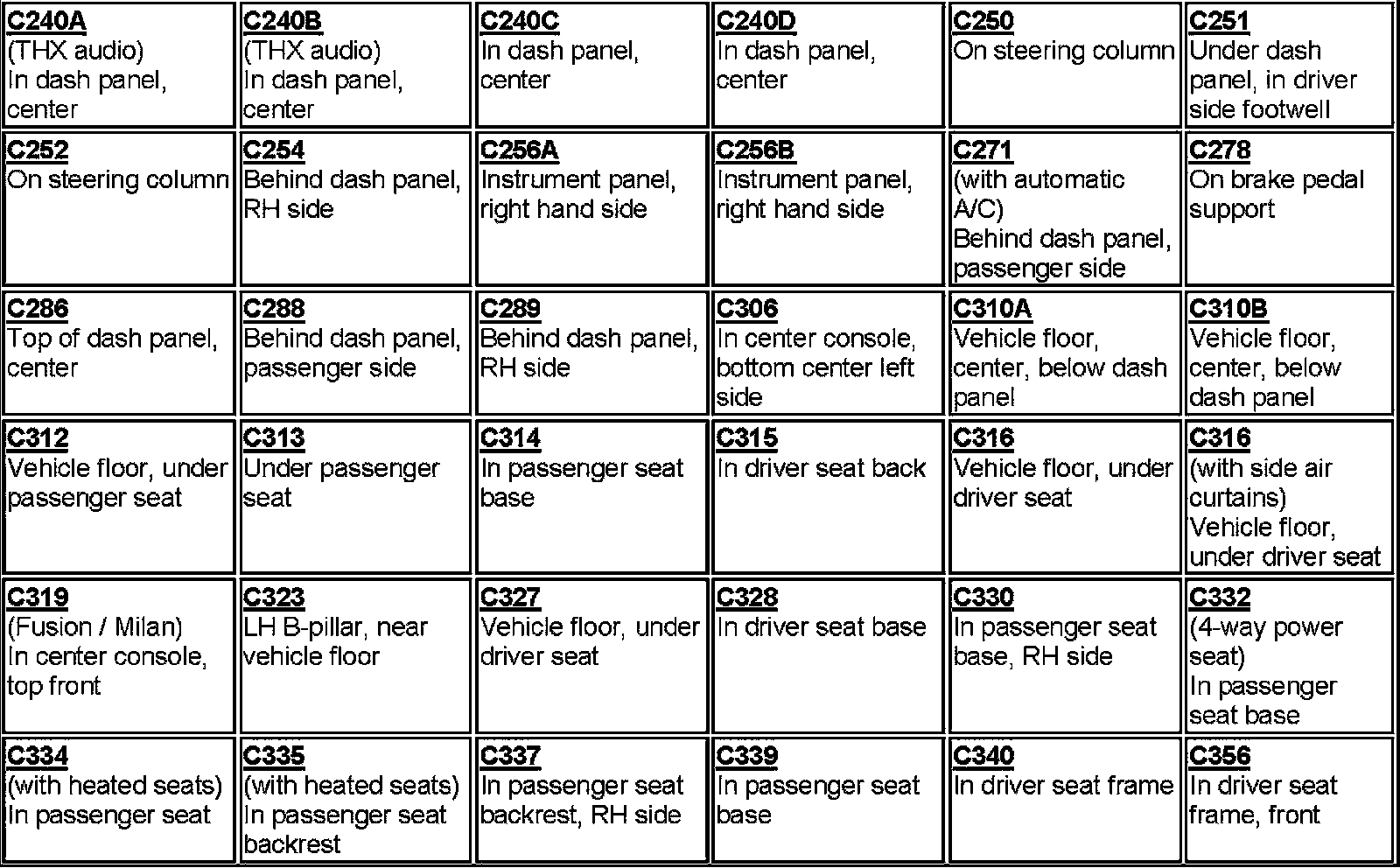

C240A-C356:

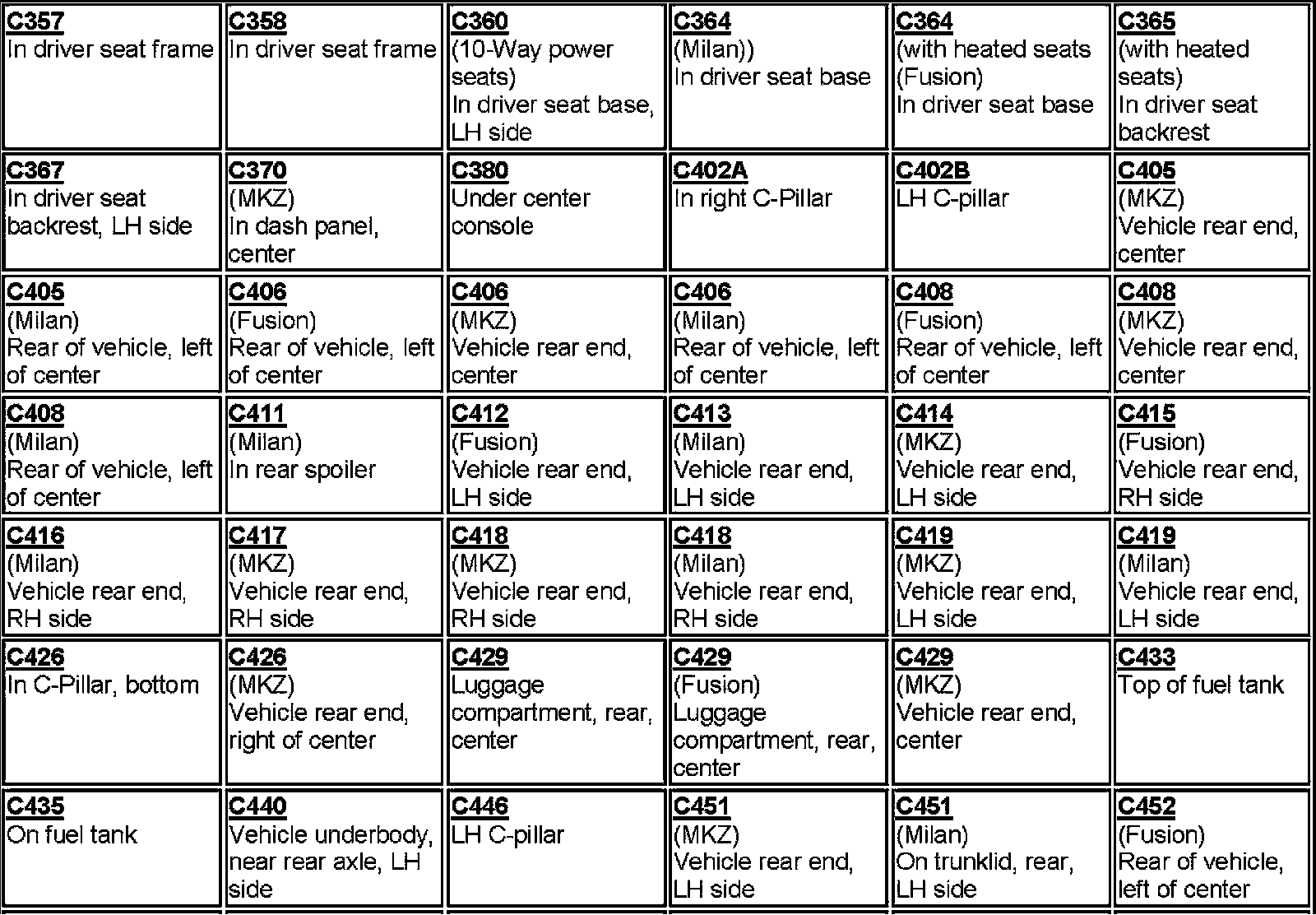

C357-C452:

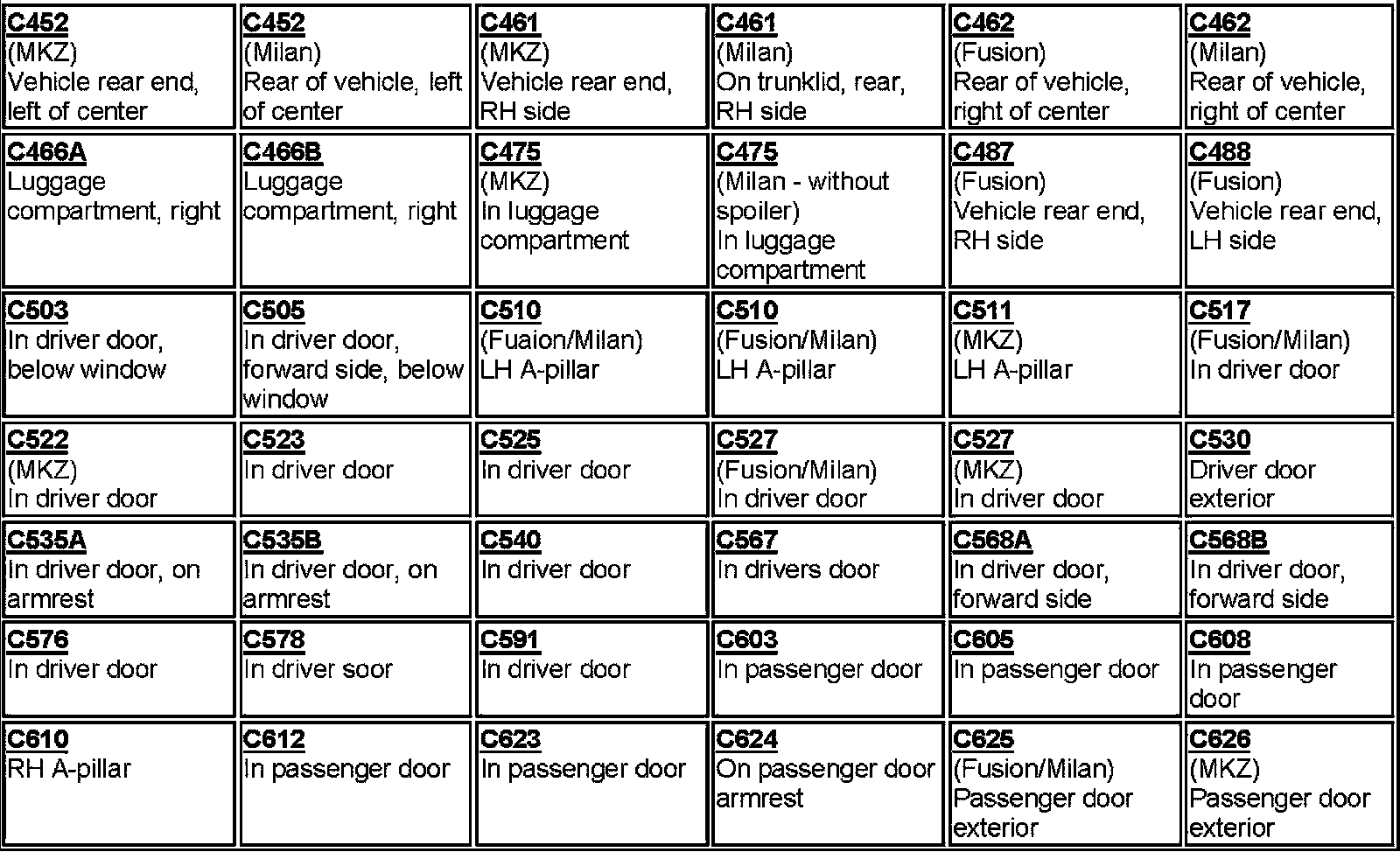

C452-C626:

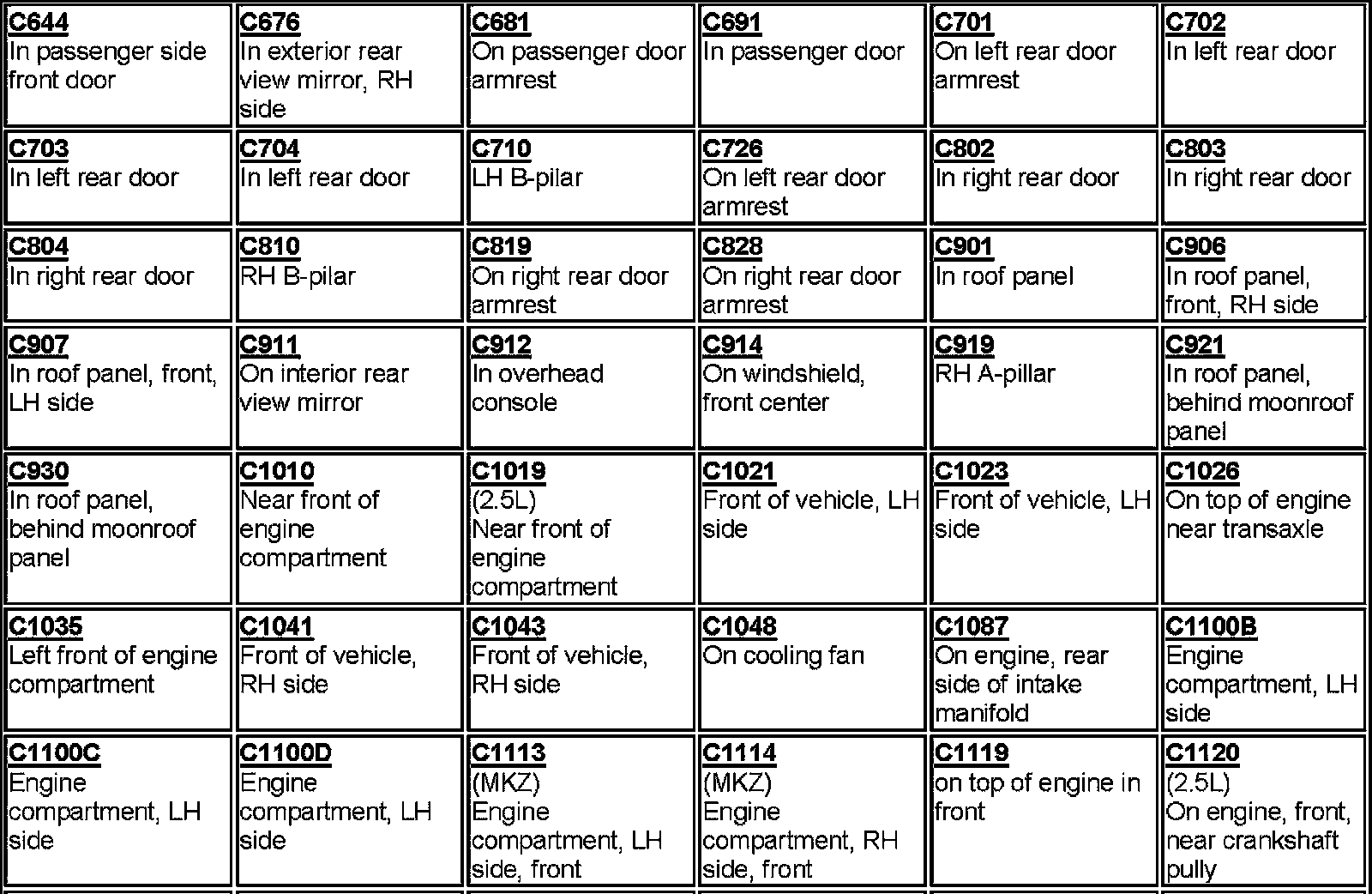

C644-C1120:

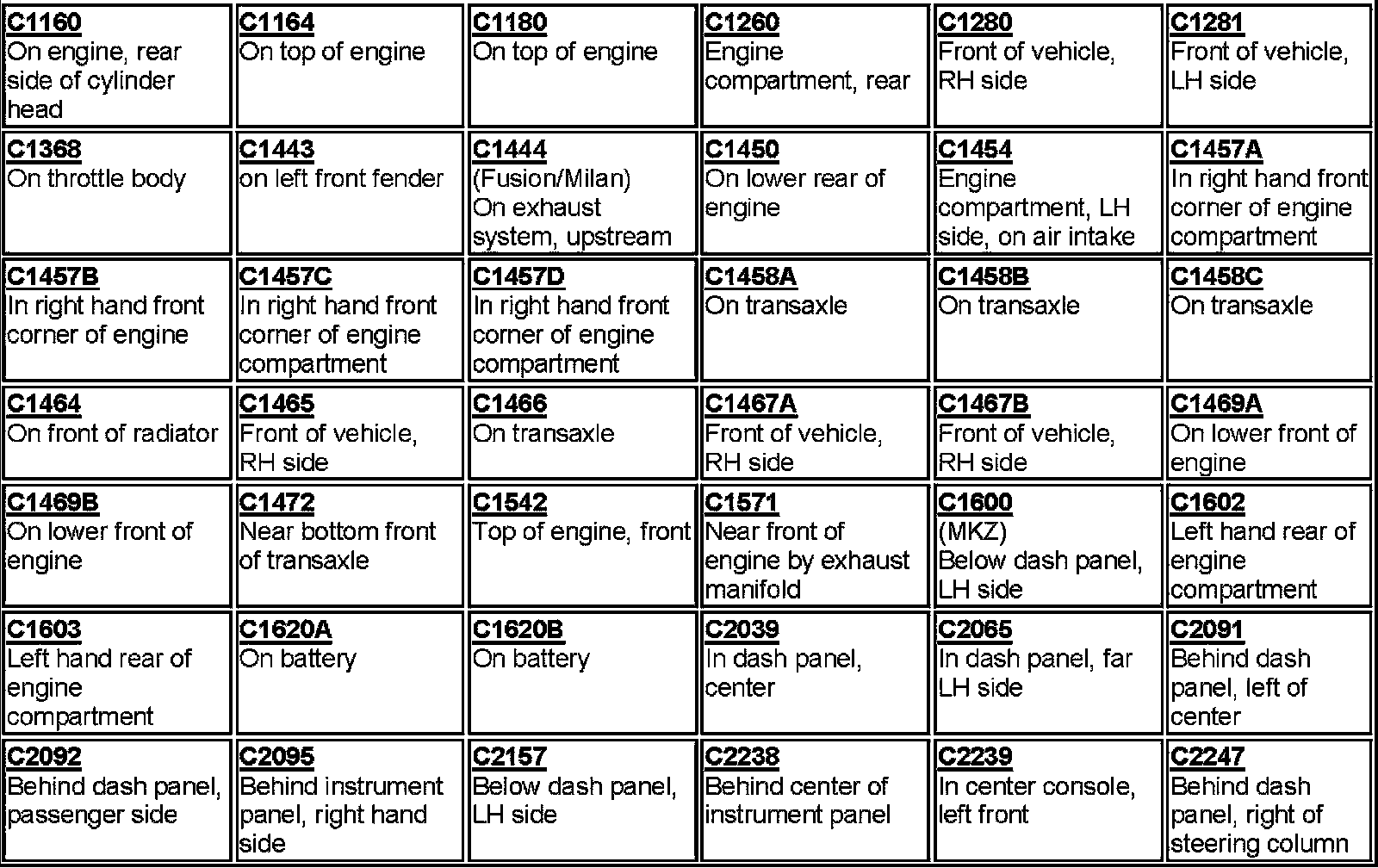

C1160-C2247:

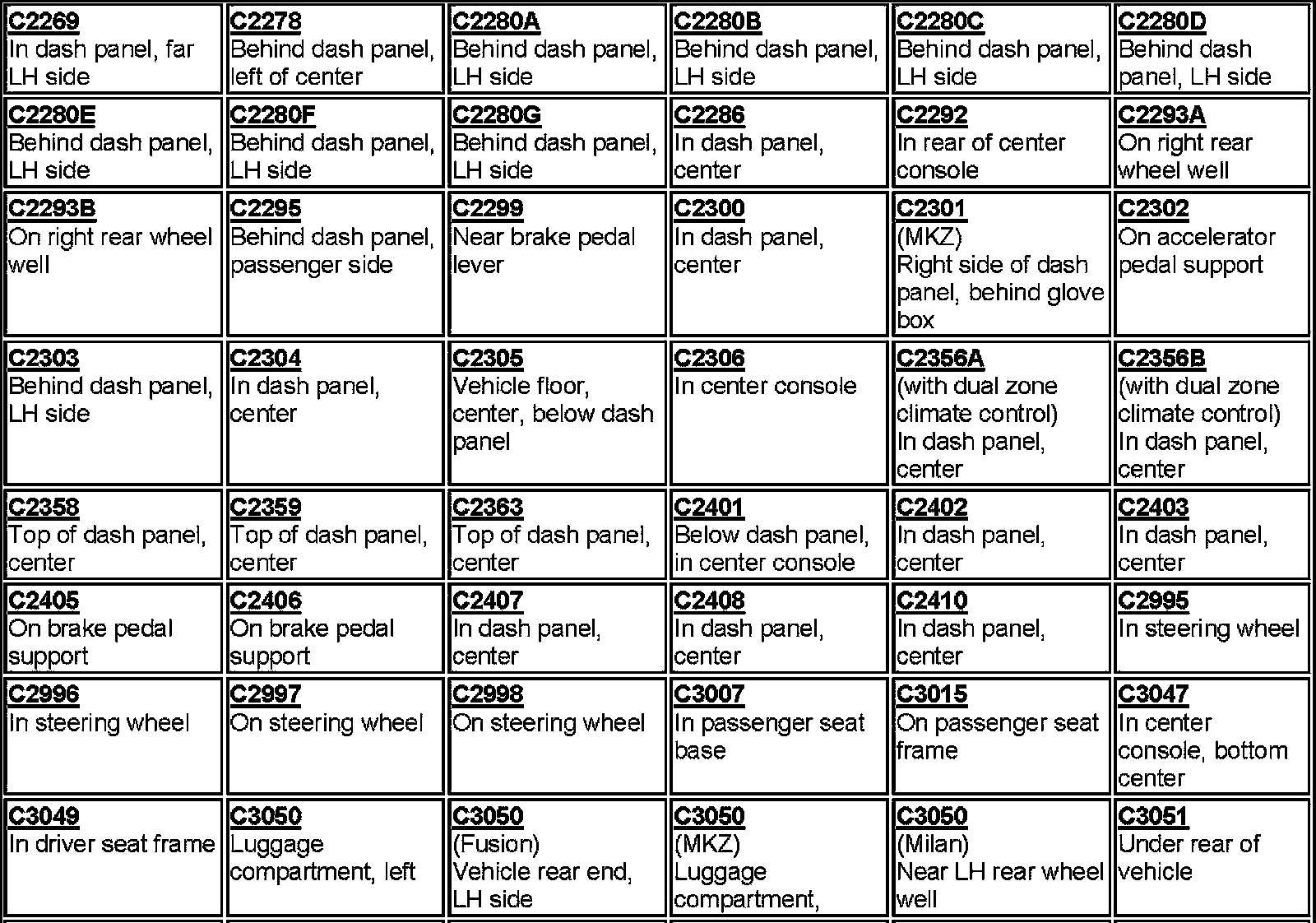

C2269-C3051:

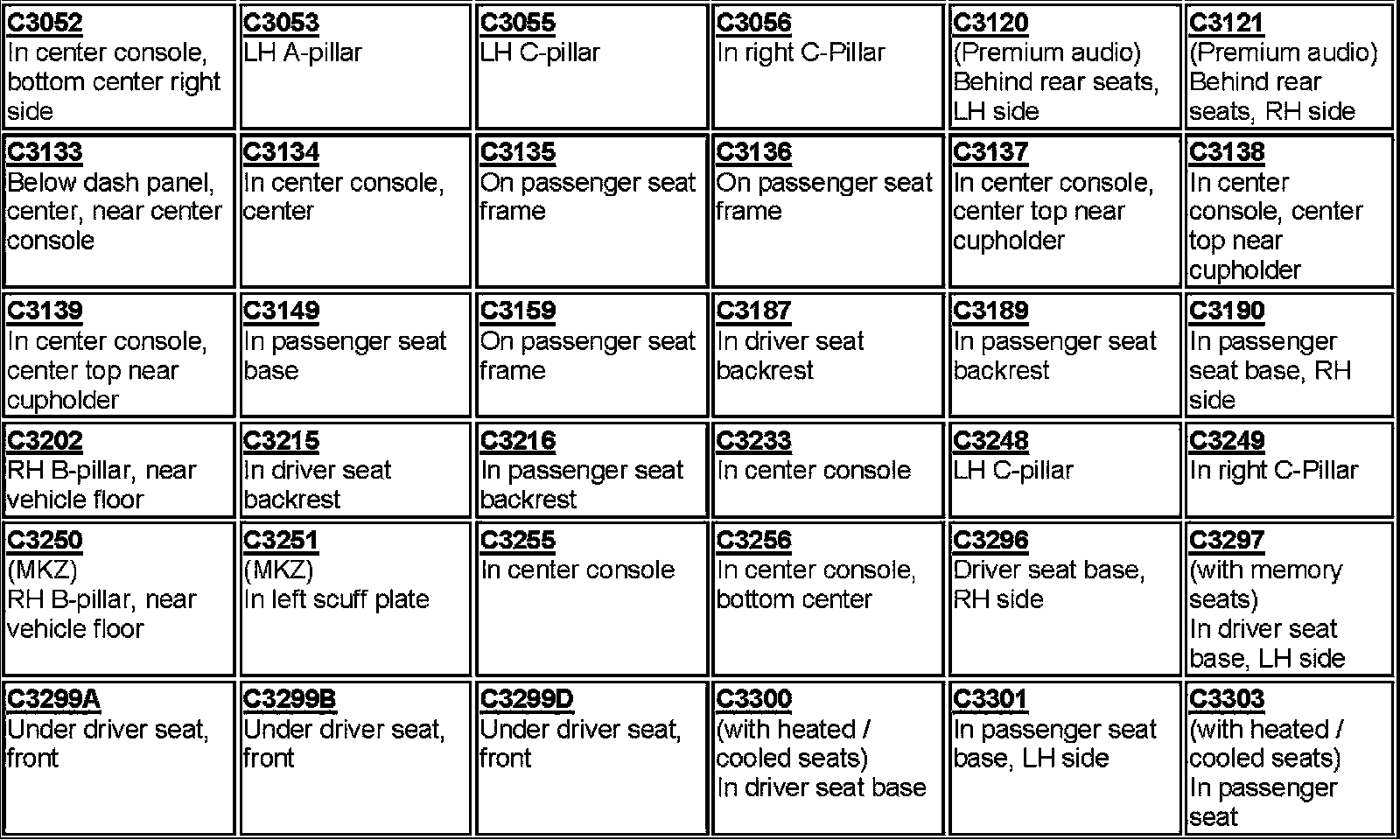

C3052-C3303:

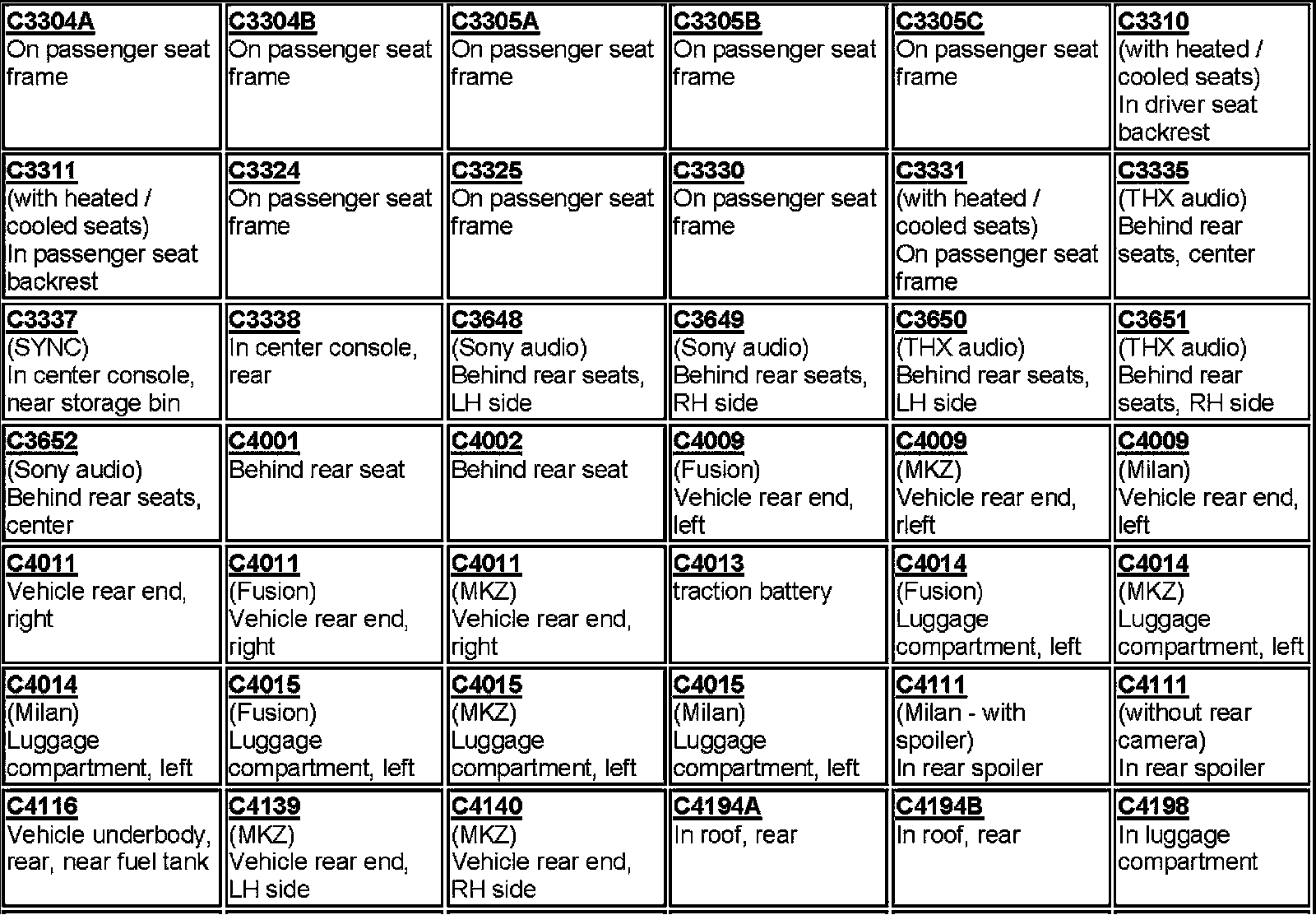

C3304A-C4198:

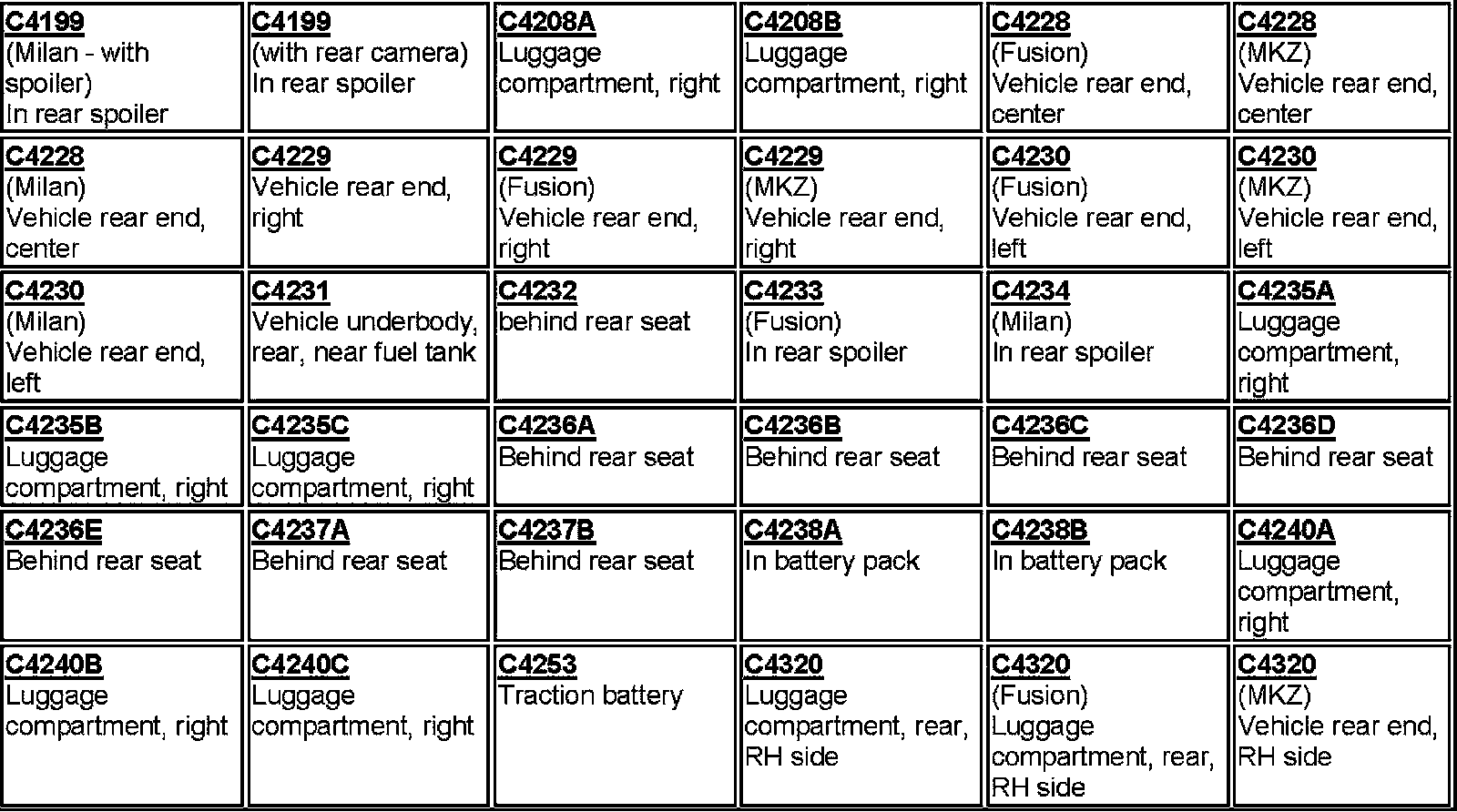

C4199-C4320:
