Test TU: Calculated Torque Error

PINPOINT TEST TU: CALCULATED TORQUE ERROR

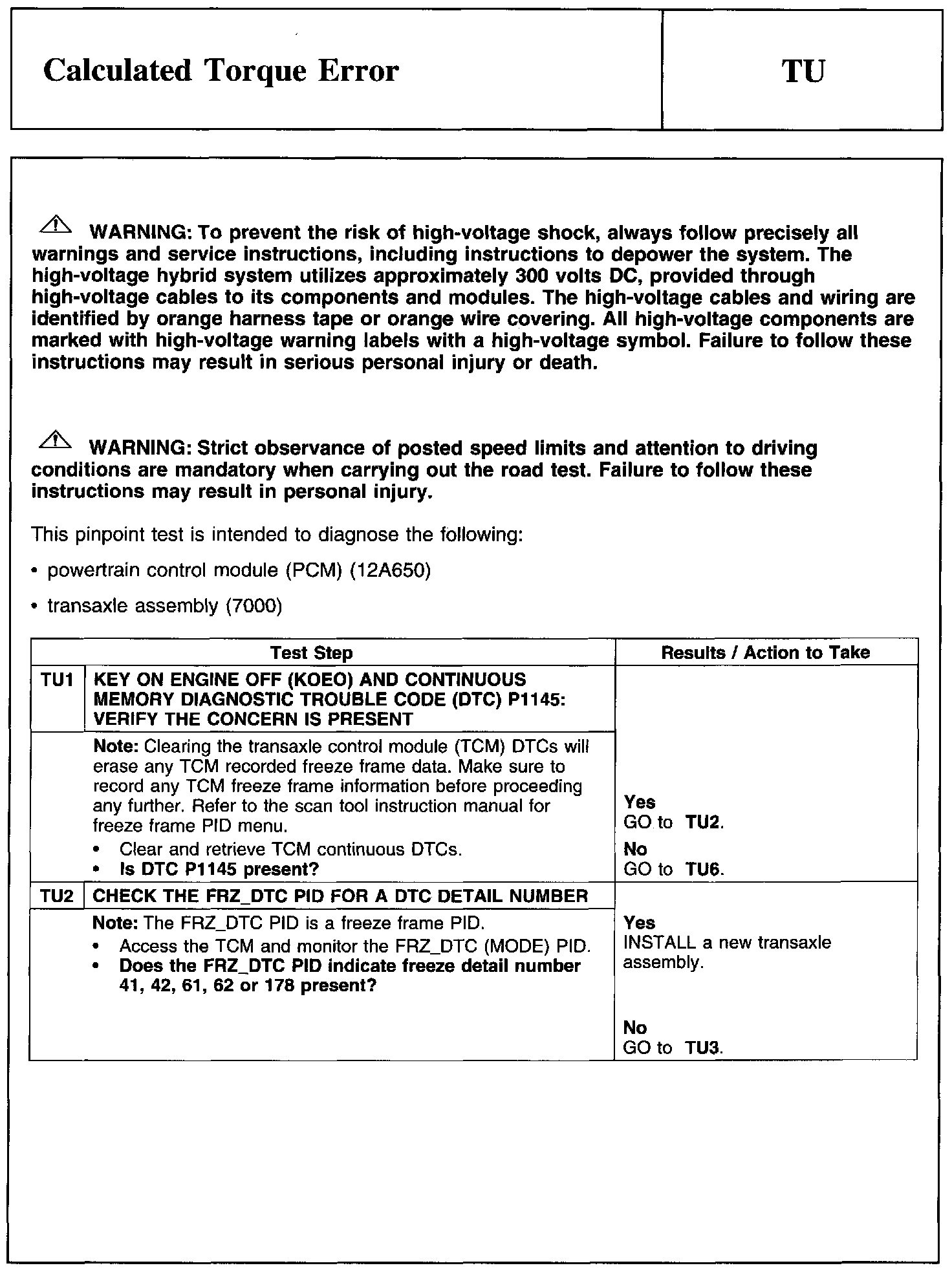

TU1-TU2:

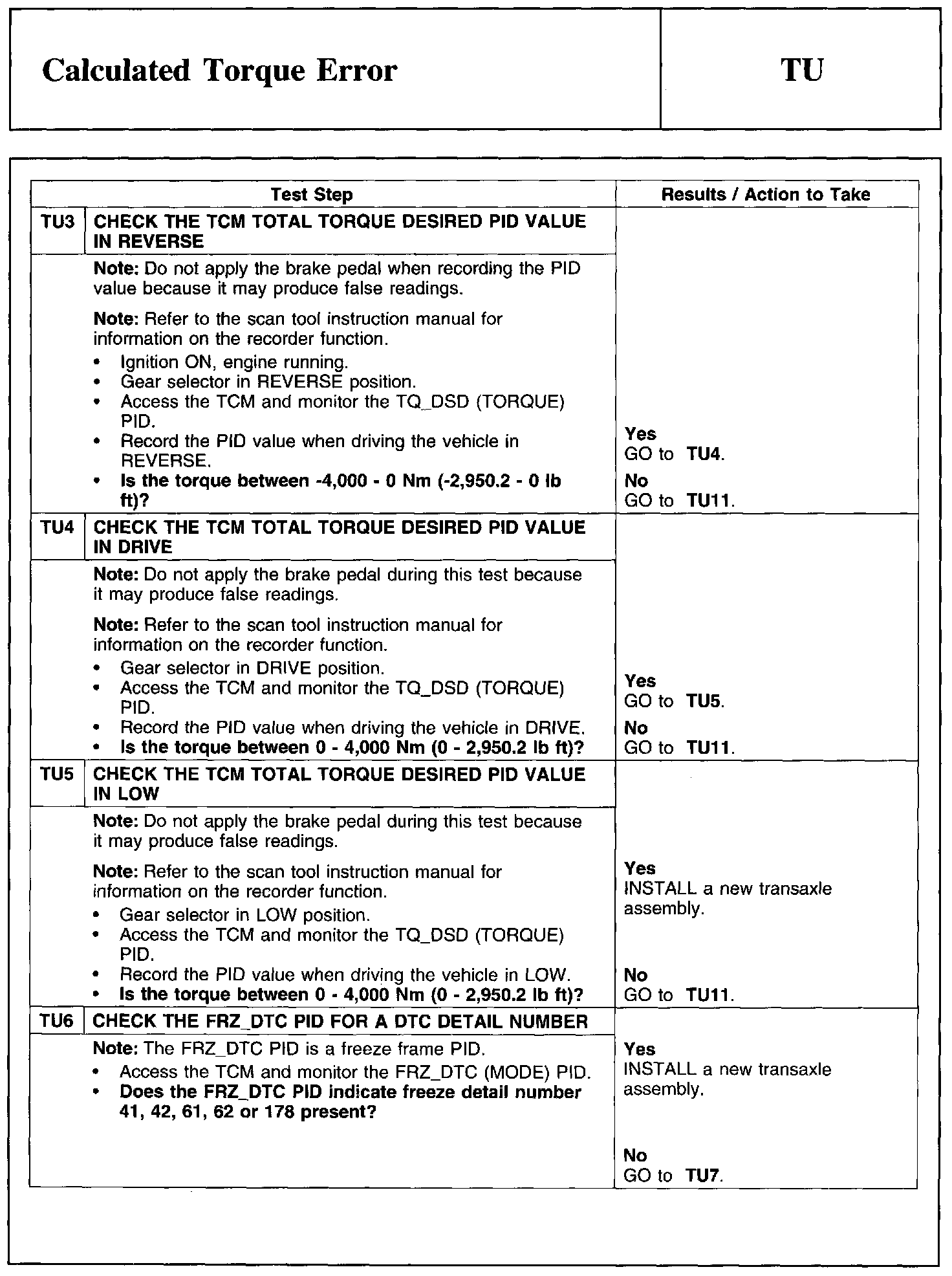

TU3-TU6:

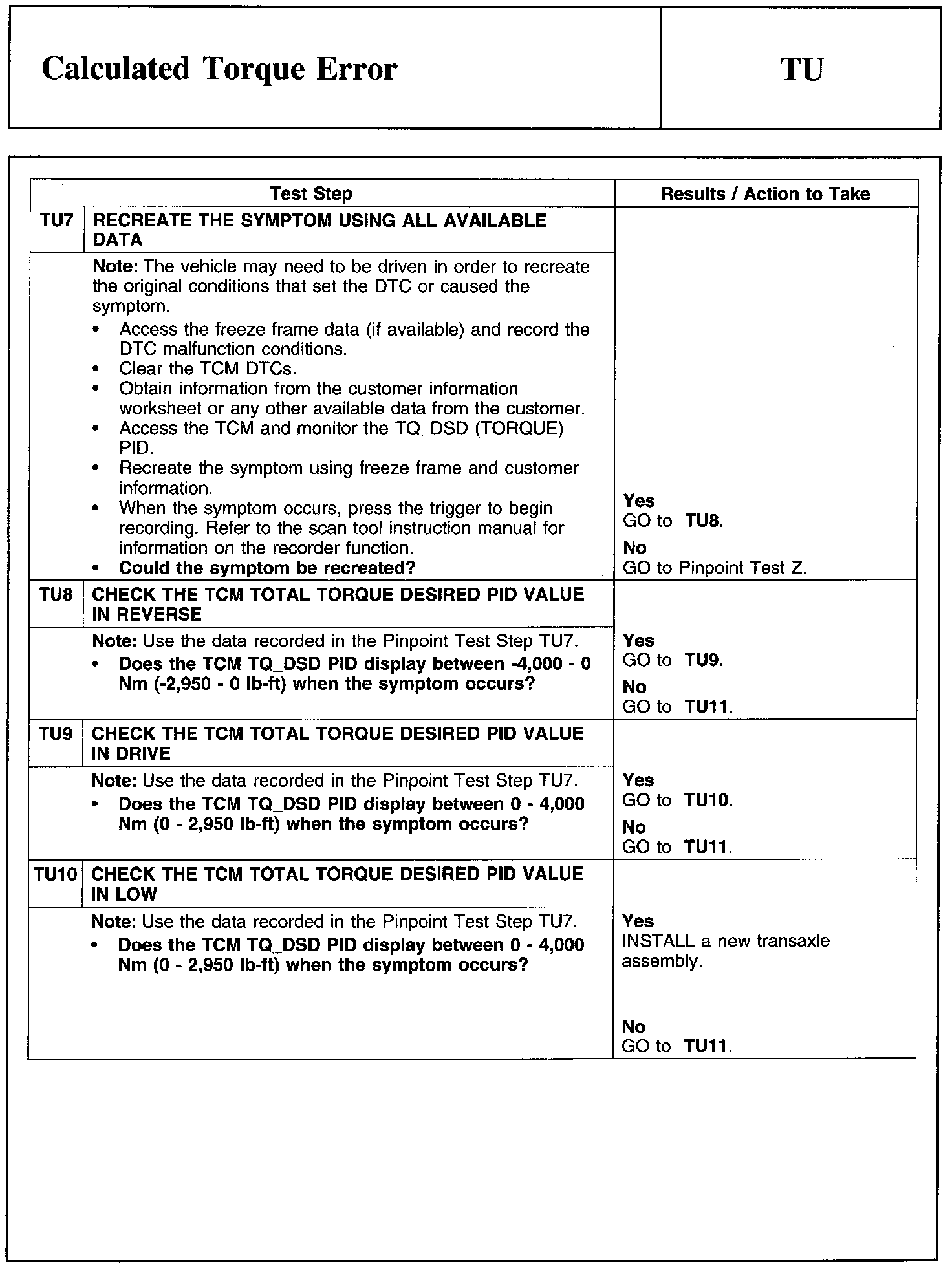

TU7-TU10:

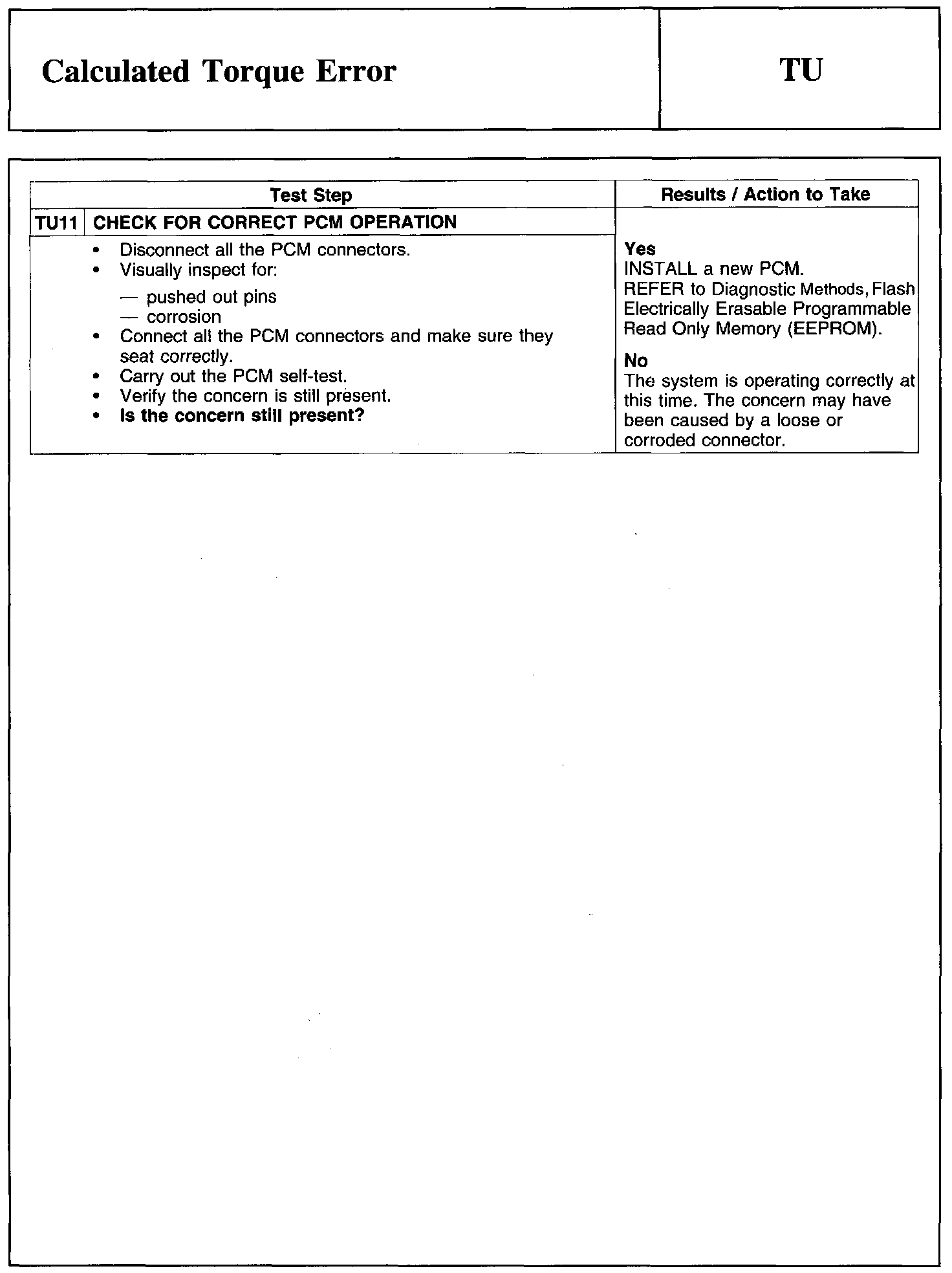

TU11:
