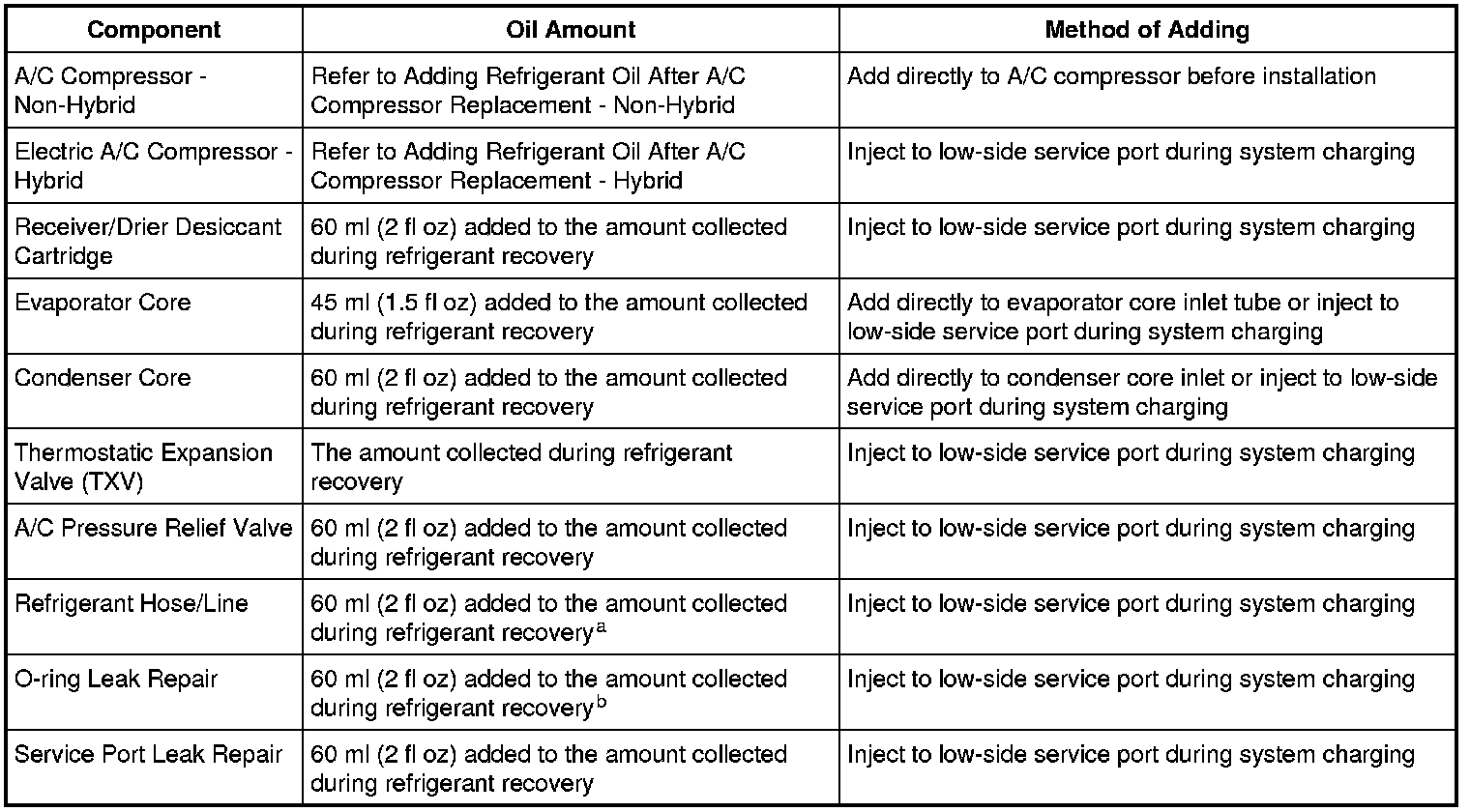

Refrigerant Oil




Item PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D
Specification WSH-M1C231-B
Fill Capacity Non-hybrid vehicles only 177 ml (6 fl oz)








a If an excessive amount of refrigerant oil is lost due to a hose rupture/separation or other damage, the total system refrigerant oil capacity must be added.

b The amount specified may be used for one or multiple O-ring leak repairs. Do not multiply the refrigerant oil amount by the number of O-ring leaks being repaired.
