Transmission Position Sensor/Switch: Service and Repair

Transmission Range (TR) Sensor

Removal

1. Remove the 7 screws and the underbody cover.





2. Disconnect the selector lever cable end from the manual control lever.

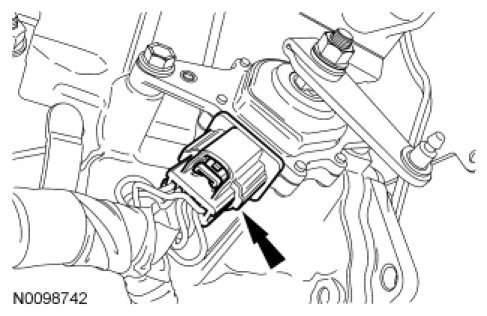

3. Disconnect the Transmission Range (TR) sensor electrical connector.

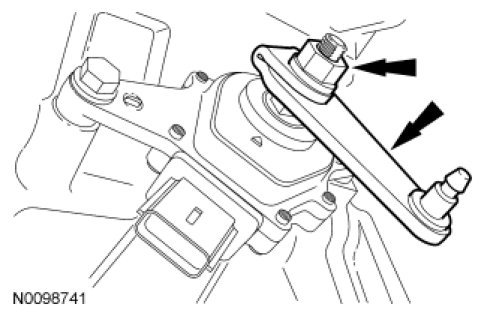

4. Remove the nut and the manual lever.

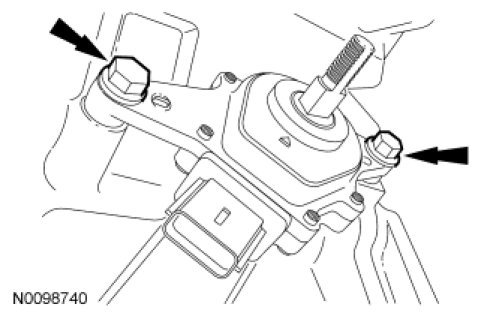

5. Remove the 2 bolts, slide the TR sensor off of the manual shaft and remove the TR sensor.





Installation

1. Position TR sensor on the manual shaft, align the 2 TR sensor bolt holes and install the 2 bolts.
- Tighten to 5 Nm (44 lb-in).





2. Install the manual control lever and the nut.
- Tighten to 12 Nm (106 lb-in).





3. Connect the TR sensor electrical connector.





4. Adjust the selector lever cable. For additional information, refer to Automatic Transaxle/Transmission External Controls - Hybrid . Connect the selector lever cable end.





5. Install the underbody cover and 7 screws.
