Powertrain Control Module (PCM): Notes

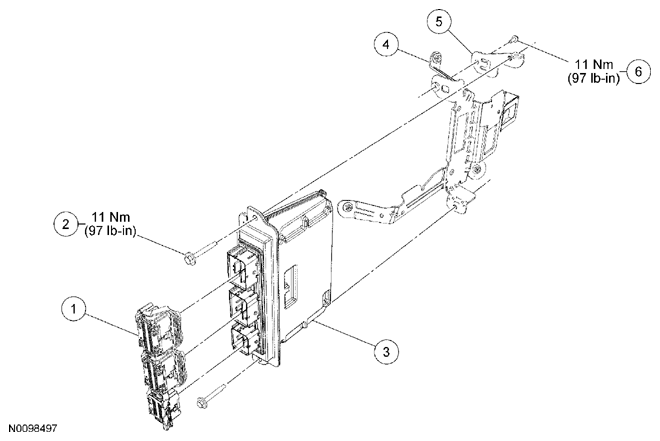

Fig 1: Powertrain Control Module (PCM) Replacement Components With Torque Specifications
G07785836Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 14A464 PCM electrical connector (3 required)
2 W5505428 PCM bolt (2 required)
3 12A650 PCM
4 12A692 PCM bracket
5 - Upper PCM bracket (part of 12A692)
6 - Upper PCM bracket bolt (part of 12A692)
