Anti-Lock Brake System (ABS) Module: Notes

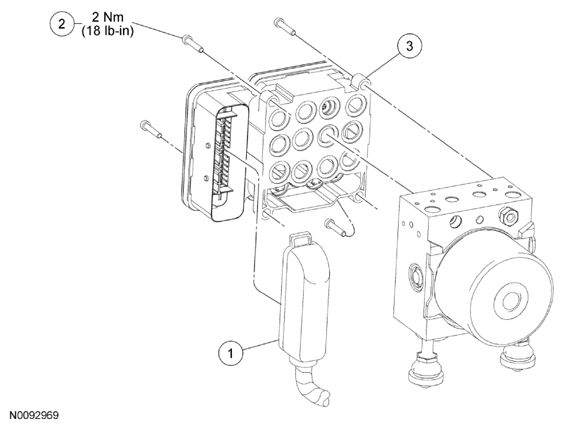

Fig 1: Exploded View Of Anti-Lock Brake System (ABS) Module Components With Torque Specifications
G07784419Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 - ABS module electrical connector (part of 14290)
2 2M101 ABS module screw (4 required)
3 2C219 ABS module
