Remote Function Actuator (RFA) Module: Notes

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

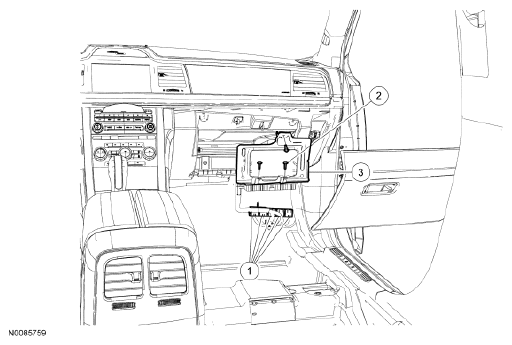

Fig 1: Identifying Remote Function Actuator (RFA) Module Components
G06076682Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Remote Function Actuator (RFA) module electrical connectors (part of 14401)
2 W707628-S424 RFA module screws (3 required)
3 15604 RFA module and bracket
