Center Support: Disassembly

    NOTE: The forward clutch piston in the center support is the side of the center support with the short legs.

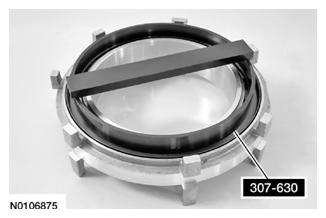

    Fig 1: Identifying Center Support Piston Spring Compressor (307-630)
    G07783366Courtesy of FORD MOTOR CO.
  1. Install the Center Support Piston Spring Compressor 307-630 on the forward (1, 2, 3, 4) clutch return spring.
  2. Using the Center Support Piston Spring Compressor 307-630 and a press, compress the forward (1, 2, 3, 4) clutch return spring and remove the snap ring.

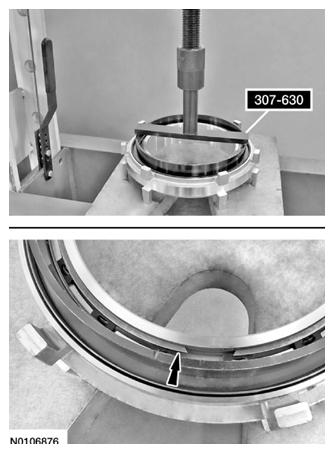

    Fig 2: Compressing Forward (1, 2, 3, 4) Clutch Return Spring
    G07783367Courtesy of FORD MOTOR CO.
  3. Remove the Center Support Piston Spring Compressor 307-630.

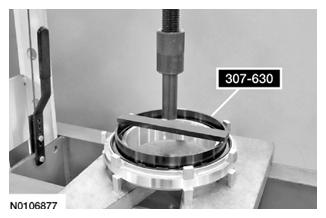

    Fig 3: Identifying Center Support Piston Spring Compressor 307-630
    G07783368Courtesy of FORD MOTOR CO.
  4. Remove the return spring from the Center Support Piston Spring Compressor 307-630 or the forward (1, 2, 3, 4) clutch piston.

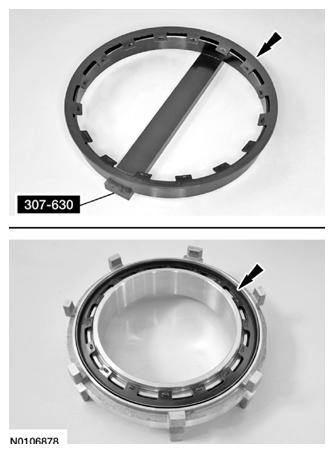

    Fig 4: Identifying Return Spring From Center Support Piston Spring Compressor 307-630
    G07783369Courtesy of FORD MOTOR CO.
  5. Apply 483 kPa (70 psi) of air pressure to the forward (1, 2, 3, 4) clutch piston port and remove the forward (1, 2, 3, 4) clutch piston.

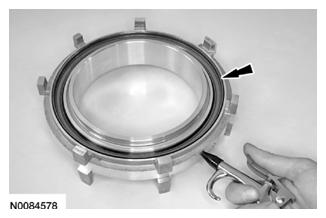

    Fig 5: Applying Air Pressure To Forward (1, 2, 3, 4) Clutch Piston Port
    G07783370Courtesy of FORD MOTOR CO.
  6. Install the Center Support Piston Spring Compressor 307-630 on the low/reverse return spring.

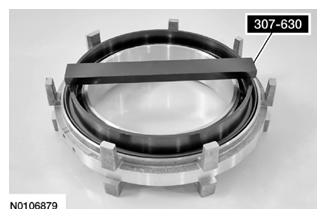

    Fig 6: Identifying Center Support Piston Spring Compressor 307-630
    G07783371Courtesy of FORD MOTOR CO.
  7. Using the Center Support Piston Spring Compressor 307-630 and a press, compress the low/reverse clutch return spring and remove the snap ring.

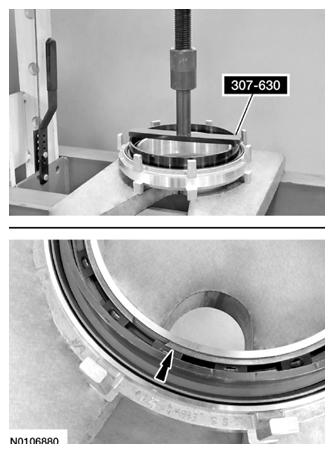

    Fig 7: Compressing Low/Reverse Clutch Return Spring Using Center Support Piston Spring Compressor (307-630)
    G07783372Courtesy of FORD MOTOR CO.
  8. Remove the Center Support Piston Spring Compressor 307-630.

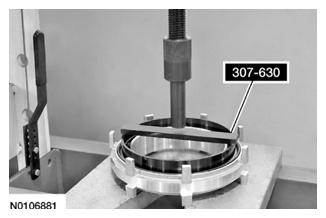

    Fig 8: Identifying Center Support Piston Spring Compressor 307-630
    G07783373Courtesy of FORD MOTOR CO.
  9. Remove the low/reverse clutch return spring.

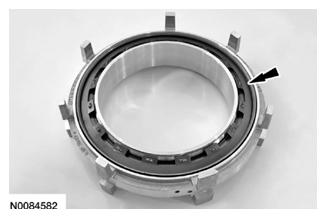

    Fig 9: Locating Low/Reverse Clutch Return Spring
    G07783374Courtesy of FORD MOTOR CO.
  10. Apply 483 kPa (70 psi) of air pressure to the low/reverse clutch piston port and remove the low/reverse clutch piston.

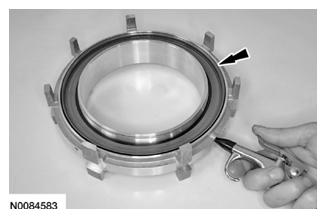

    Fig 10: Applying Air Pressure To Low/Reverse Clutch Piston Port
    G07783375Courtesy of FORD MOTOR CO.
