Front Controls Interface Module (FCIM): Notes
WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

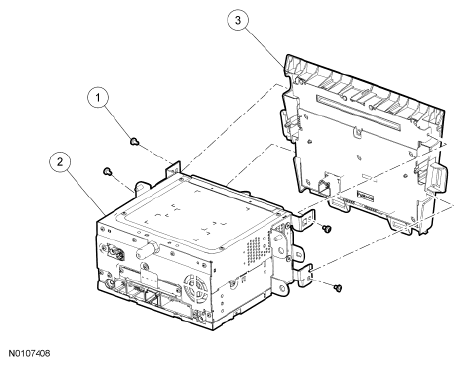

Vehicle with navigation shown in illustration, others similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W505510-S |
Front Controls Interface Module (FCIM) screws (4 required) |
| 2 |
18C963/18806 |
ACM (without navigation/with navigation) |
| 3 |
18842 |
FCIM |
