Vertical Alignment

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: In order to align the Cruise-Control Module (C-CM), which is a radar sensor unit, the front bumper cover must be removed to access the sensor and the vehicle must be in a wheel alignment bay station so that the vehicle is level.

NOTE: Damage to the C-CM bracket may affect correct alignment. When aligning the C-CM, inspect the C-CM bracket for damage and repair as necessary before carrying out the alignment procedure.

Remove the front bumper cover. For additional information, refer to BUMPER SYSTEM article.
Place the vehicle on a wheel alignment bay station.
Locate the C-CM radar sensor alignment screw.

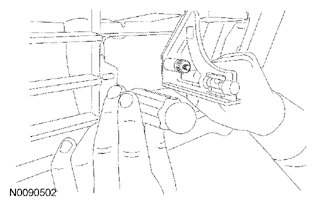

Fig 1: Locating Speed Control Sensor Alignment Screw
Courtesy of FORD MOTOR CO.
Place a combination square level on the face of the C-CM radar sensor unit and check the alignment.

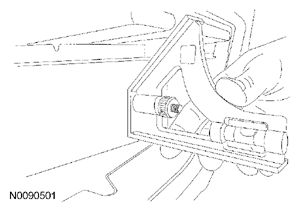

Fig 2: Placing Combination Square Level On Face Of C-CM Radar Sensor Unit
Courtesy of FORD MOTOR CO.
Keeping the combination square level on the face of the C-CM radar sensor unit, adjust the pitch of the sensor by using an E5 inverted Torx® bit to adjust the screw until the sensor is vertical and level.

Fig 3: Adjusting Pitch Of Sensor Using E5 Inverted Torx® Bit
Courtesy of FORD MOTOR CO.

NOTE: Prior to installing the front bumper cover, clean and remove any debris on the front or back of the cover.

Install the front bumper cover.
