Transaxle Case: Assembly

Do not install the following components into the transaxle case at this time. These components will be installed during final assembly.
- Input shaft bearing cup and shim
- Output shaft bearing cup and shim
- Differential bearing cup and shim
- Funnel
Working on the transaxle clutch housing side, install the vent cover and the 2 vent cover bolts.
- Tighten to 10 Nm (89 lb-in).

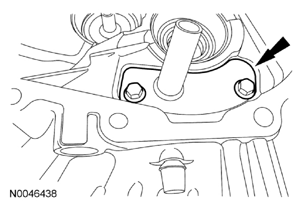

Fig 1: Locating Vent Cover Bolts
Courtesy of FORD MOTOR CO.
Using the Clutch Housing Oil Seal Installer, install a new input shaft seal.

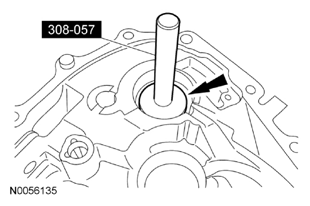

Fig 2: Installing Input Shaft Seal Using Clutch Housing Oil Seal Installer
Courtesy of FORD MOTOR CO.
Install the input shaft bearing cup into the clutch housing.

Fig 3: Locating Input Shaft Bearing Cup
Courtesy of FORD MOTOR CO.
Align and install the funnel and the output shaft bearing cup into the clutch housing.

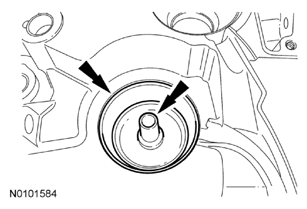

Fig 4: Locating Output Shaft Bearing Cup And Funnel
Courtesy of FORD MOTOR CO.
Using the Differential Bearing Cup Installer and Handle, install the differential bearing cup into the clutch housing.

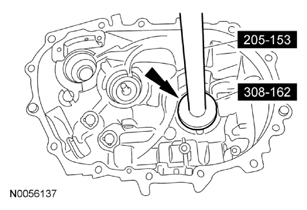

Fig 5: Installing Differential Bearing Cup Into Clutch Housing Using Differential Bearing Cup Installer And Handle
Courtesy of FORD MOTOR CO.
Using the Halfshaft Oil Seal Installer, install new halfshaft seals.

Fig 6: Installing New Halfshaft Seals Using Halfshaft Oil Seal Installer
Courtesy of FORD MOTOR CO.
Install the shift control selector plate.
- Tighten the bolt on the left to 10 Nm (89 lb-in).
- Tighten the bolt on the right to 28 Nm (21 lb-ft).

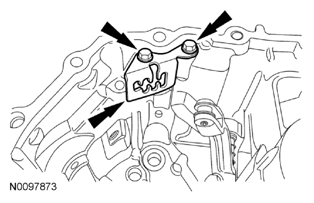

Fig 7: Locating Shift Control Selector Plate Bolts
Courtesy of FORD MOTOR CO.
Install the shift lever boot.

Fig 8: Locating Shift Lever Boot
Courtesy of FORD MOTOR CO.
Install shift lever seal into the case.

Fig 9: Locating Shift Lever Seal
Courtesy of FORD MOTOR CO.
Install the shift lever rod into the case. Install the control arm key.

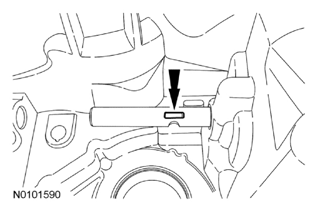

Fig 10: Locating Control Arm Key
Courtesy of FORD MOTOR CO.

NOTE: Use care not to let the washer fall off the rod.

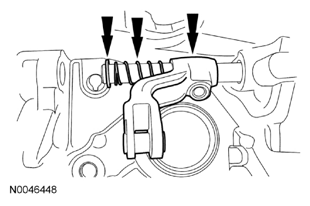

Fig 11: Locating Washer, Spring And Control Arm

Courtesy of FORD MOTOR CO.

Install the control arm, the spring and the washer. Push the assembly inward. Align the control arm bolt with the notch on the shift lever rod. Install the bolt.
- Tighten to 12 Nm (106 lb-in).
Install the shift lever assembly.
1. Install the 2 shift lever assembly bolts and attach the boot and bushing to the case.
  - Tighten to 22 Nm (16 lb-ft).
2. Attach the shift arm, boot and bushing to the shift assembly.

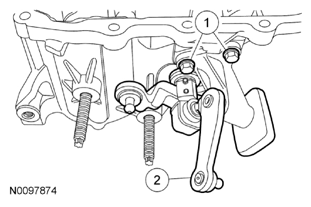

  Fig 12: Identifying Shift Lever Assembly Bolts And Shift Arm
  Courtesy of FORD MOTOR CO.
