RH Side

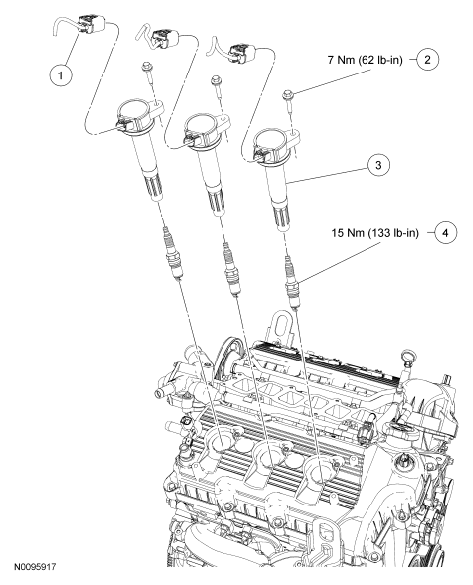

Fig 1: Exploded View Of Engine Ignition Components With Torque Specifications (RH Side)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	14A464	RH ignition coil-on-plug electrical connector (part of 12B637) (3 required)
2	W708833	RH ignition coil-on-plug bolt (3 required)
3	12A375	RH ignition coil-on-plug (3 required)
4	12405	Spark plug (3 required)

For additional information, refer to the procedures in this service information.
