Powertrain Control Module (PCM): Notes

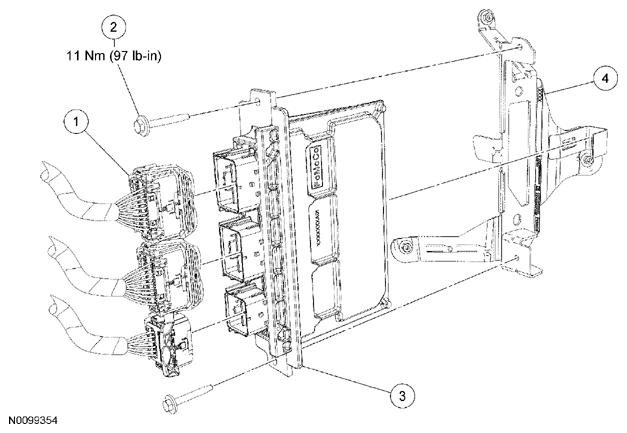

Fig 1: Exploded View Of Powertrain Control Module (PCM) Components With Torque Specifications
G07785779Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 14A464 PCM electrical connector (3 required)
2 W505428 PCM bolt (2 required)
3 12A650 PCM
4 12A659 PCM bracket
