Occupant Classification System Module Connector - C3159

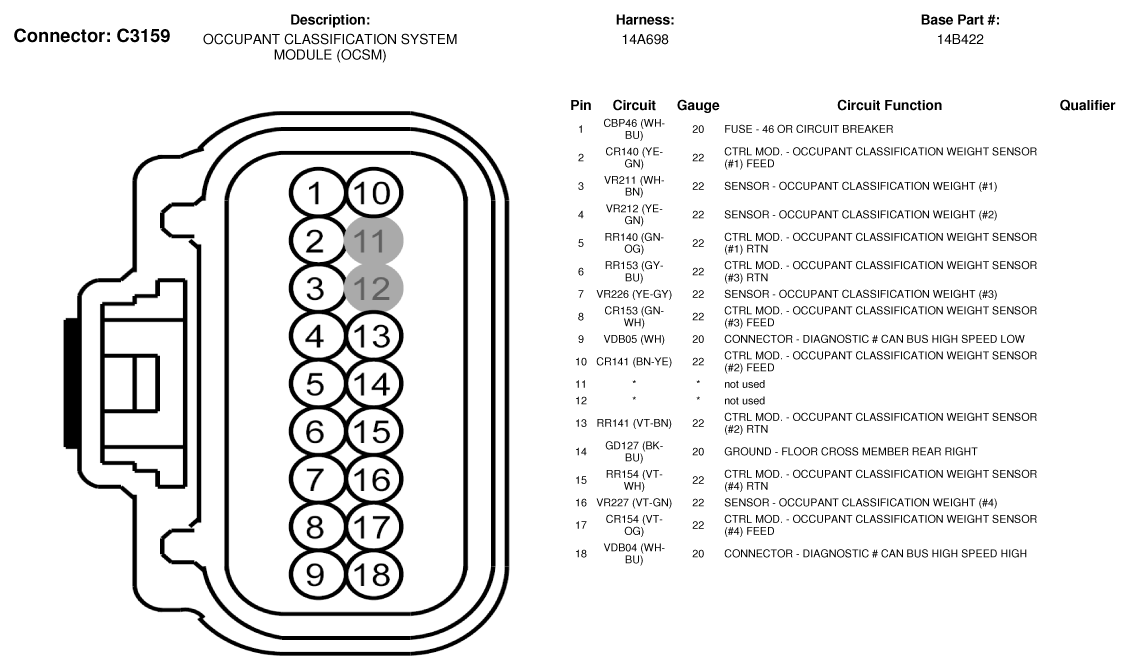

Fig 1: Occupant Classification System Module Connector End View (C3159)
G07335844Courtesy of FORD MOTOR CO.
