Digital Transmission Range (TR) Sensor: Notes
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC |
MERCON® LV |
| Ultra Silicone Sealant TA-29 |
- |

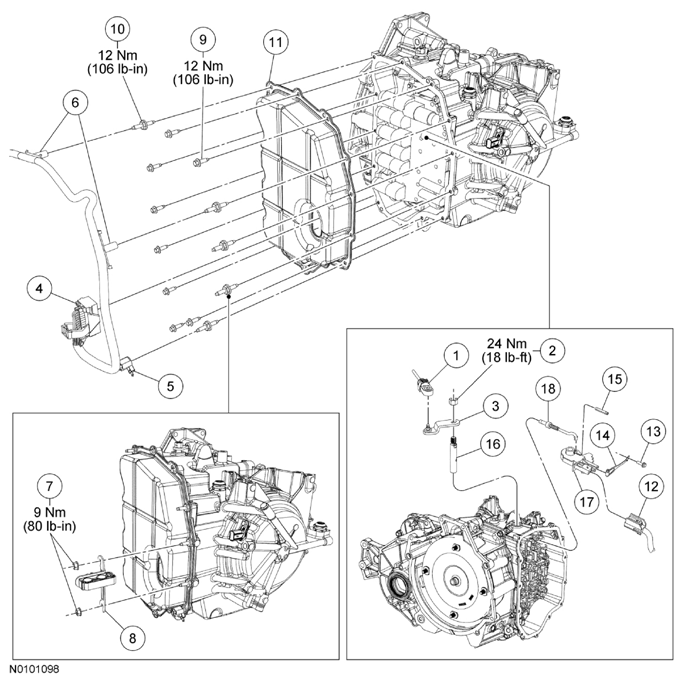

Fig 1: Exploded View Of Digital Transmission Range (TR) Sensor Components With Torque Specifications
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 7E395 | Selector lever cable |
| 2 | W708455 | Manual control lever nut |
| 3 | 7A256 | Manual control lever |
| 4 | 14A464 | Transaxle main harness electrical connector |
| 5 | 9S318 | Wiring harness retainer |
| 6 | 14A163 | Wiring harness retainer |
| 7 | N805320 | Transmission fluid cooler tube nuts |
| 8 | 7H420 | Transmission fluid cooler tube bracket |
| 9 | W500213 | Main control cover bolts |
| 10 | W705619 | Main control cover studbolts |
| 11 | 7G004 | Main control cover |
| 12 | 7G276 | Transmission Range (TR) electrical connector |
| 13 | W711235 | Manual valve detent spring bolt |
| 14 | 7E332 | Manual valve detent spring |
| 15 | 7G100 | Manual control shaft pin |
| 16 | 7C493 | Manual control shaft |
| 17 | 7H155 | TR sensor |
| 18 | 7A232 | Park pawl actuator rod |
