Transmission Control Module (TCM): Installation

Verify that the manual lever position markings are aligned. Markings should indicate that the manual lever is in the OVERDRIVE position.

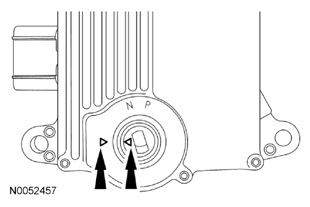

Fig 1: Locating Manual Lever Position Markings
Courtesy of FORD MOTOR CO.
Install the TCM.
- Tighten to 24 Nm (18 lb-ft).
Fig 2: Locating TCM Mounting Bolts
Courtesy of FORD MOTOR CO.
Install the manual control lever.

Fig 3: Locating Manual Control Lever
Courtesy of FORD MOTOR CO.
Install the manual control lever nut.
- Tighten to 12 Nm (106 lb-in).
Fig 4: Locating Manual Control Lever Nut
Courtesy of FORD MOTOR CO.
Connect the TCM electrical connector.

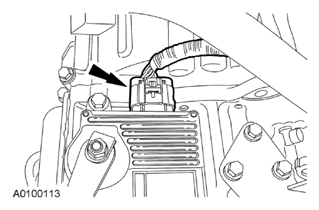

Fig 5: Locating TCM Electrical Connector
Courtesy of FORD MOTOR CO.

NOTE: Support the underside of the manual control lever when installing the selector lever cable or damage to the manual control lever or shaft may occur.

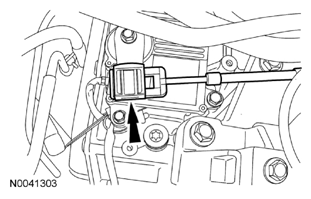

Fig 6: Locating Selector Lever Cable End

Courtesy of FORD MOTOR CO.

Connect the selector lever cable end.
Install the ACL assembly. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING - 3.5L -- FUSION & MKZ article.
Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING & CABLES -- FUSION, MILAN & MKZ article.
Carry out the TCM initial learning procedure. For additional information, refer to TRANSMISSION CONTROL MODULE (TCM) INITIAL LEARNING in this service information.
Check for correct vehicle operation.
