Body Control Module B (BCM-B): Notes

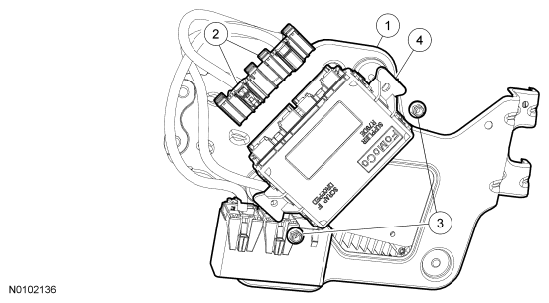

Fig 1: Identifying Body Control Module B (BCM-B) Components

Courtesy of FORD MOTOR CO.

BODY CONTROL MODULE B (BCM-B) PARTS DESCRIPTION CHART

Item	Part Number	Description
1	14D644	Body Control Module B (BCM-B) bracket assembly
2	-	BCM-B electrical connectors (part of 14A005)
3	W707142	BCM-B nuts (2 required)
4	18T805	BCM-B
