Component Location Views

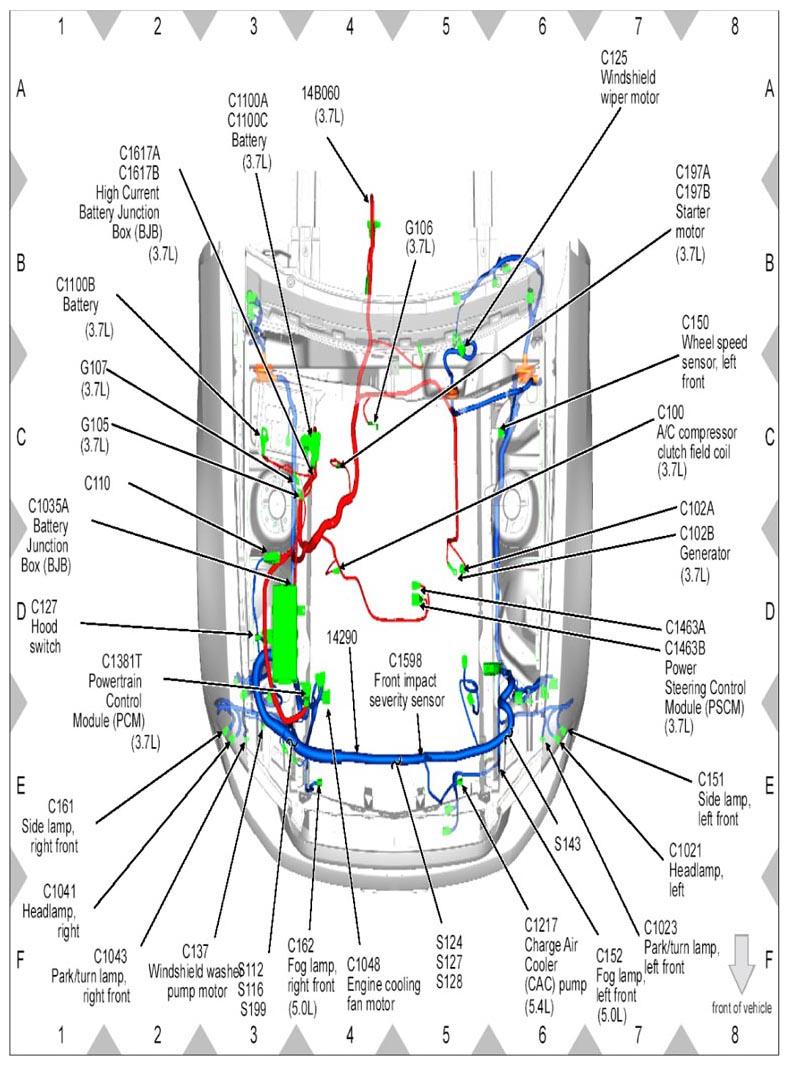

Fig 1: Identifying Engine Compartment Wiring Harness Connectors Location (1 Of 3)
G07881257Courtesy of FORD MOTOR CO.

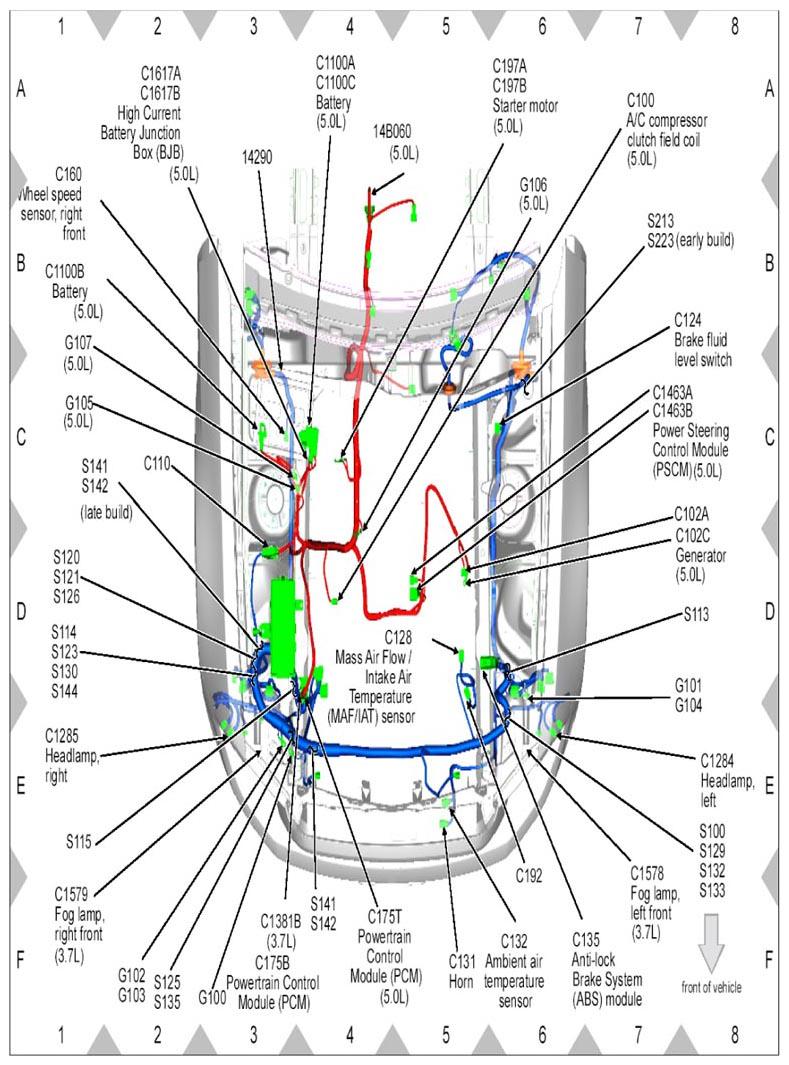

Fig 2: Identifying Engine Compartment Wiring Harness Connectors Location (2 Of 3)
G07881258Courtesy of FORD MOTOR CO.

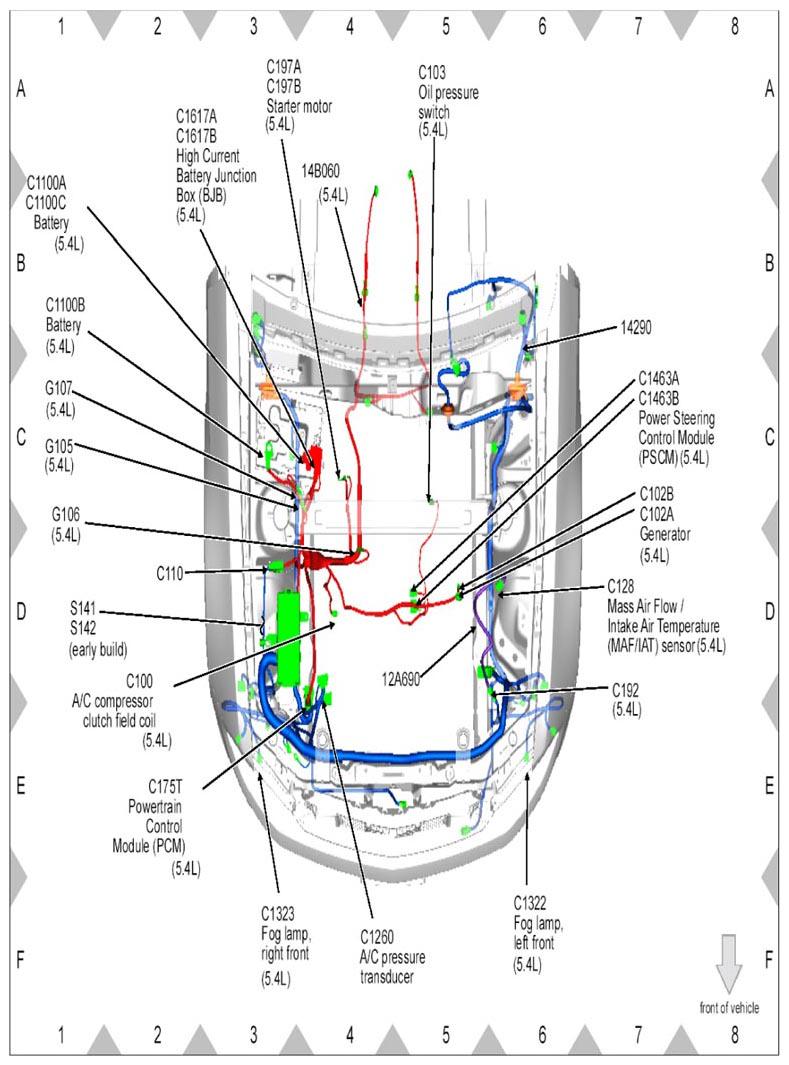

Fig 3: Identifying Engine Compartment Wiring Harness Connectors Location (3 Of 3)
G07881259Courtesy of FORD MOTOR CO.

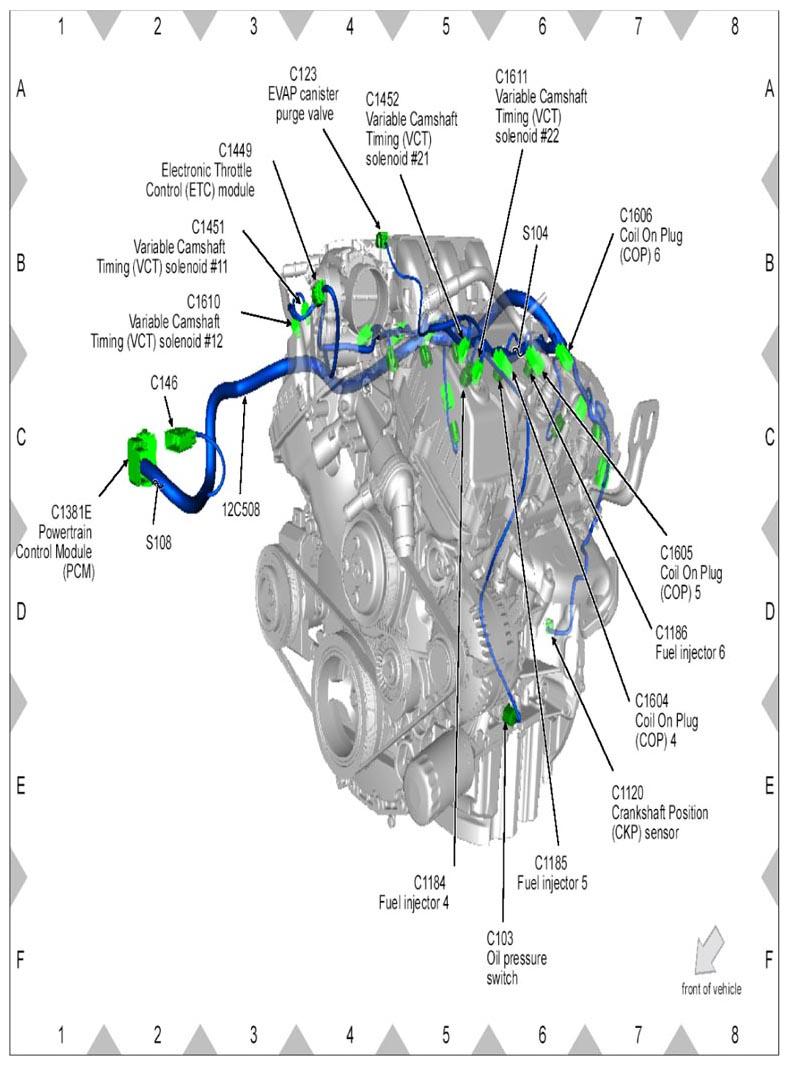

Fig 4: Identifying Engine Wiring Harness Wiring Harness Connectors Location (1 Of 6)
G07881260Courtesy of FORD MOTOR CO.

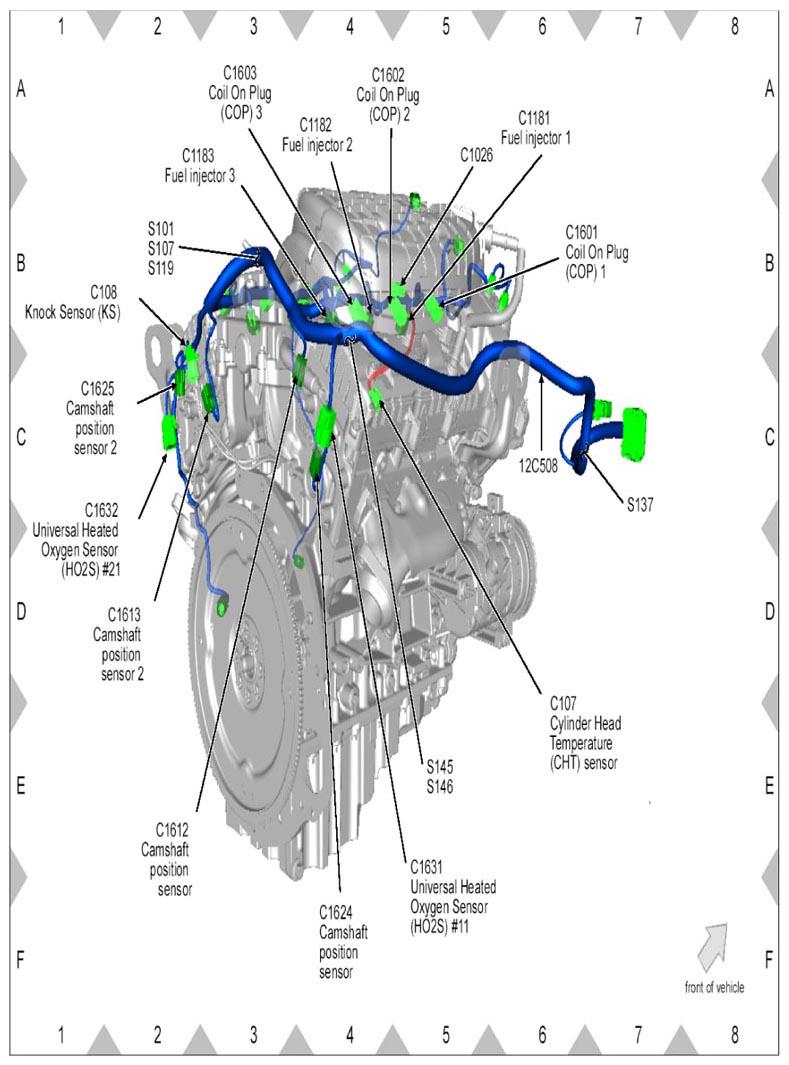

Fig 5: Identifying Engine Wiring Harness Wiring Harness Connectors Location (2 Of 6)
G07881261Courtesy of FORD MOTOR CO.

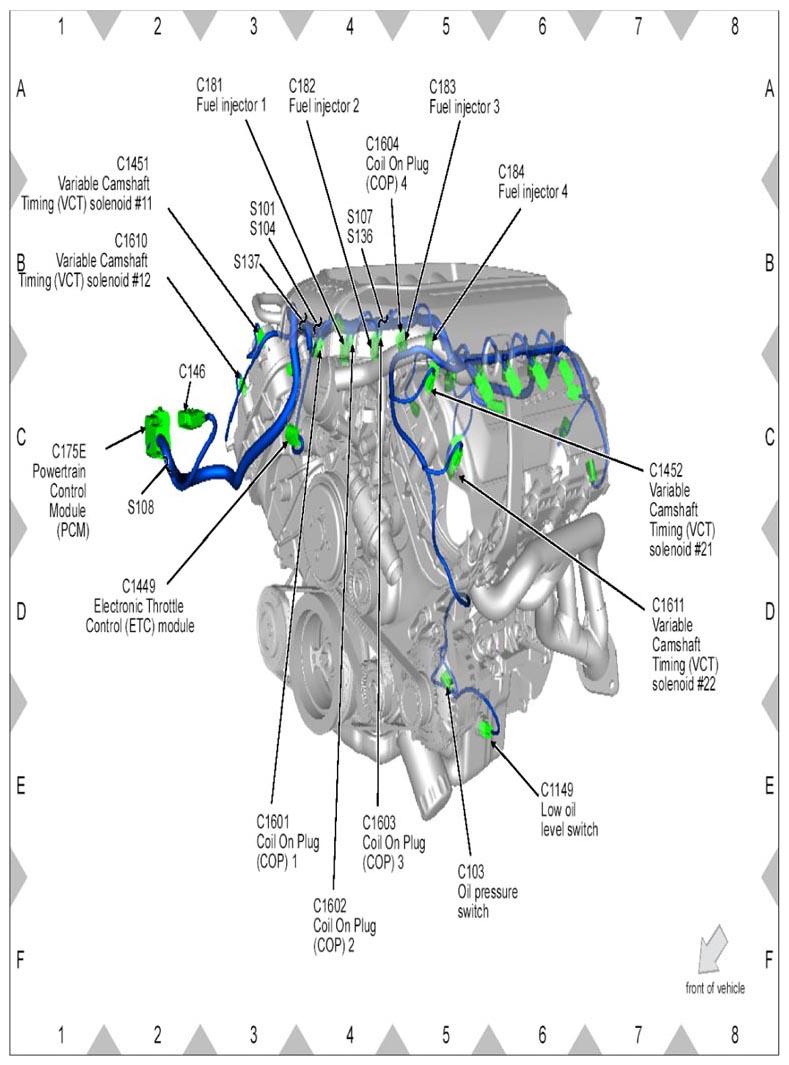

Fig 6: Identifying Engine Wiring Harness Wiring Harness Connectors Location (3 Of 6)
G07881262Courtesy of FORD MOTOR CO.

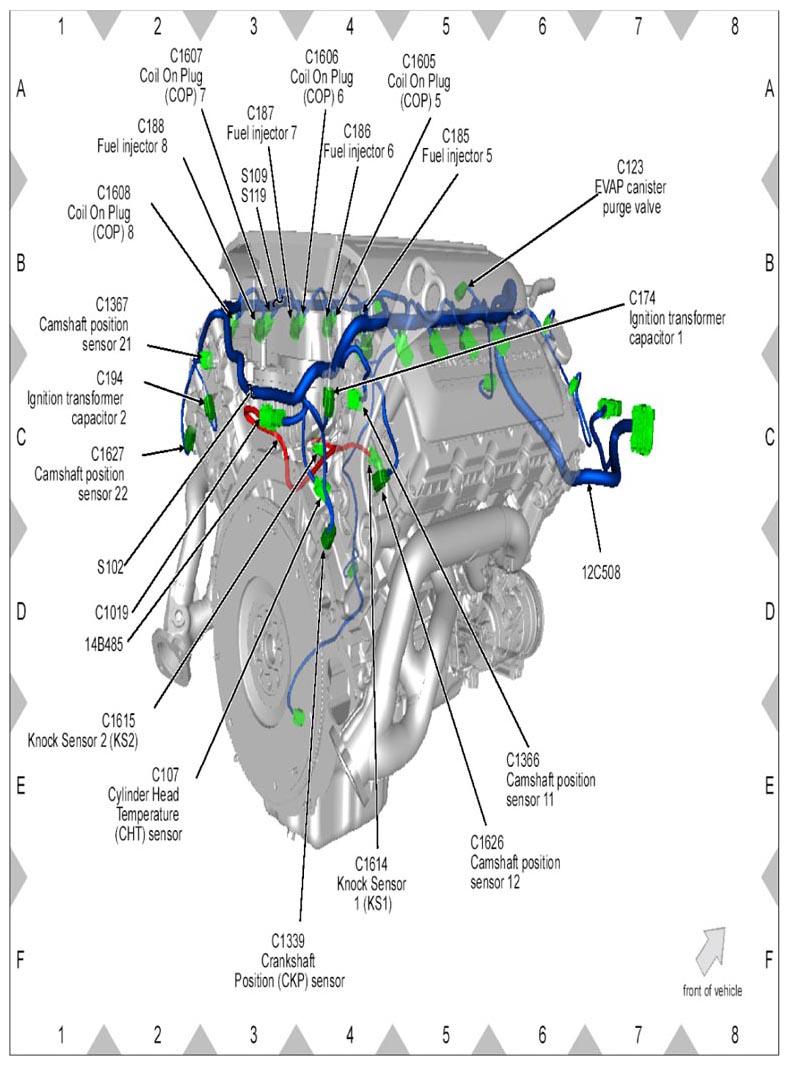

Fig 7: Identifying Engine Wiring Harness Wiring Harness Connectors Location (4 Of 6)
G07881263Courtesy of FORD MOTOR CO.

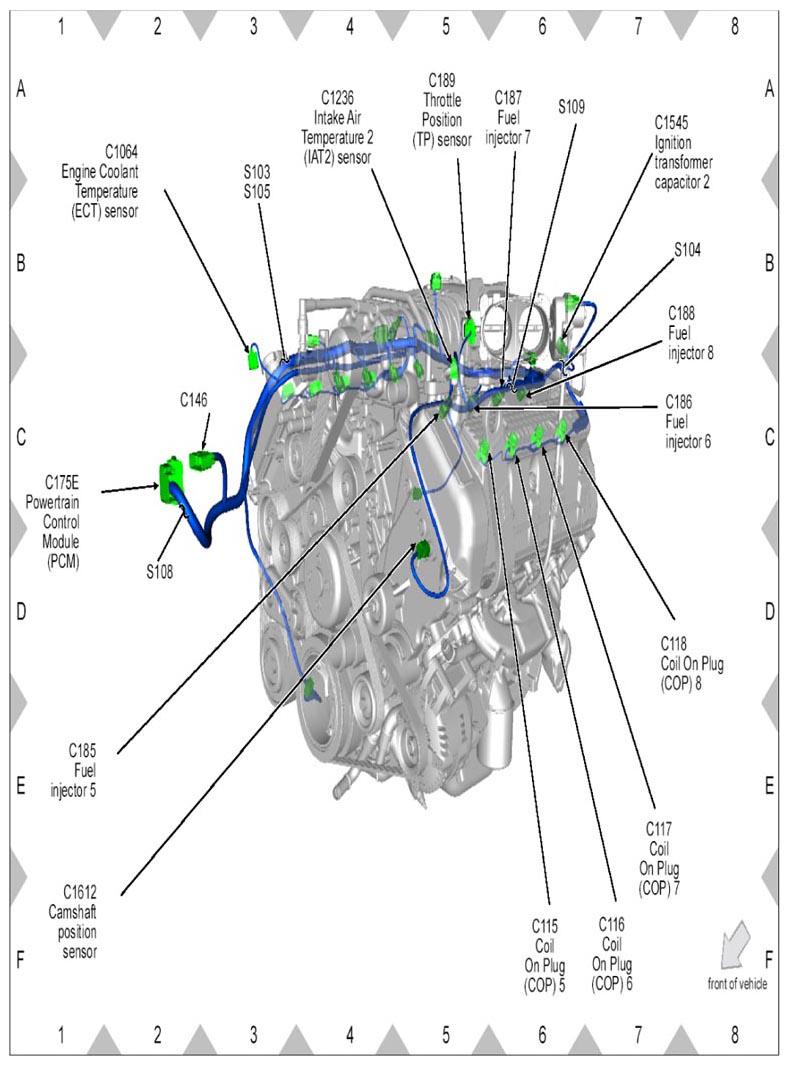

Fig 8: Identifying Engine Wiring Harness Wiring Harness Connectors Location (5 Of 6)
G07881264Courtesy of FORD MOTOR CO.

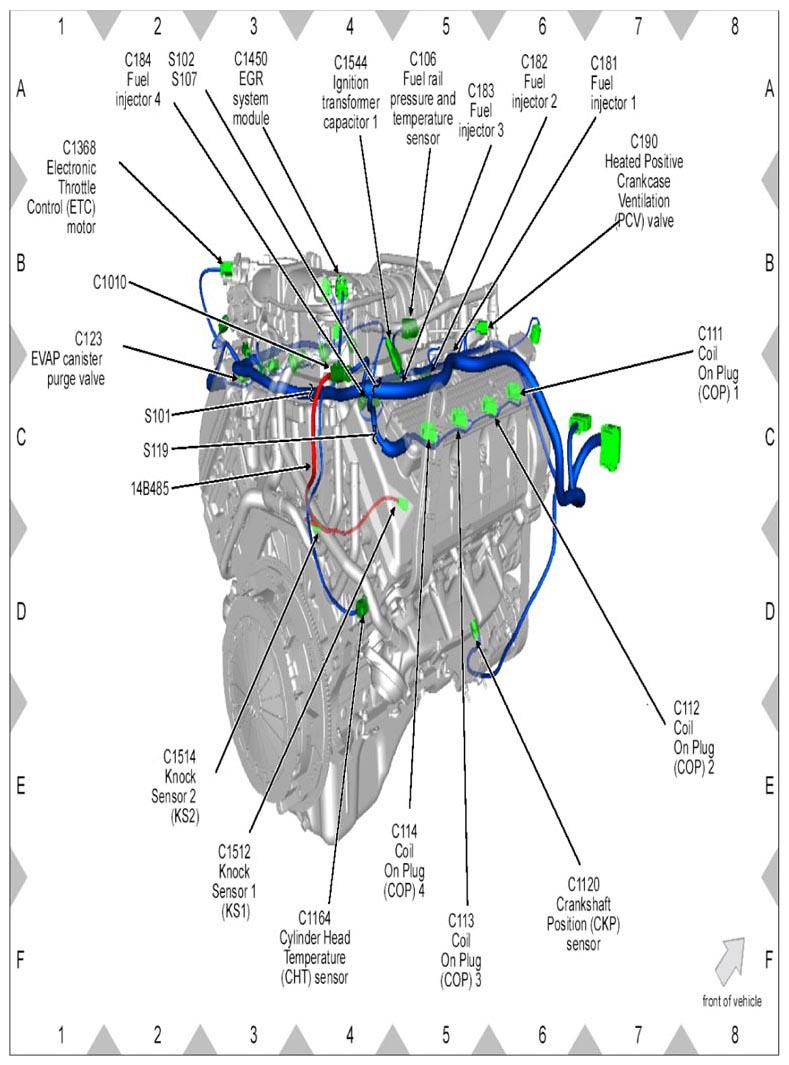

Fig 9: Identifying Engine Wiring Harness Wiring Harness Connectors Location (6 Of 6)
G07881265Courtesy of FORD MOTOR CO.

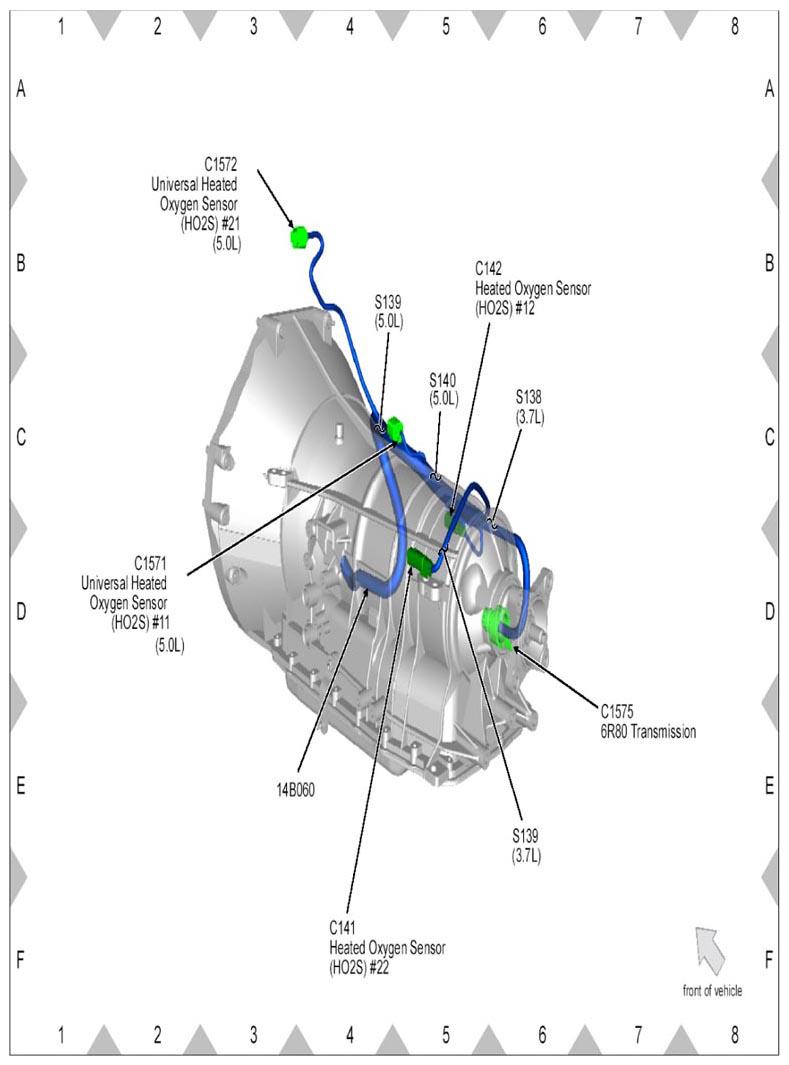

Fig 10: Identifying Engine Transmission Wiring Harness Connectors Location (1 Of 3)
G07881266Courtesy of FORD MOTOR CO.

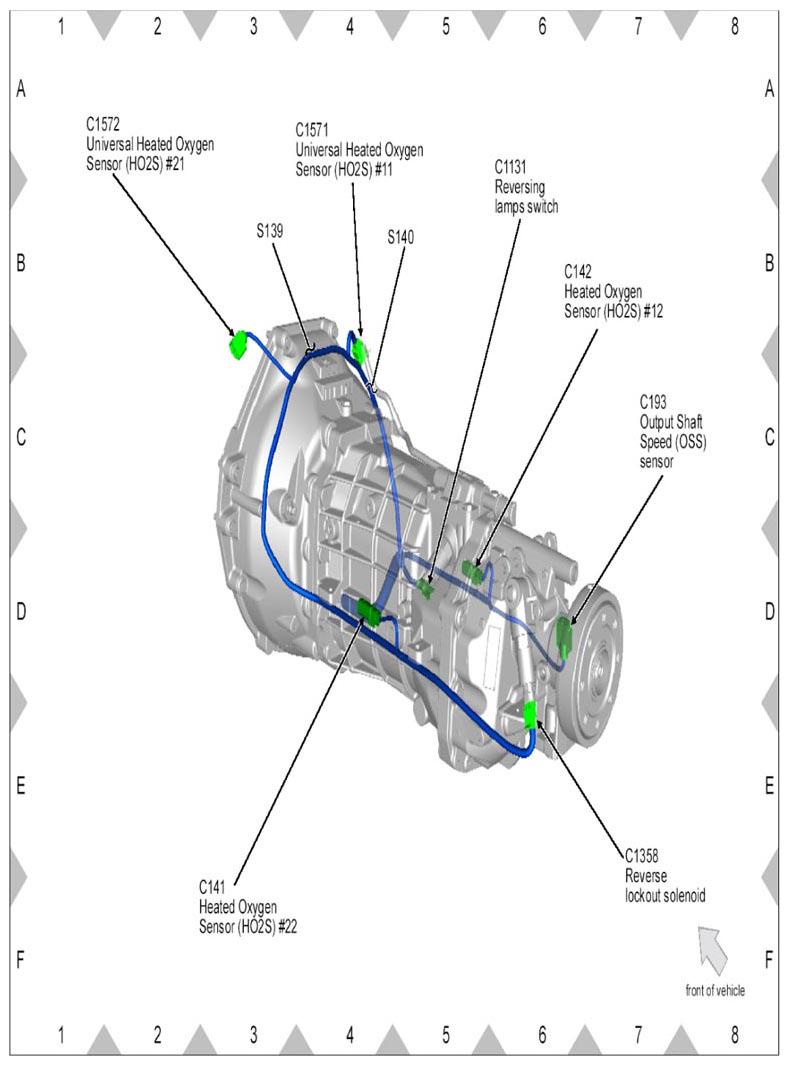

Fig 11: Identifying Engine Transmission Wiring Harness Connectors Location (2 Of 3)
G07881267Courtesy of FORD MOTOR CO.

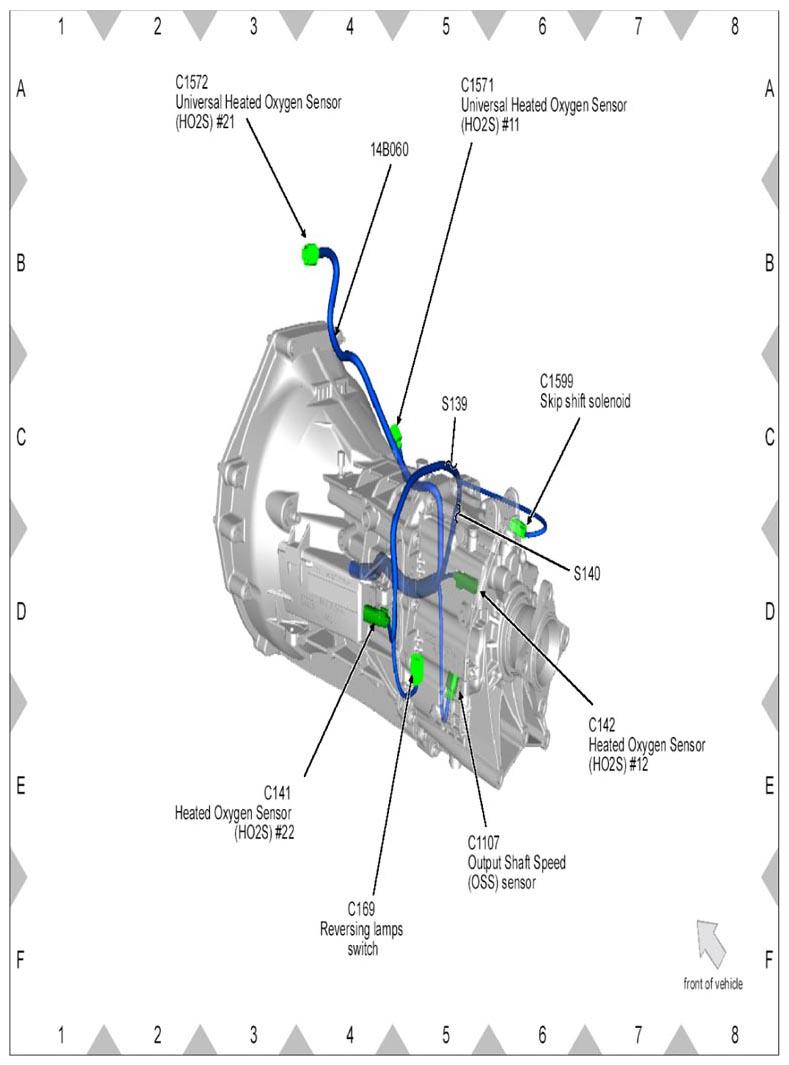

Fig 12: Identifying Engine Transmission Wiring Harness Connectors Location (3 Of 3)
G07881268Courtesy of FORD MOTOR CO.

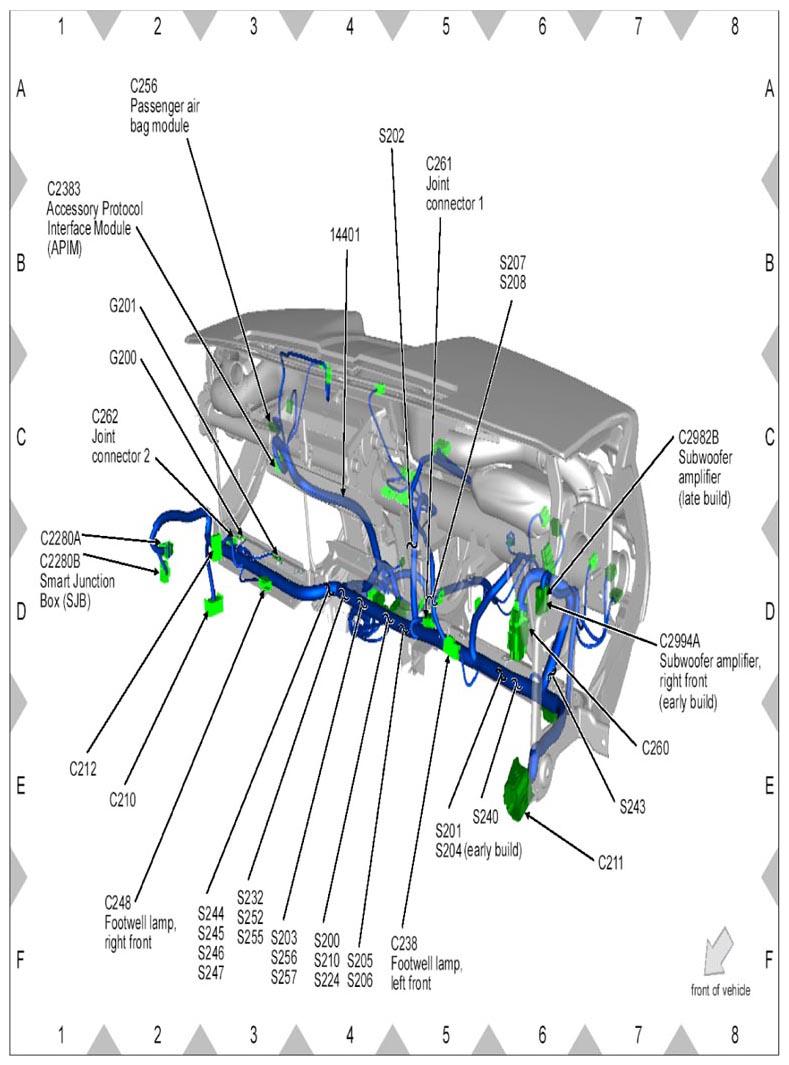

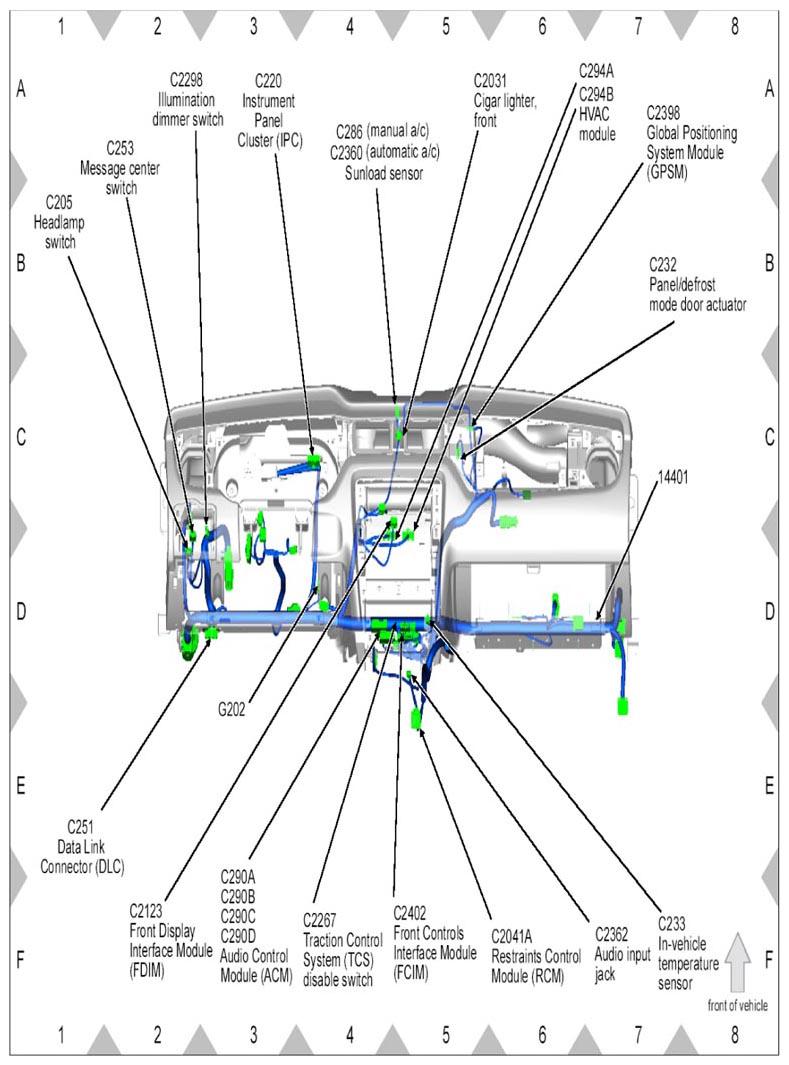

Fig 13: Identifying Dash Panel Wiring Harness Connectors Location (1 Of 2)
G07881269Courtesy of FORD MOTOR CO.
Fig 14: Identifying Dash Panel Wiring Harness Connectors Location (2 Of 2)
G07881270Courtesy of FORD MOTOR CO.

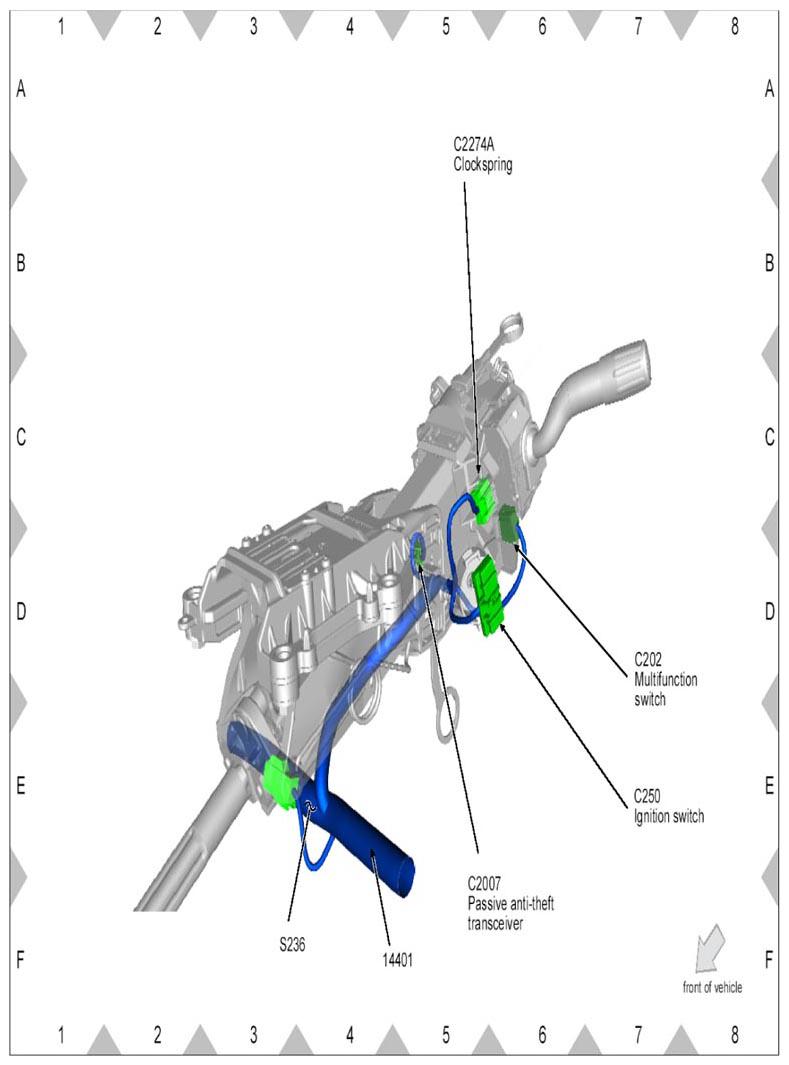

Fig 15: Identifying Steering Column Wiring Harness Connectors Location
G07881271Courtesy of FORD MOTOR CO.

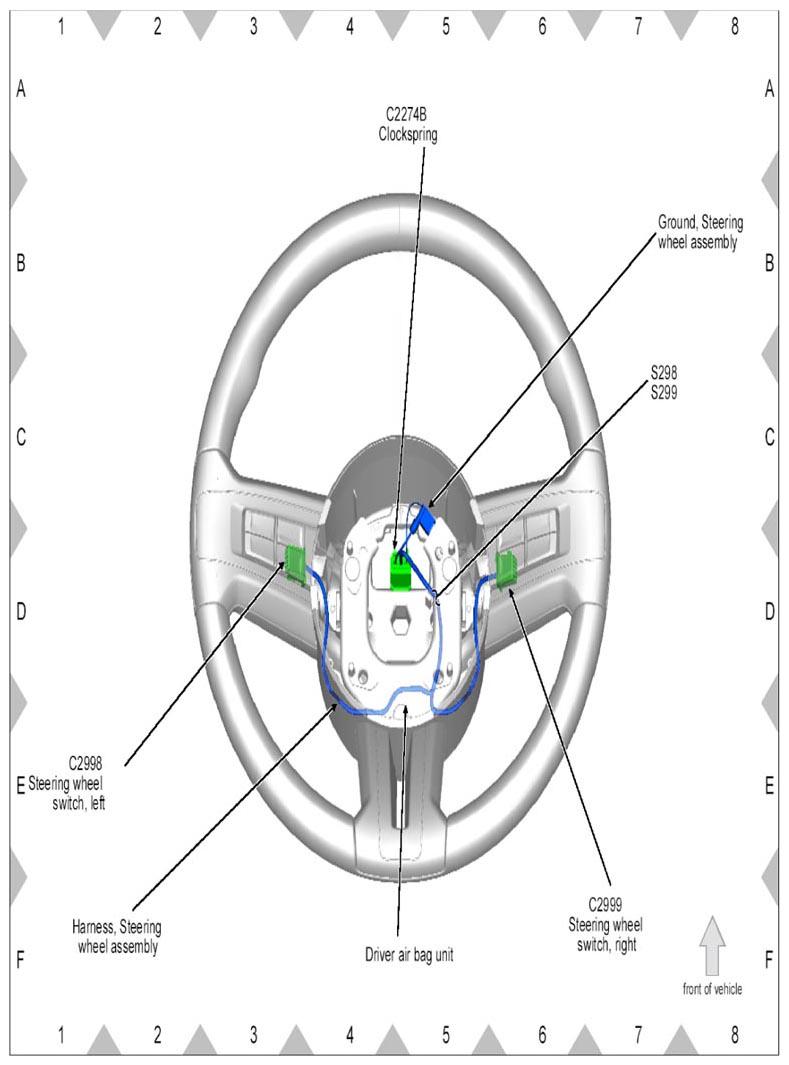

Fig 16: Identifying Steering Wheel Wiring Harness Connectors Location
G07881272Courtesy of FORD MOTOR CO.

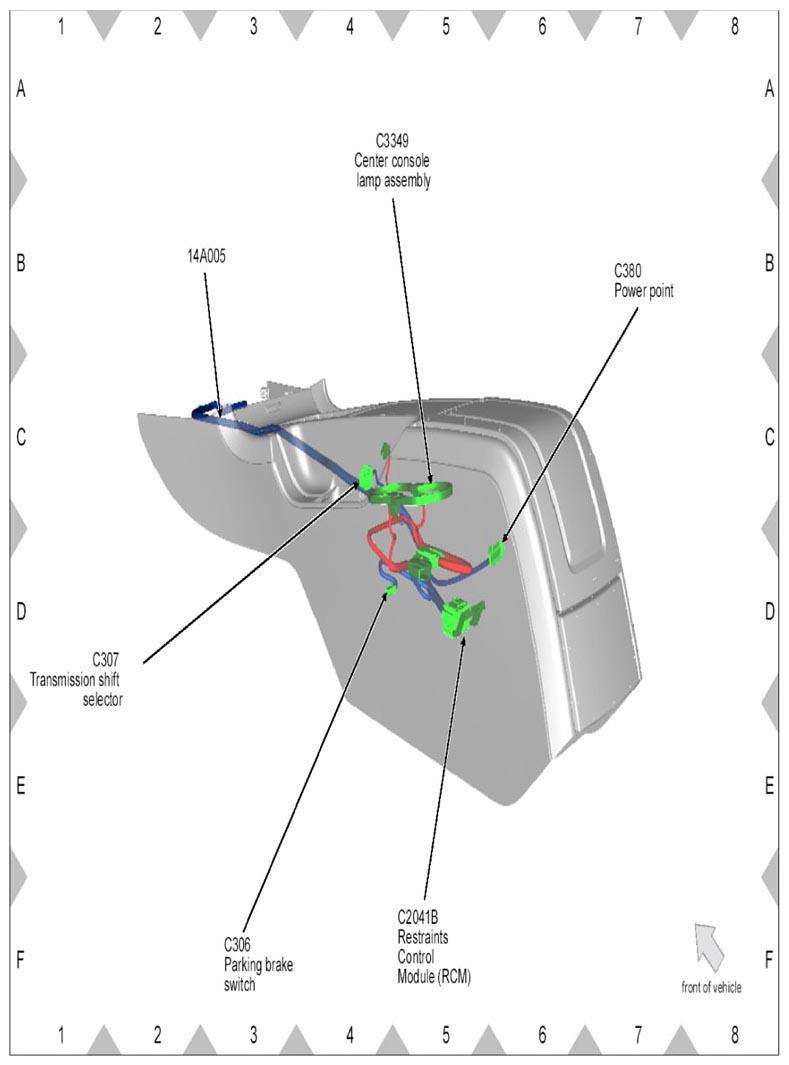

Fig 17: Identifying Center Console Wiring Harness Connectors Location
G07881273Courtesy of FORD MOTOR CO.

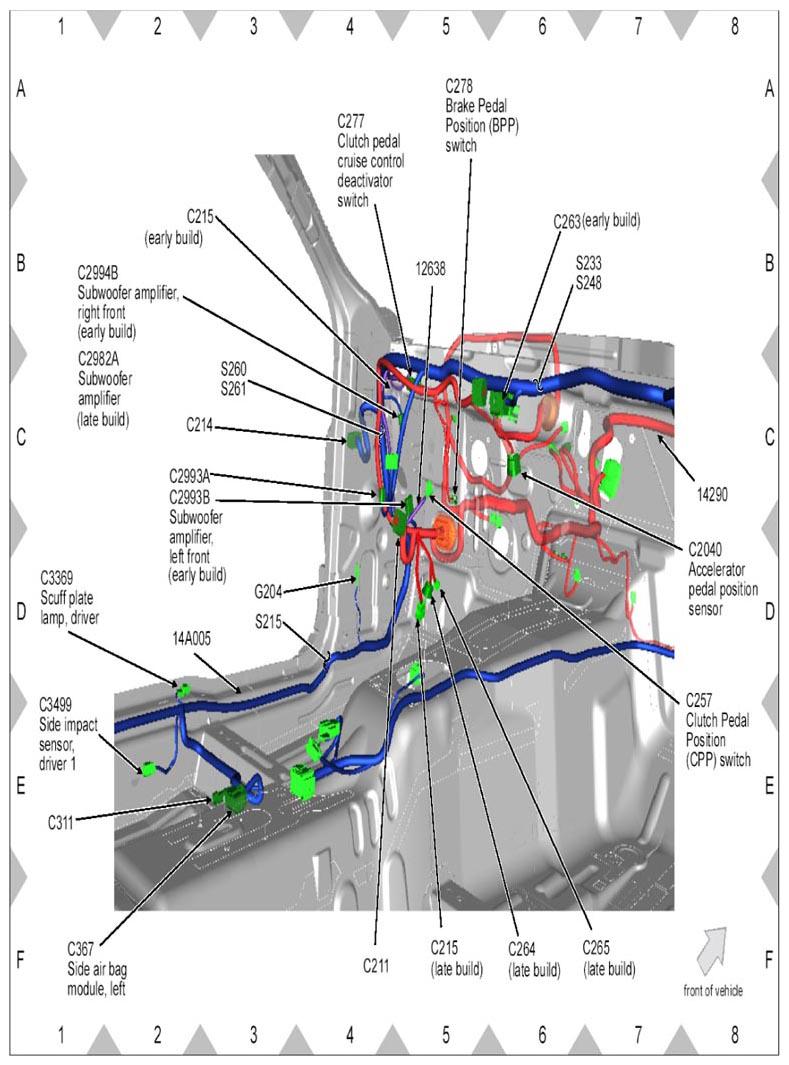

Fig 18: Identifying Front Compartment Wiring Harness Connectors Location (LH)
G07881274Courtesy of FORD MOTOR CO.

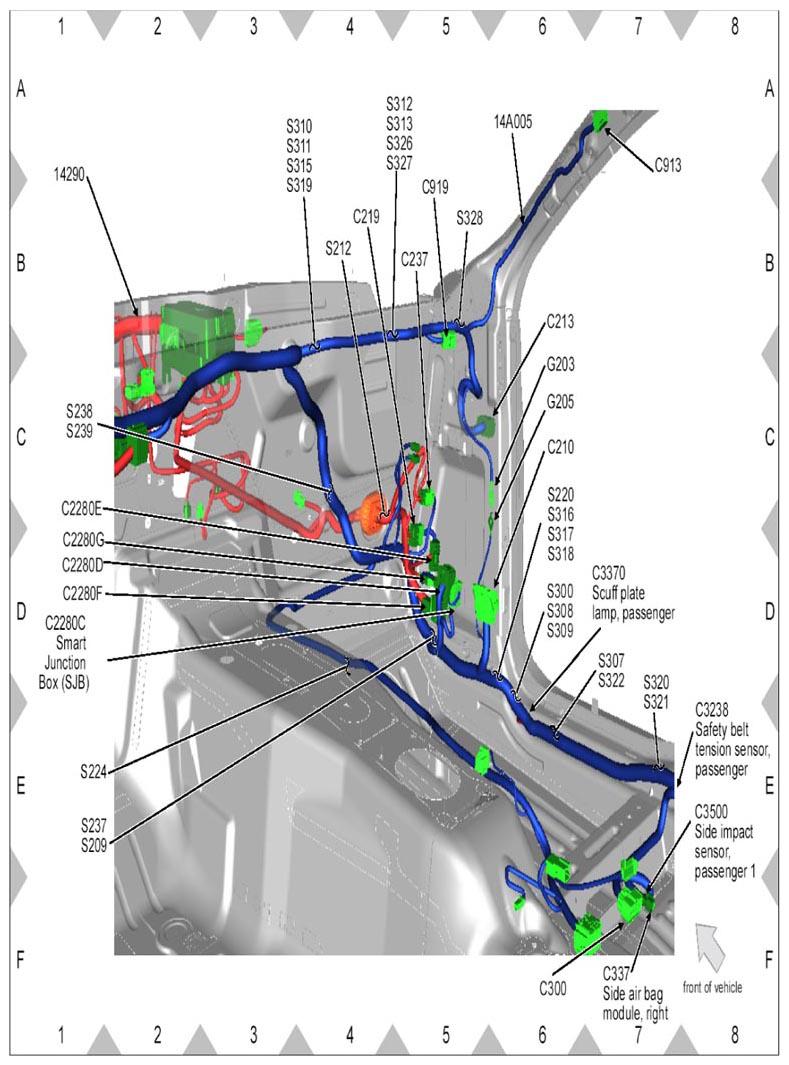

Fig 19: Identifying Front Compartment Wiring Harness Connectors Location (RH)
G07881275Courtesy of FORD MOTOR CO.

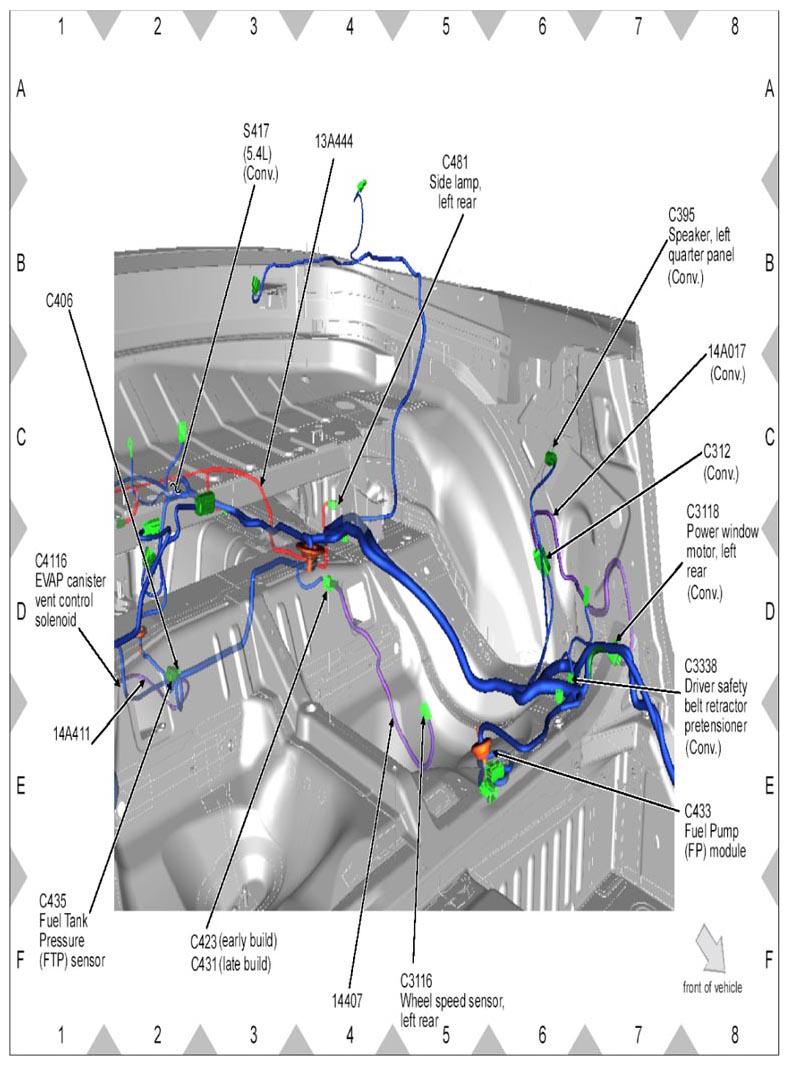

Fig 20: Identifying LH Passenger Side Wiring Harness Connectors Location
G07881276Courtesy of FORD MOTOR CO.
Fig 21: Identifying RH Passenger Side Wiring Harness Connectors Location
G07881277Courtesy of FORD MOTOR CO.

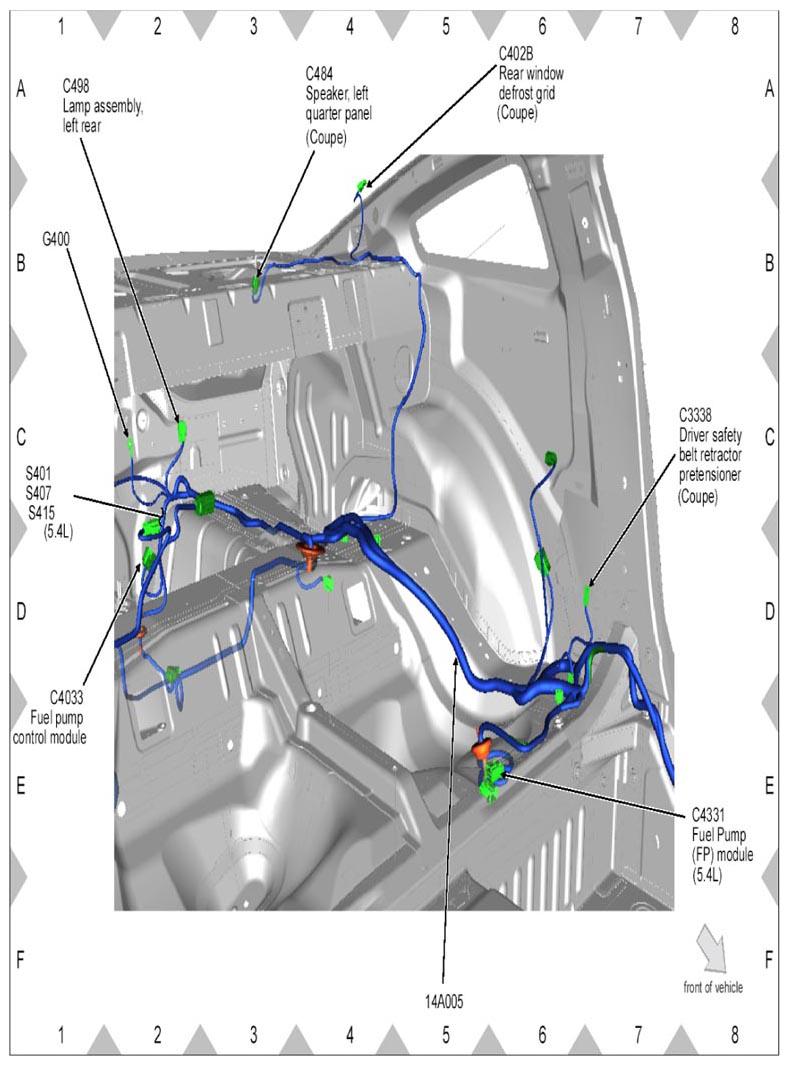

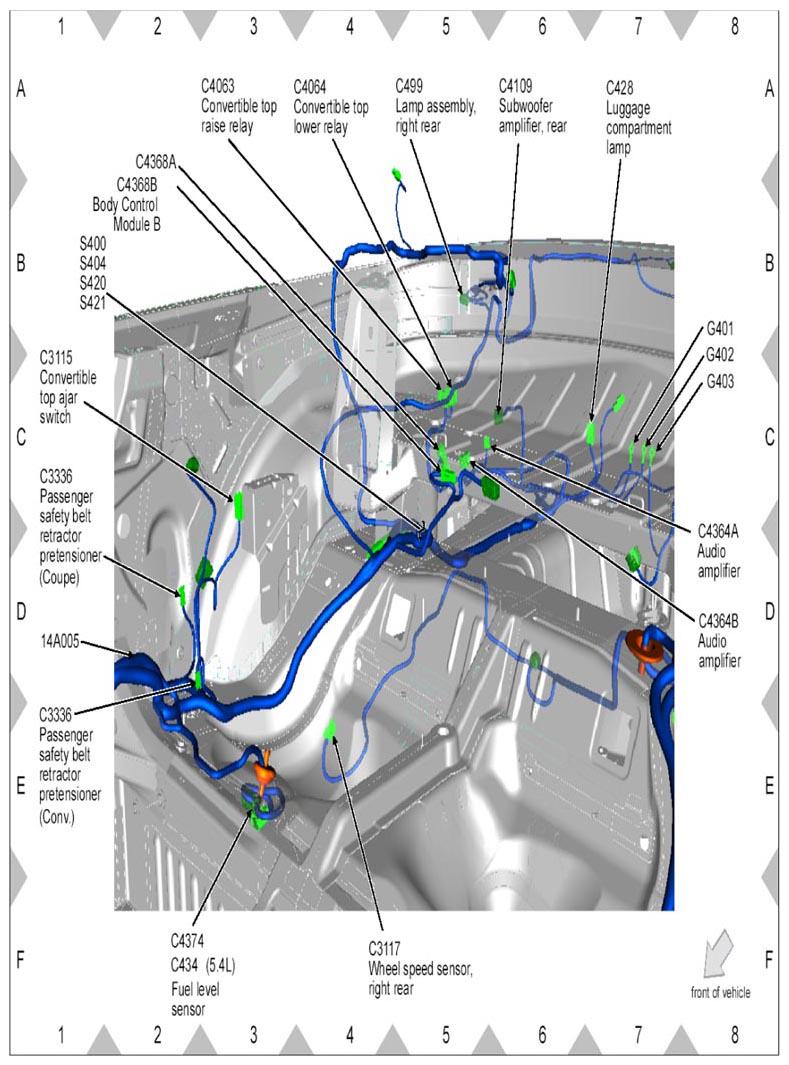

Fig 22: Identifying Passenger Compartment Wiring Harness Connectors Location (1 Of 2)
G07881278Courtesy of FORD MOTOR CO.

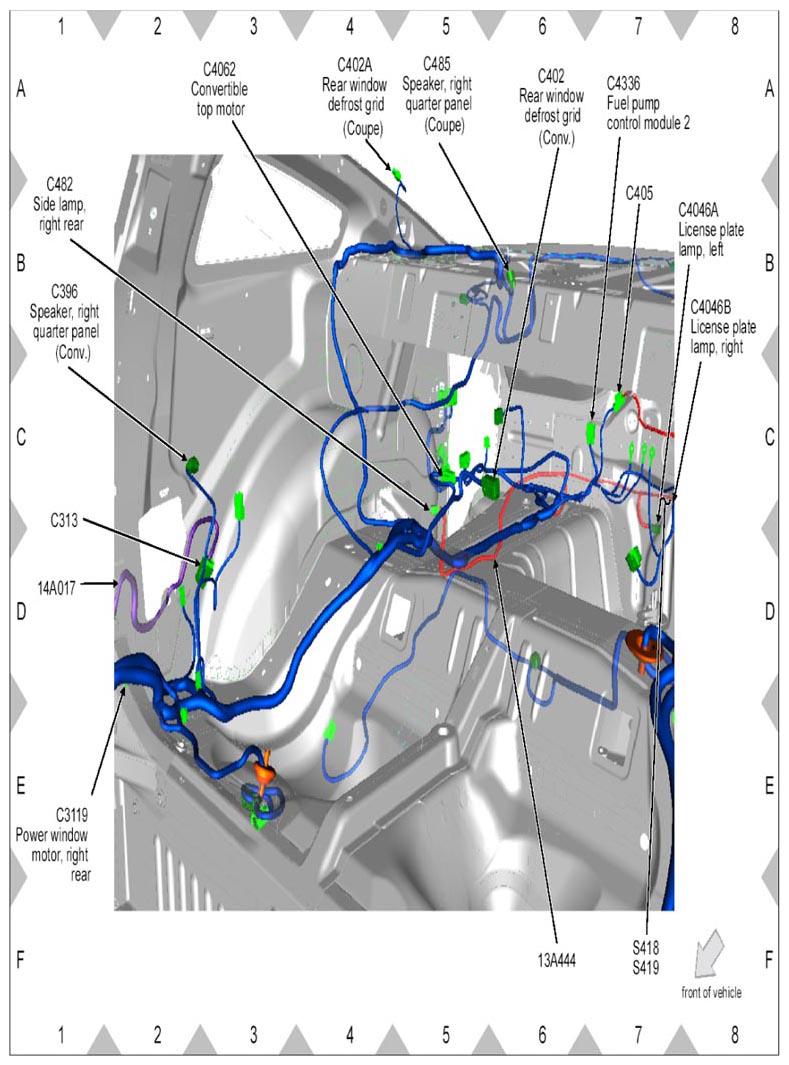

Fig 23: Identifying Passenger Compartment Wiring Harness Connectors Location (2 Of 2)
G07881279Courtesy of FORD MOTOR CO.

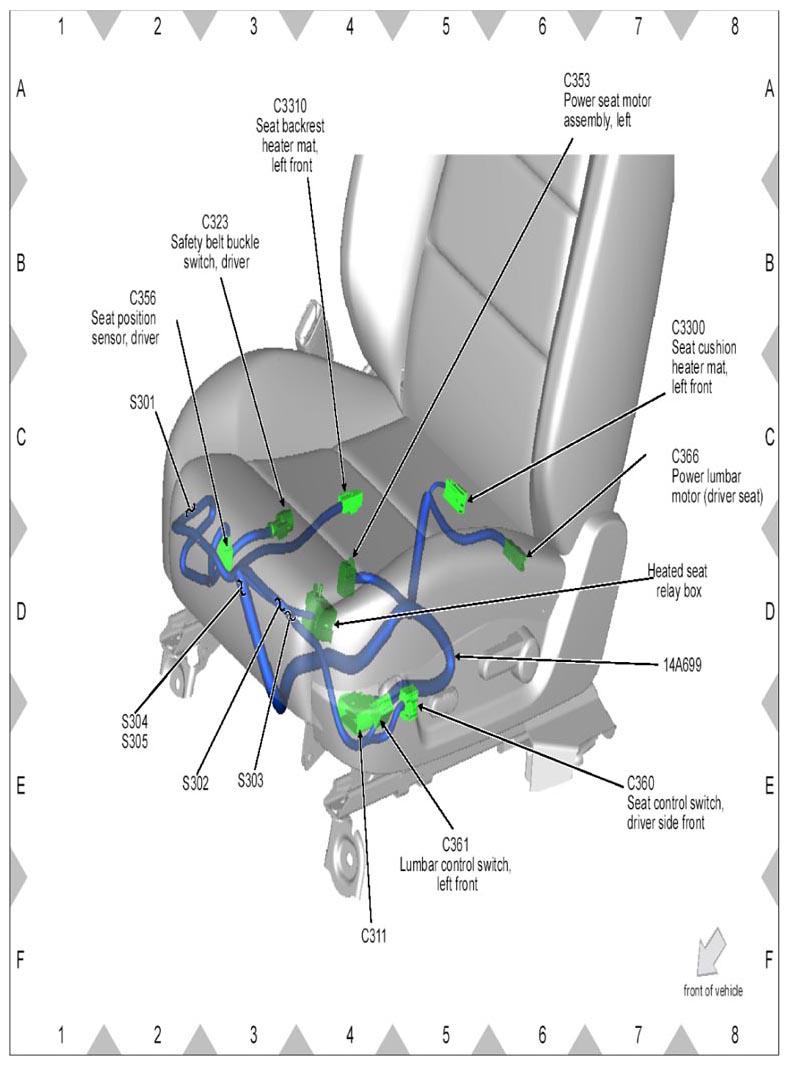

Fig 24: Identifying Driver Seat Wiring Harness Connectors Location
G07881280Courtesy of FORD MOTOR CO.

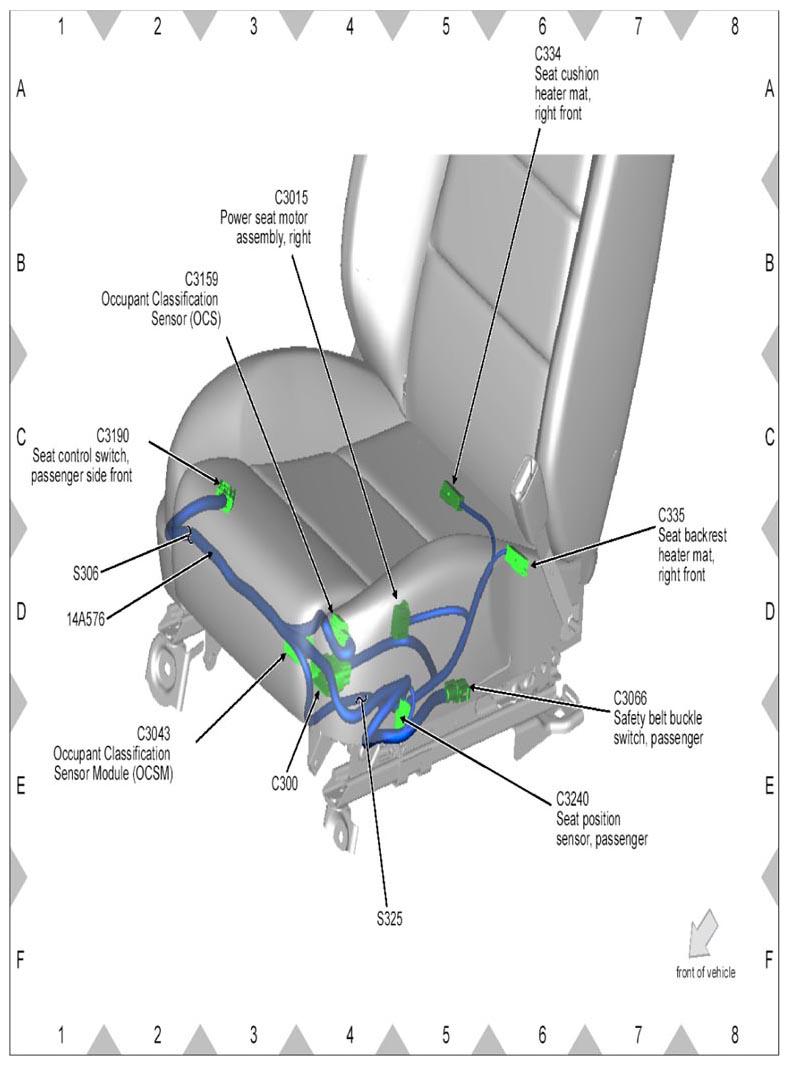

Fig 25: Identifying Passenger Seat Wiring Harness Connectors Location
G07881281Courtesy of FORD MOTOR CO.

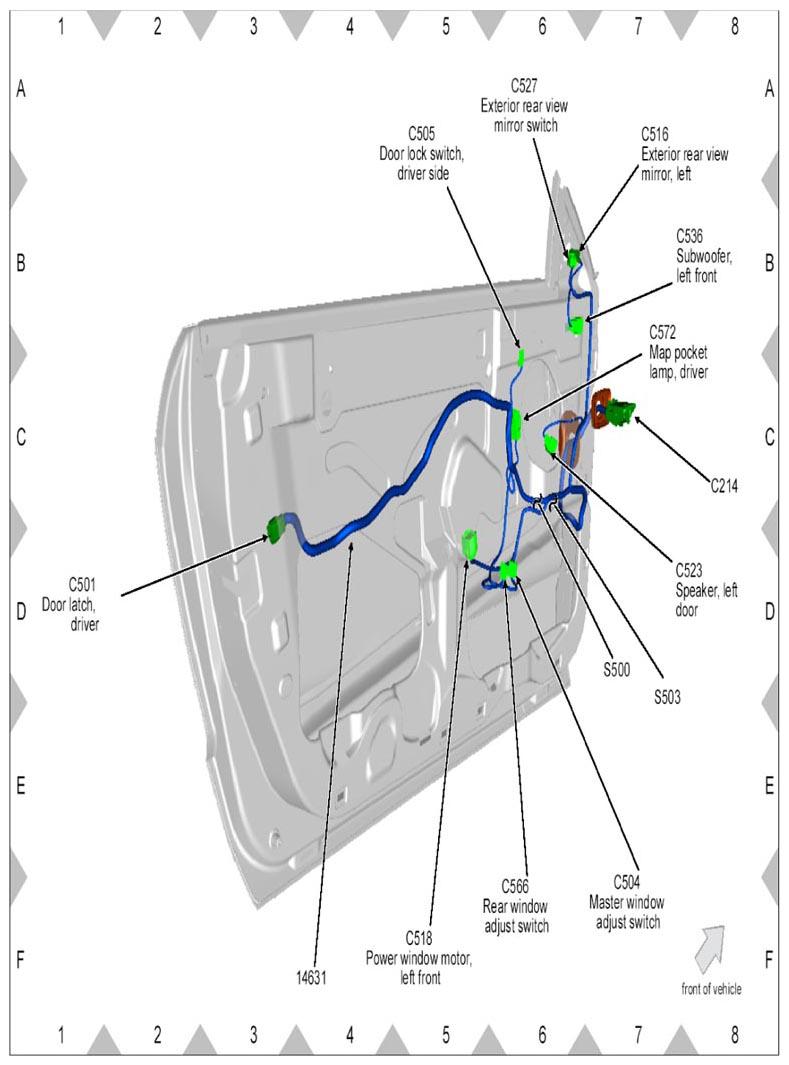

Fig 26: Identifying LH Driver Side Wiring Harness Connectors Location
G07881282Courtesy of FORD MOTOR CO.

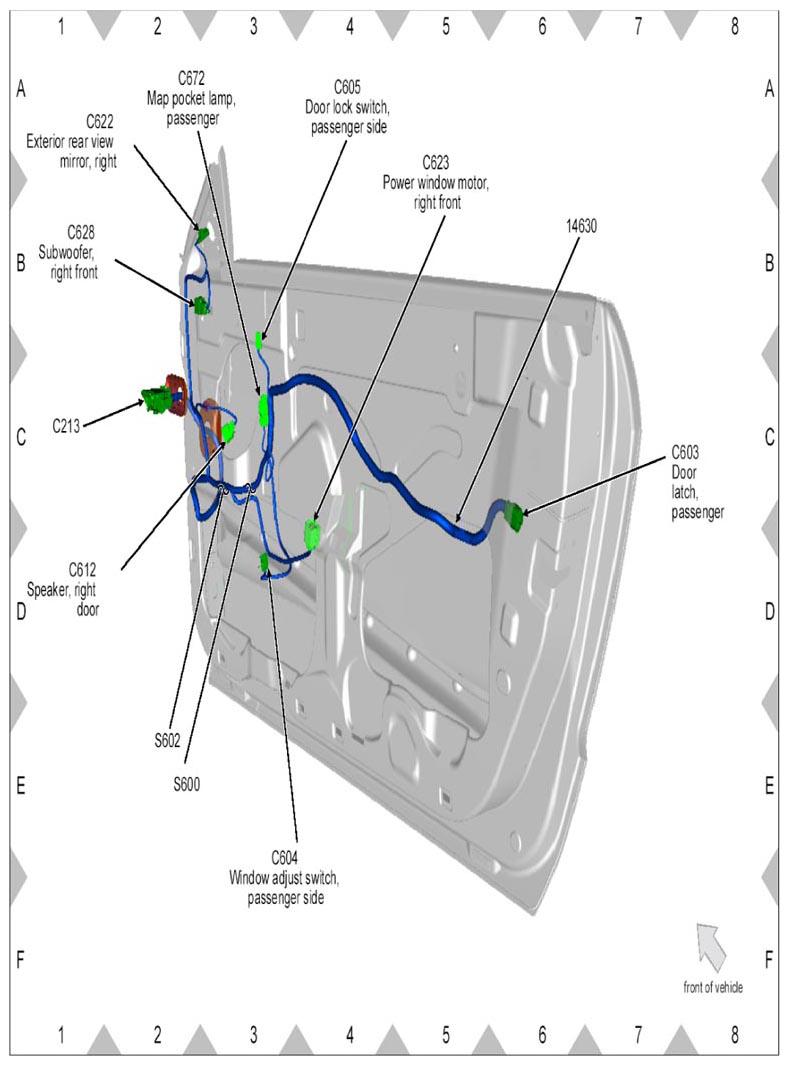

Fig 27: Identifying RH Driver Side Wiring Harness Connectors Location
G07881283Courtesy of FORD MOTOR CO.

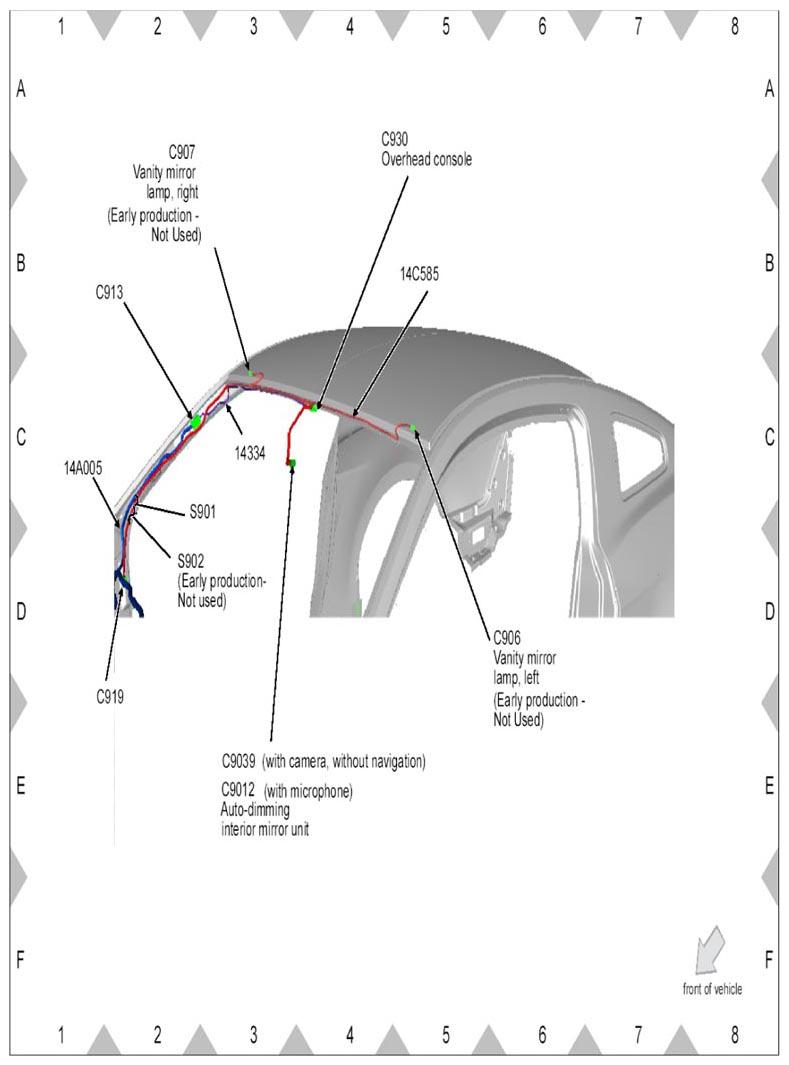

Fig 28: Identifying Roof Panel Wiring Harness Connectors Location (1 Of 3)
G07881284Courtesy of FORD MOTOR CO.
Fig 29: Identifying Roof Panel Wiring Harness Connectors Location (2 Of 3)
G07881285Courtesy of FORD MOTOR CO.

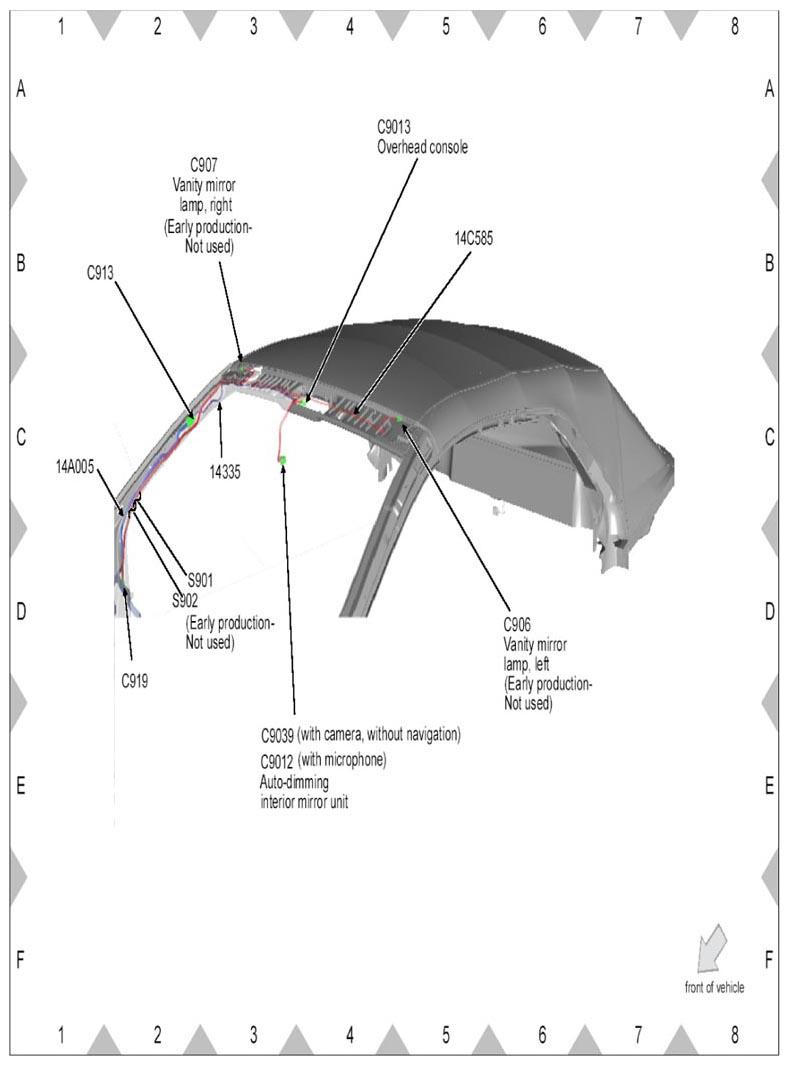

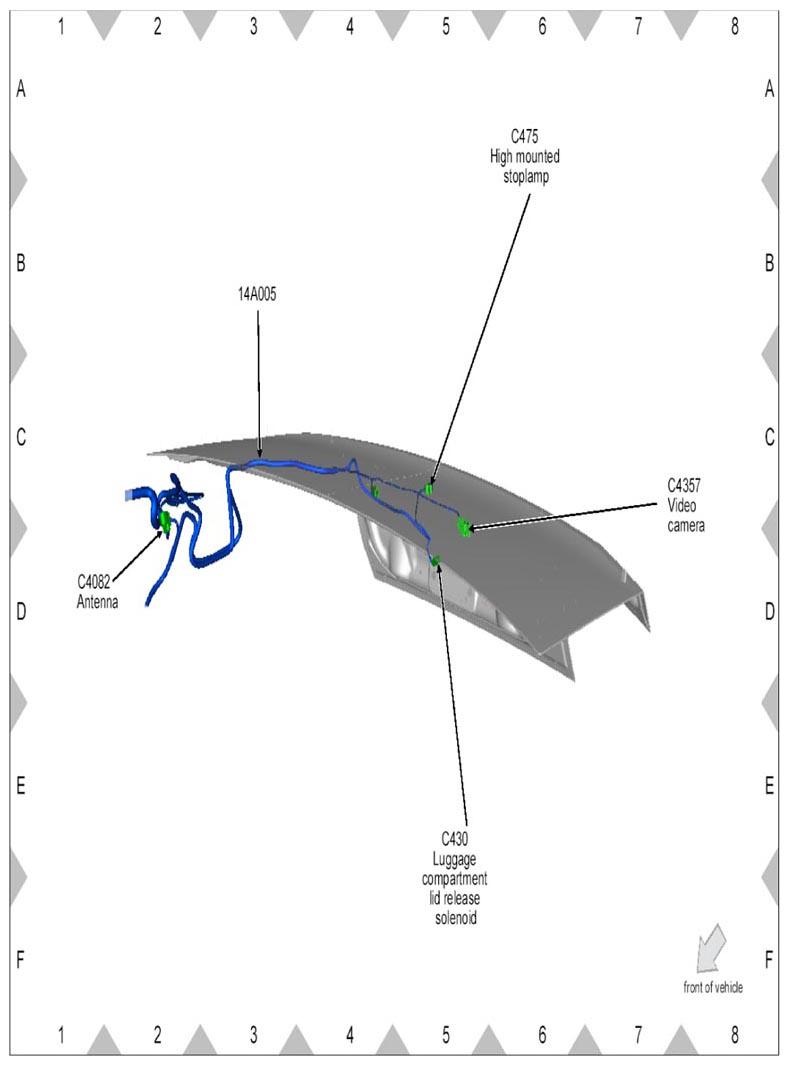

Fig 30: Identifying Roof Panel Wiring Harness Connectors Location (3 Of 3)
G07881286Courtesy of FORD MOTOR CO.

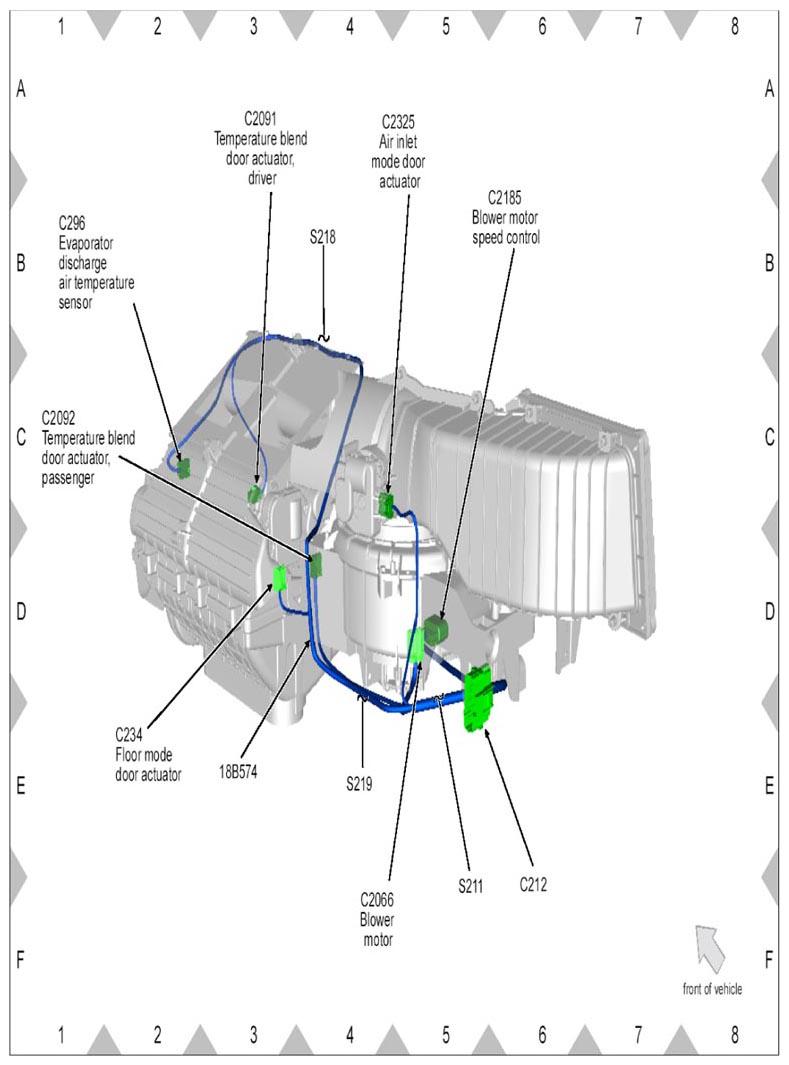

Fig 31: Identifying HVAC Wiring Harness Connectors Location
G07881287Courtesy of FORD MOTOR CO.
