Special Tool(s)
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESCRIPTION TABLE
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |

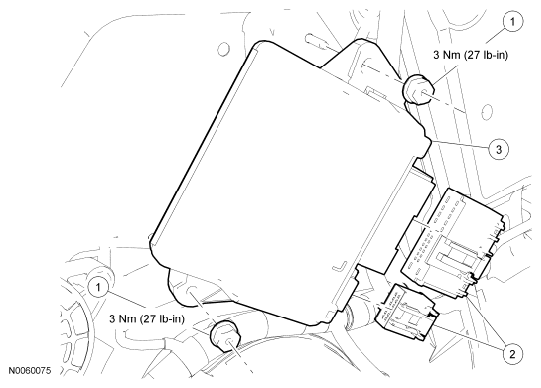

PARTS DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Driver Door Module (DDM) nuts (2 required) |
| 2 | - | DDM electrical connectors (part of 14631) |
| 3 | 13C791 | DDM |
