Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

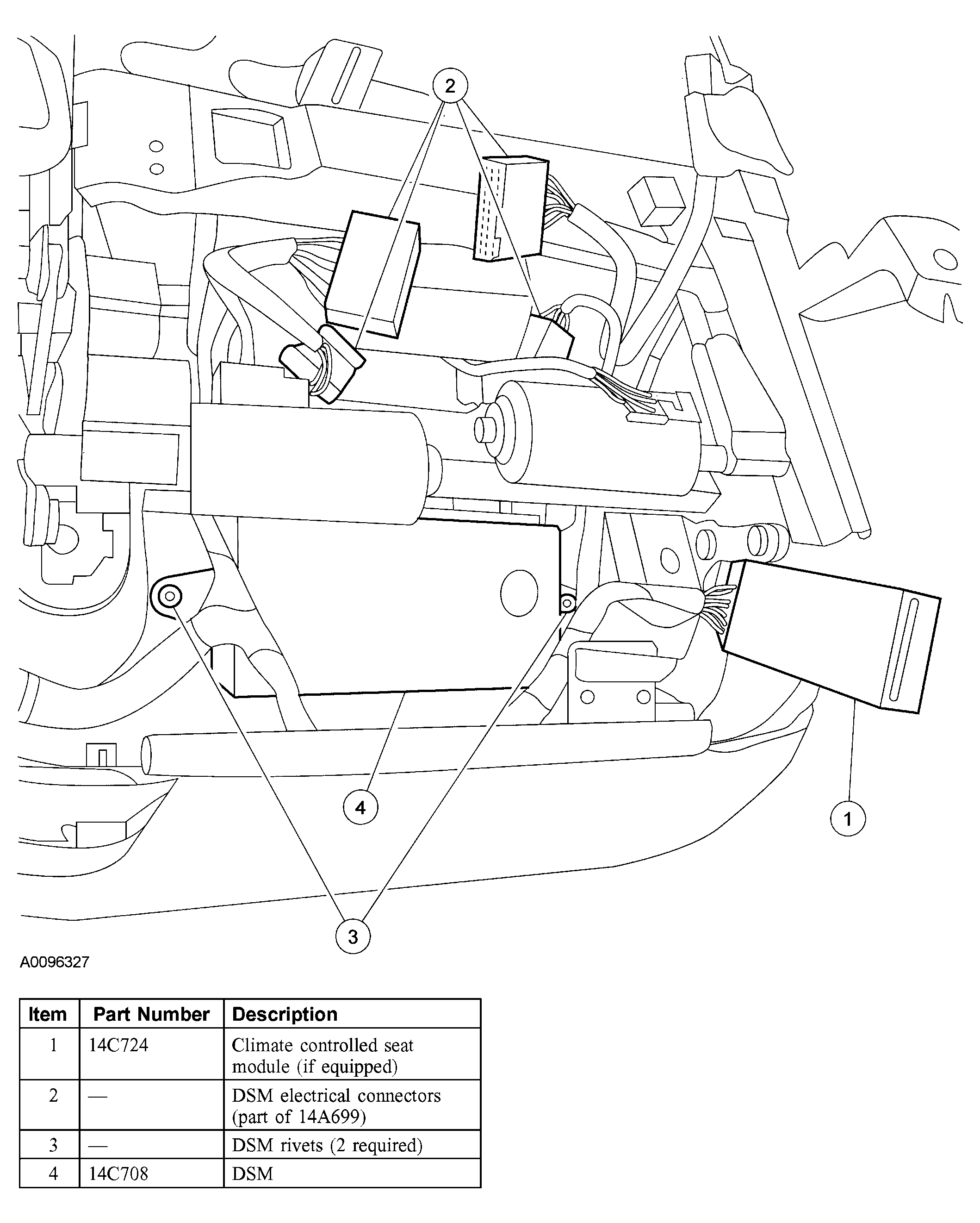

Fig 1: Removing/Installing Driver Seat Module (DSM) Components
G03993028Courtesy of FORD MOTOR CO.
  1. Remove the driver seat. For additional information, refer to SEATING .
  2. If equipped, position the climate controlled seat module aside.
  3. Disconnect the DSM electrical connectors.
  4. Remove the 2 rivets and the DSM.
  5. To install, reverse the removal procedure.
    • Use the special tool to install the 2 rivets.
