Multifunction Switch, Wiper/Washer Portion - Front: Schematic

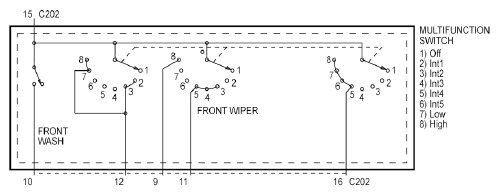

Fig 1: Multifunction Switch, Wiper/Washer Portion (Front) - Schematic
G07336458Courtesy of FORD MOTOR CO.
