Smart Junction Box (SJB): Notes

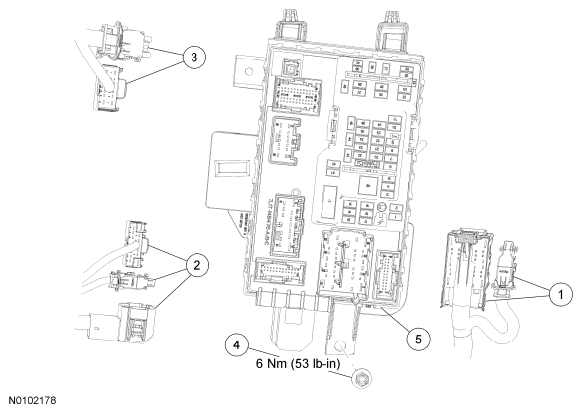

SMART JUNCTION BOX (SJB) PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Smart Junction Box (SJB) Electrical connectors (part of 14A005) (2 required) |
| 2 | - | SJB Electrical connectors (part of 14290) (3 required) |
| 3 | - | SJB Electrical connectors (part of 14401) (2 required) |
| 4 | W706287-S | SJB nut |
| 5 | 14B476 | SJB |
