Occupant Classification Sensor - Original Equipment: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) | software with appropriate hardware, or equivalent scan tool |
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Seat cushion assembly (part of 603B02) |
| 2 | - | Occupant Classification Sensor (OCS) pressure sensor and Occupant Classification System Module (OCSM) (part of 603B02) |
| 3 | - | Seat cushion bolts |

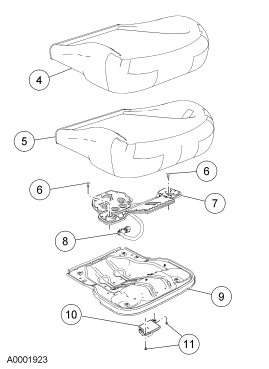

Fig 2: Exploded View Of Occupant Classification Sensor - Original Equipment - (2 Of 2) With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 4 | 62900 | Seat cushion trim cover |
| 5 | - | Seat cushion foam pad (part of 603B02) |
| 6 | - | Pin-type retainers (part of 603B02 |
| 7 | - | Occupant Classification Sensor (OCS) bladder (part of 603B02) |
| 8 | - | Pressure sensor (part of 603B02) |
| 9 | - | Seat cushion pan |
| 10 | - | Occupant Classification System Module (OCSM) (part of 603B02) |
| 11 | 391950 | OCSM rivets |
