Front Disc Brake System - Exploded View: 5.4L
WARNING: This page is about a different car, the 2010 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RH shown in illustration, LH similar

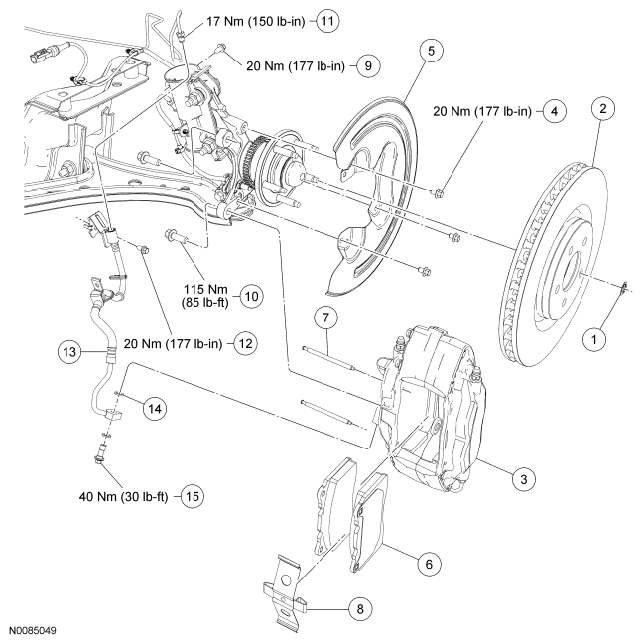

ITEM DESCRIPTION REFERENCE
| Item | Part Number | Description |
|---|---|---|
| 1 | 383609 | Retaining nut |
| 2 | 1125 | Brake disc |
| 3 | 2B220 RH/2B221 LH | Brake caliper |
| 4 | W500020 | Brake disc shield bolt (3 required) |
| 5 | 2K004 | Brake disc shield |
| 6 | 2001 | Brake pad (2 required) |
| 7 | - | Brake pad mounting pin (2 required) (part of 2B164) |
| 8 | - | Spring retainer clip (part of 2K583) |
| 9 | N802191 | Brake hose-to-strut bolt |
| 10 | W710233 | Brake caliper bolt (2 required) |
| 11 | - | Brake tube fitting (part of 2C296) |
| 12 | N802191 | Brake flexible hose bracket bolt |
| 13 | 2078 RH/2B557 LH | Brake flexible hose |
| 14 | W712362 | Copper washer (2 required) |
| 15 | W712275 | Brake caliper flow bolt |
- For additional information, Refer to appropriate procedure(s).
NOTE:
A revised part, with the same base part number, has been released for the RH brake hose. When installing a new RH brake hose, position the anti-rotation tab on the mounting bracket toward the front of the vehicle and install the bolt with the head toward the rear of the vehicle.
