Pinpoint Test F: The Flash-to-Pass Feature is Inoperative: Testing

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

F1 CHECK HIGH BEAM OPERATION
- Place the headlamp switch in the HEADLAMPS ON position.
- Place the multifunction switch in the HIGH BEAM position.
- Do the high beams operate correctly?
- Yes : GO to F2.
- No : GO to PINPOINT TEST B .
F2 CHECK CIRCUIT 196 (DB/OG) FOR AN OPEN
- Key in OFF position.
- Disconnect: SJB
- Disconnect: Multifunction Switch C202a.
- Measure the resistance between the multifunction switch C202a-9, circuit 196 (DB/OG), harness side and the SJB C2280d-13, circuit 196 (DB/OG), harness side.

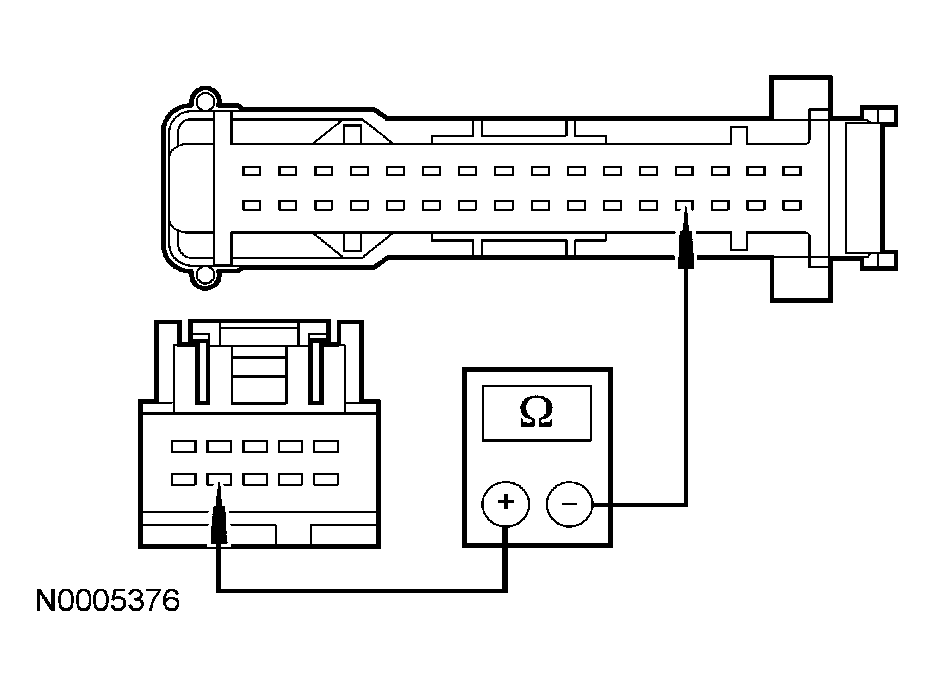

  Fig 1: Checking Circuit 196 (DB/OG) For Open
  Courtesy of FORD MOTOR CO.
- Is the resistance less than 5 ohms?
- Yes : GO to F3.
- No : REPAIR the circuit. TEST the system for normal operation.
F3 CHECK THE MULTIFUNCTION SWITCH
- Connect: Multifunction Switch C202a.
- While placing the multifunction switch in the FLASH-TO-PASS position, measure the resistance between the SJB C2280d-13, circuit 196 (DB/OG), harness side and ground.

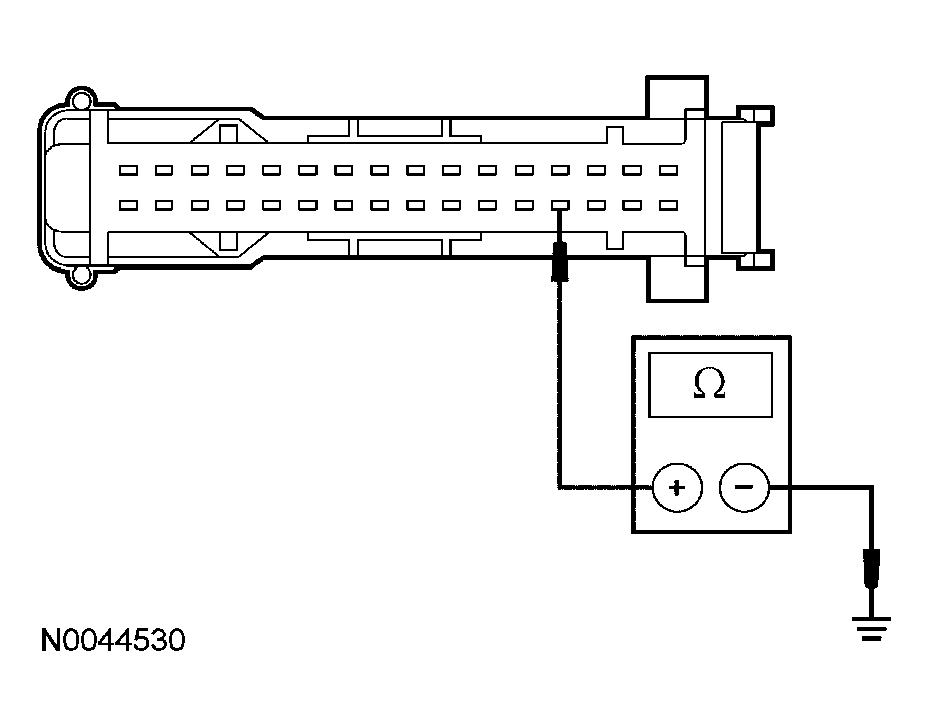

  Fig 2: Checking Multifunction Switch
  Courtesy of FORD MOTOR CO.
- Is the resistance less than 5 ohms?
- Yes : GO to F4.
- No : INSTALL a new multifunction switch. REFER to STEERING COLUMN SWITCHES . TEST the system for normal operation.
F4 CHECK FOR CORRECT SJB OPERATION
- Disconnect all the SJB connectors.
- Check for:
  - corrosion
  - pushed-out pins
- Connect all the SJB connectors and make sure they seat correctly.
- Operate the system and verify the concern is still present.
- Is the concern still present?
- Yes : INSTALL a new SJB. REFER to MULTIFUNCTION ELECTRONIC MODULES . TEST the system for normal operation.
- No : The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector.
