Electronic Throttle Control Module Connectors - C1449

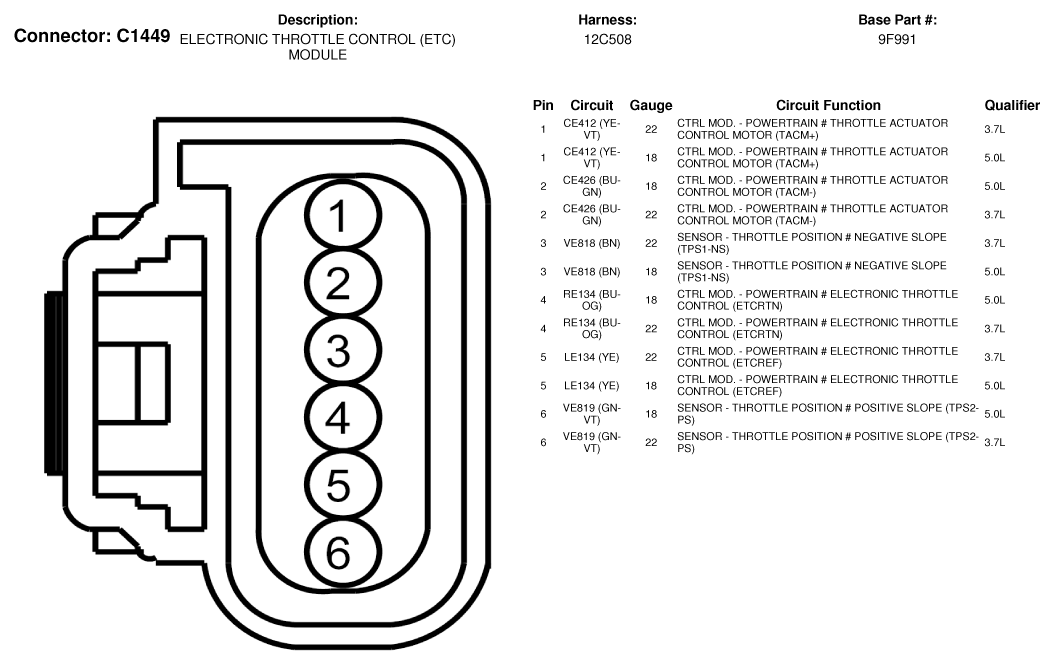

Fig 1: Electronic Throttle Control Module Connector End View (C1449)
G07336683Courtesy of FORD MOTOR CO.
