Fuel Pump Control Module 2 Connector - C4336

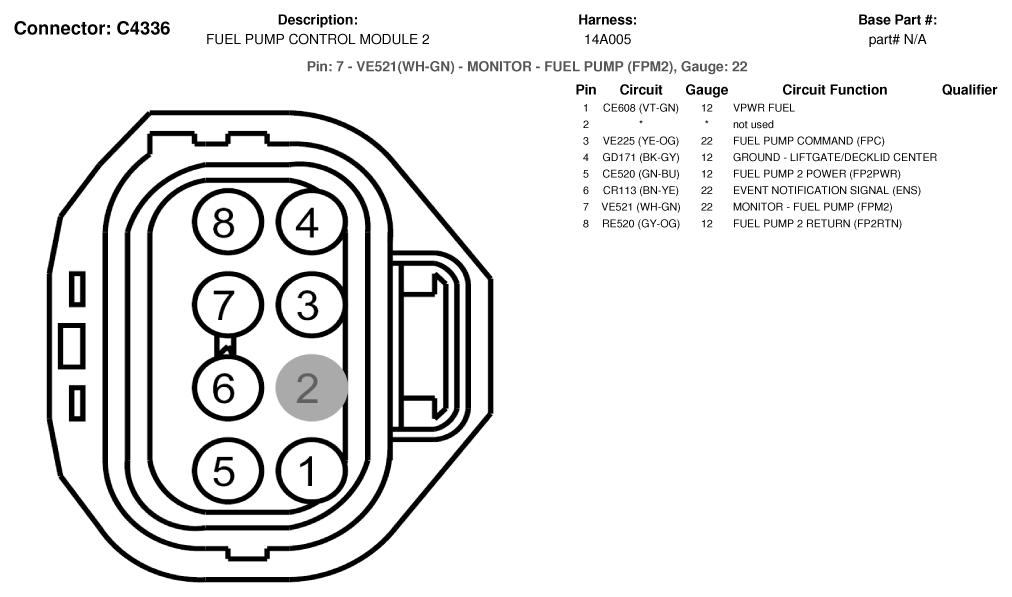

Fig 1: Fuel Pump Control Module 2 Connector End View (C4336)
Courtesy of FORD MOTOR CO.
