PINPOINT TEST QA: Unable to Activate Self-Test/Network Communication Error: Introduction

This pinpoint test is intended to diagnose the following:

• unable to communicate with powertrain control module (PCM)
• unable to activate the PCM self-test
• incorrect self-test procedure
• harness circuits: ISP-R, PCMRC, PWRGND and VPWR
  Fig 1: Identifying Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector

  Courtesy of FORD MOTOR CO.

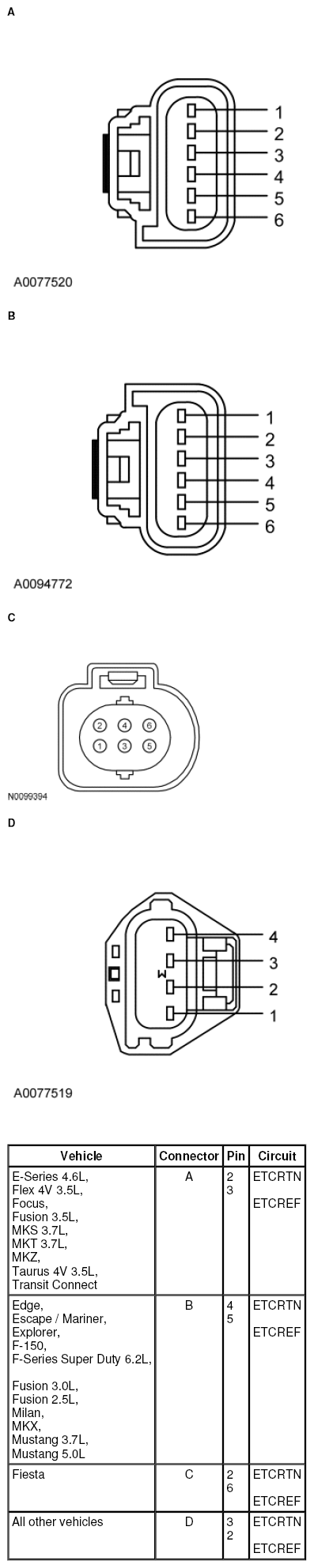

Fig 2: Identifying Throttle Position (TP) Sensor Connector

Courtesy of FORD MOTOR CO.

Powertrain Control Module (PCM) Connector

For PCM connector views or reference values, refer to REFERENCE VALUES .
