Global Positioning System Module: Service and Repair

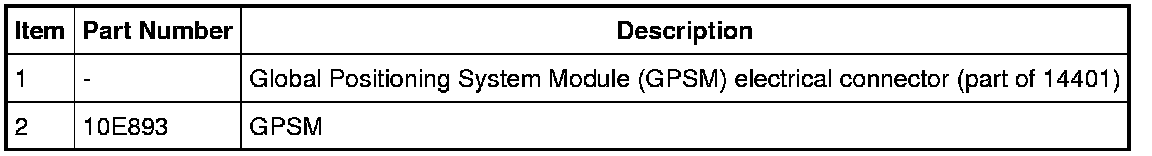

Global Positioning System Module (GPSM)

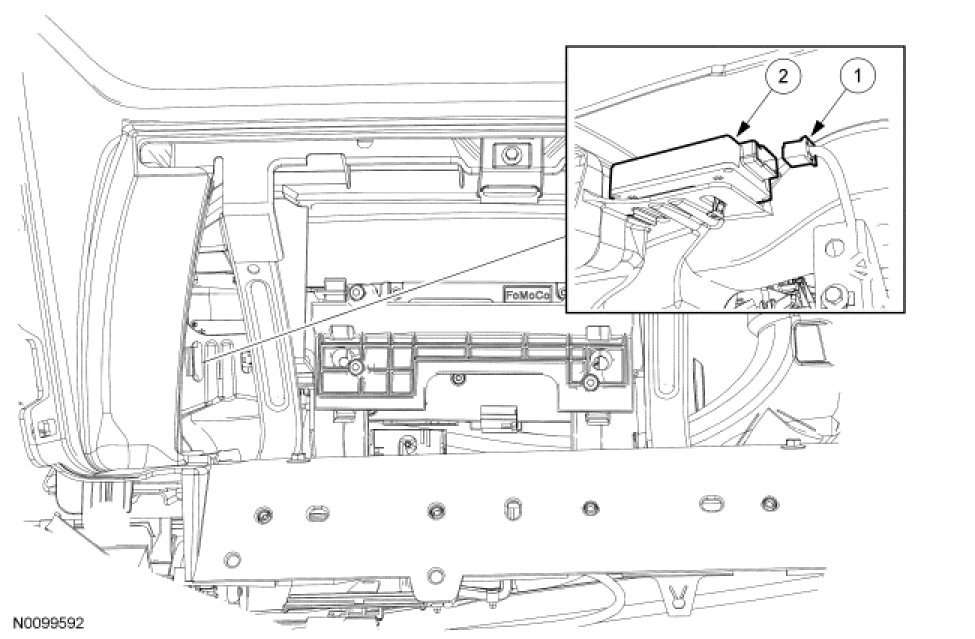

NOTE: The view is shown from under the instrument panel.











Removal and Installation

1. Lower the glove compartment door completely.

2. NOTE: The Global Positioning System Module (GPSM) can be accessed through the glove compartment opening.

Disconnect the GPSM electrical connector.

3. Remove the GPSM by pushing back on the locking tab.

4. To install, reverse the removal procedure.
