Exterior Lighting Module: Service and Repair

Ballast









Removal and Installation

1. Remove the headlamp assembly. For additional information, refer to Headlamp Assembly Service and Repair.

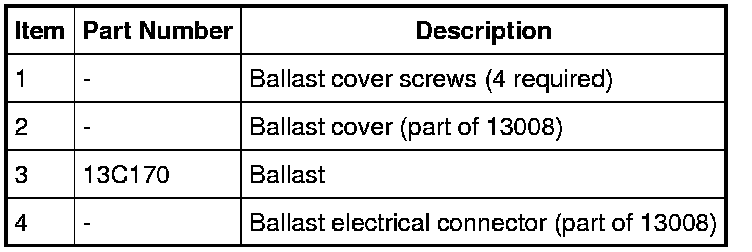

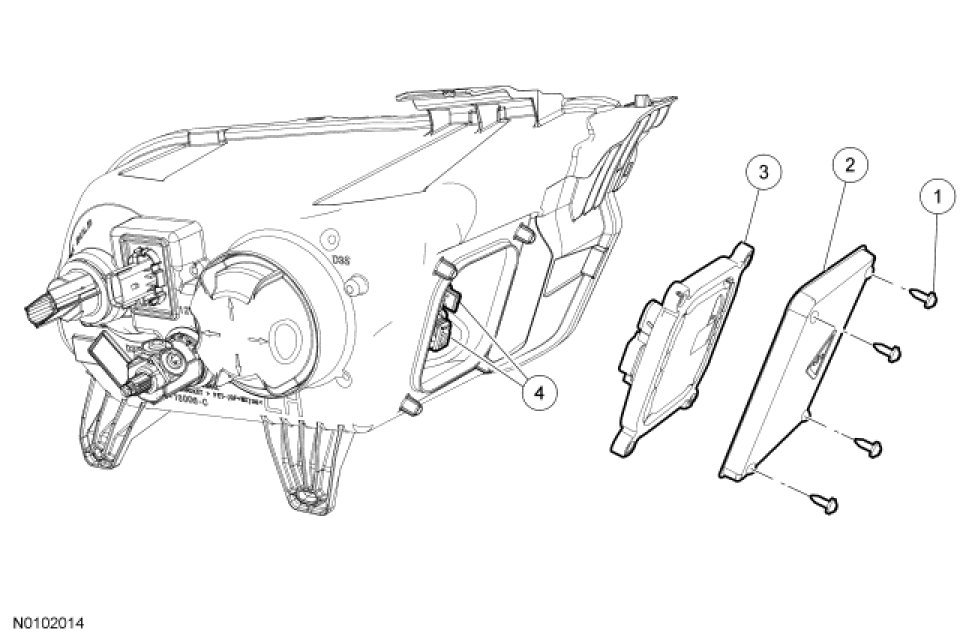

2. Remove the 4 screws and ballast cover.

3. Disconnect the electrical connectors and remove the ballast.

4. To install, reverse the removal procedure.
