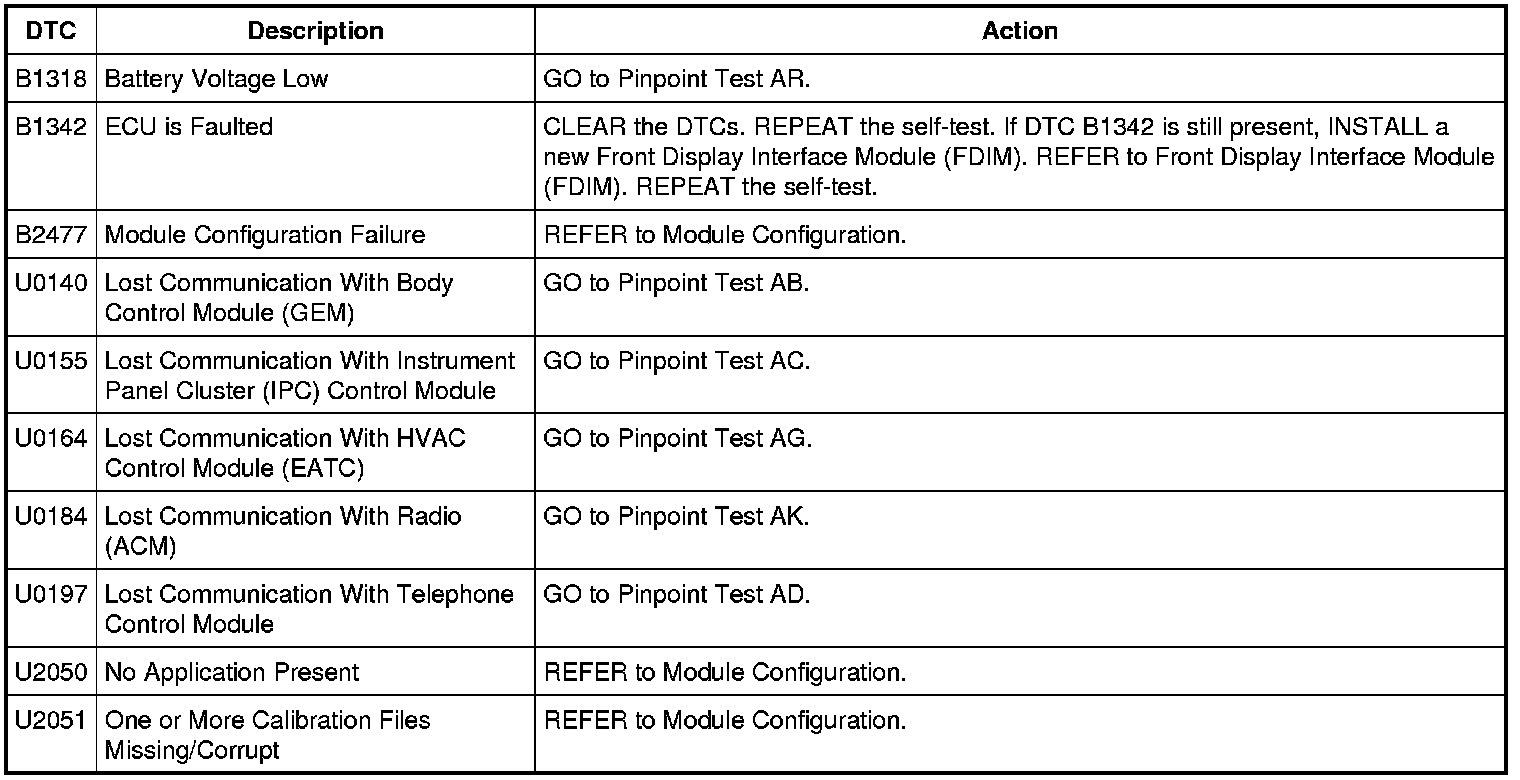

Front Display Interface Module (FDIM) DTC Chart - Without Navigation
Information and Entertainment System
DTC Charts
Front Display Interface Module (FDIM) DTC Chart - Without Navigation
