Powertrain Control Module (PCM): Notes

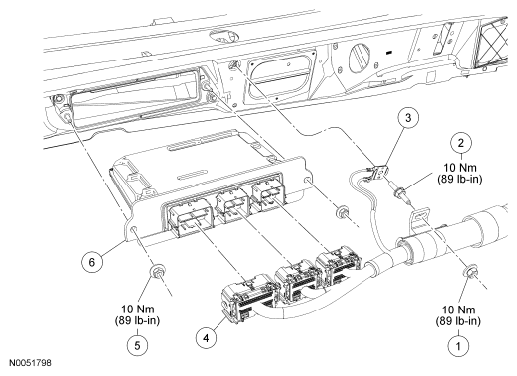

Fig 1: Exploded View Of Powertrain Control Module (PCM) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N621906	PCM wiring harness retainer nut
2	N806925	Ground wire stud bolt
3	-	Ground wire terminal (part of 12B637) (2 required)
4	14A464	PCM electrical connector (part of 12B637) (3 required)
5	N621906	PCM nuts
6	12A651	PCM
